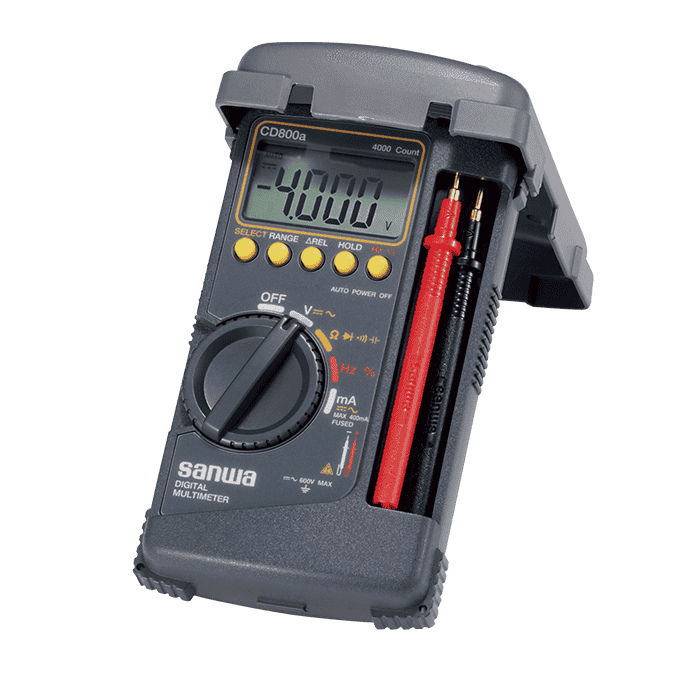

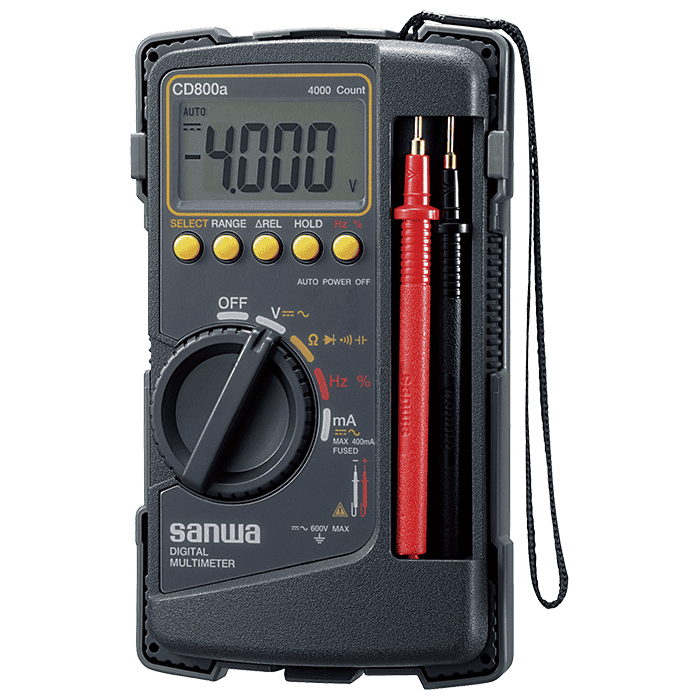

CD800A Digital Multimeters ALL-IN-ONE DMM

(0 Reviews)

Sold By:
Inhouse product

SANWA

Price:

SAR280.00 /Unit

Quantity:

(2 available)

Share:

Sold By

NCIEM

(0 customer reviews)

Top Selling Products

Testo 270 Cooking Oil Tester

SAR2,000.00
Hioki DT4222: Digital Multimeter

SAR390.00
HTA102 Sound level Meter with Calibrator

SAR4,000.00
Megger MIT1525 - 15kV Insulation Resistance Tester

SAR30,000.00
RD C.A.T4+ and GENNY4 Underground Radiodetection Cable & Pipe Locator

SAR15,000.00
Flir E8-XT InfraRed Camera with MSX & WiFi

SAR15,000.00

Description Downloads Reviews

KEY FEATURES:

4000 counts
Best accuracy 0.7％
Auto power off(30min.)(cancelable)
Low power ohm(input voltage 0.4V)at continuity range
Solid & portective body cover that can also be used as a tilt stand
Chip resister holder behind the body cover

SPECIFICATIONS:

CD800a Measuring range Best accuracy Resolution Input impedance
DCV 400m/4/40/400/600V ±(0.7%+3) 0.1mV 10M～100MΩ
ACV 4/40/400/600V ±(1.6%+5) 0.001V 10M～11MΩ
DCA 40m/400mA ±(2.2%+5) 0.01mA
ACA 40m/400mA ±(2.8%+5) 0.01mA
Resistance 400/4k/40k/400k/4M/40MΩ ±(1.2%+5) 0.1Ω
Capacitance 50n/500n/5μ/50μ/100μF ±(5%+10) 0.01nF
Frequency 5Hz～100kHz ±（0.5%+3)
Duty cycle 20%～80% ±（0.5%+5)
Continuity Buzzer sounds at between 10Ω and 120Ω Open voltage:Approx.0.4V
Diode test Open voltage:approx.1.5V
Display numeral display 4000
Sampling rate 3 times/sec.
Bandwidth 40Hz～400Hz
Fuse 0.5A/250V 1.5kA Φ5×20 Ceramic
Battery R6P(1.5V)x2
Battery life Approx.500h (manganese battery) at DCV range
Size/Mass H176×W104×D46mm/Approx.340g
Test lead length/Pin tip Length: approx. 0.7m/19mm
