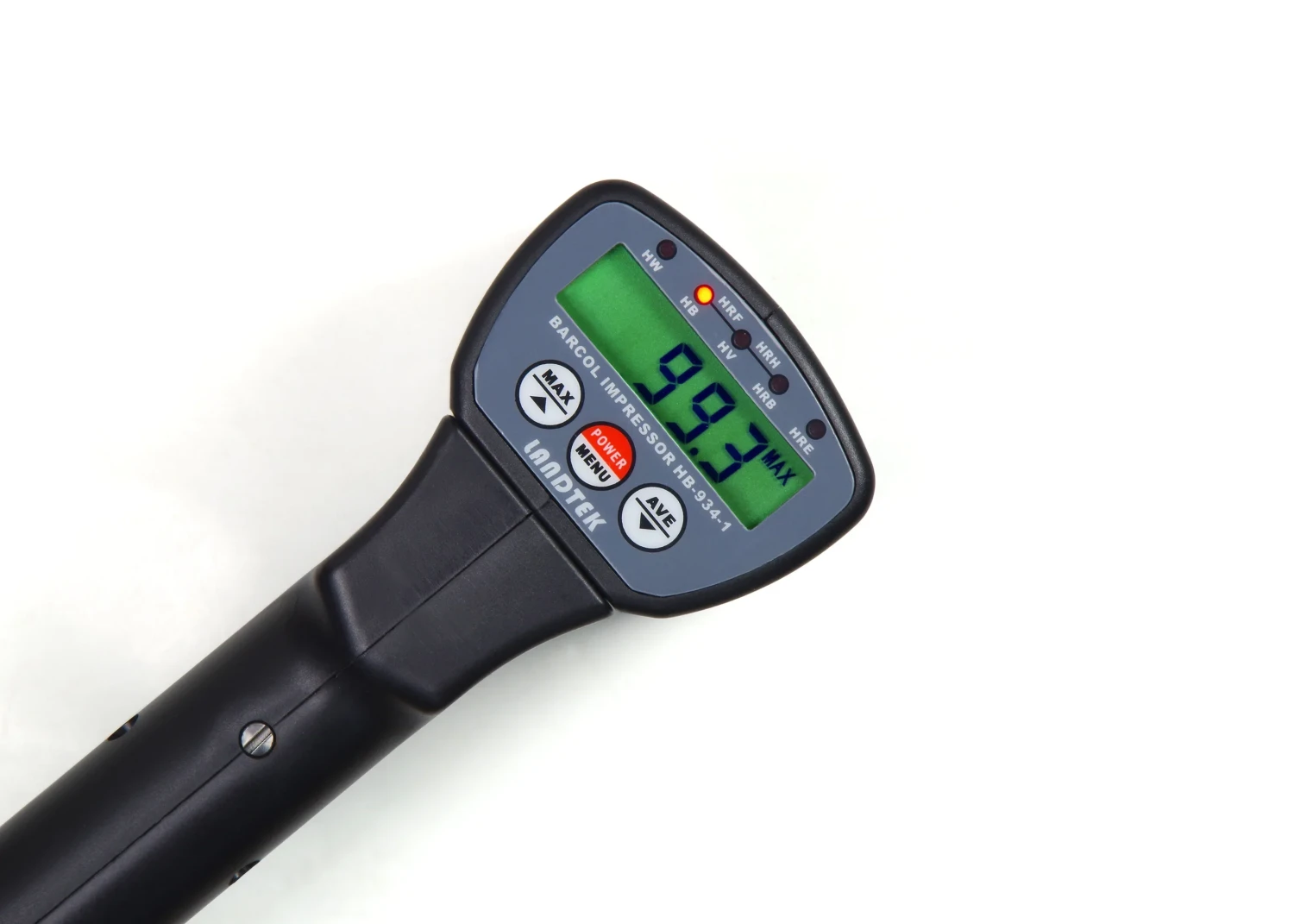

HM-934-1+ Digital Barcol Hardness Tester

Sold By

NCIEM

(0 customer reviews)

Top Selling Products

Testo 270 Cooking Oil Tester

SAR2,000.00
Hioki DT4222: Digital Multimeter

SAR390.00
HTA102 Sound level Meter with Calibrator

SAR4,000.00
Megger MIT1525 - 15kV Insulation Resistance Tester

SAR30,000.00
RD C.A.T4+ and GENNY4 Underground Radiodetection Cable & Pipe Locator

SAR15,000.00
Flir E8-XT InfraRed Camera with MSX & WiFi

SAR15,000.00

Description Downloads Reviews

• With the maximum hold function, hold the maximum hardness value during measurement.
• It can also measure the hardness of material Brinell Hardness Scale (HB), Vickers Hardness Scale (HV), Webster Hardness Scale (HW), Rockwell Hardness Scale (HRB/HRE/HRF/HRH);
• he relevant industry standard is ASTM B648-00, ASTM HD2583-07, GB/T 3854-2005;
• Has the function of calculating the average value, and the average value of the 29 sets of data are calculated at most.

Product Description

MeterTo mainly offers instruments and tools.
Please confirm the product is offered by our store MeterTo when purchasing,
otherwise we can't ensure the quality and after-sale service.
Introduction:
It is characterized in that provided with a balance positioning, a digital display of hardness value, and a non disassembly calibration and adjusting.
It is with good stability, convenient calibration, and high accuracy of detection.
Small in size, portable. Single hand operation, easy to use.
Wide test range, can test from very soft pure aluminum to a particularly hard aluminum alloy. effective test range equivalent to the Brinell Hardness of 25~150HB.
Can be used for measuring not only Ba rcol Hardness, but also Brinell Hardness (HB), Vickers Hardness (HV), Webster Hardness (HW), Rockwell Hardness (HRB/HRE/HRF/HRH).
Provide Bluetooth data output choice.
Application:
Mainly used in aluminum processing industry. Used for testing pure aluminum, soft aluminum alloy, thick aluminum alloy, aluminum strip,
aluminum section bar, aluminum bar, aluminum casting, aluminum forging and aluminum alloy products. Can also be used in glass steel industry.
Range: 0~100Hba, Amount to 25~135HBW
Resolution: 0.1HBa
Indication Error: 81~88Hba±1Hba 42~48Hba±2Hba
Repeatability Error: 81~88Hba±1.5Hba 42~48Hba±2.5Hba
Maximum Hold: Yes
Brinell Hardness: Yes
Vickers Hardness: Yes
Wenster Hardness: Yes
Rockwell hardness: Yes
Average Calculation: Yes
Operating Condition: Temperature:0~50ºC Humidity:<80%RH
Power Supply: 2x1.5V AAA(UM-4)Battery

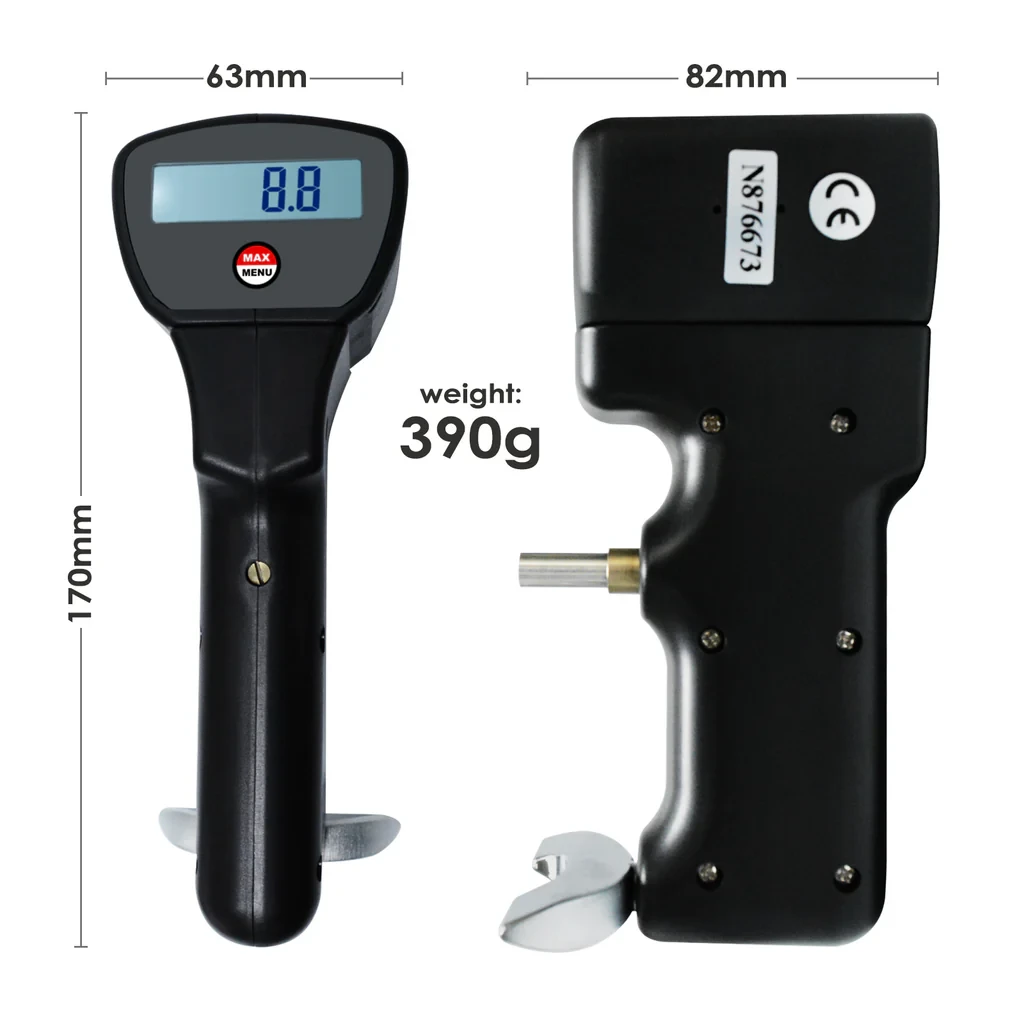

Dimensions: 170x63x82mm
Weight: 390g(Not Including Batteries)
Standard Accessories: Main Unit/2 Pins/2 Standard Blocks/Screw Driver/Spanner/Carrying Case/Operation Manual

Download

There have been no reviews for this product yet.
