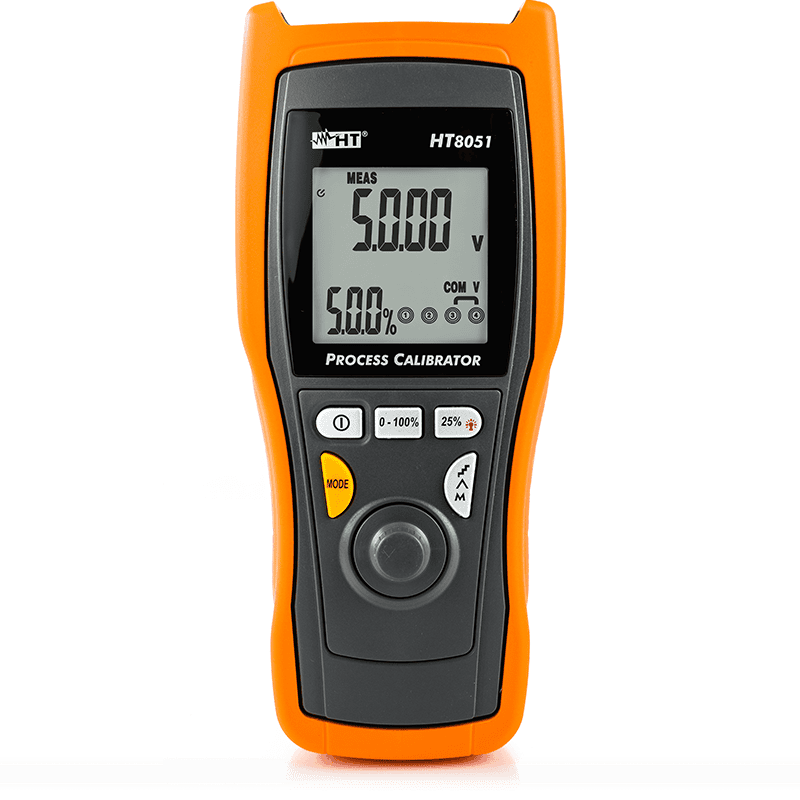

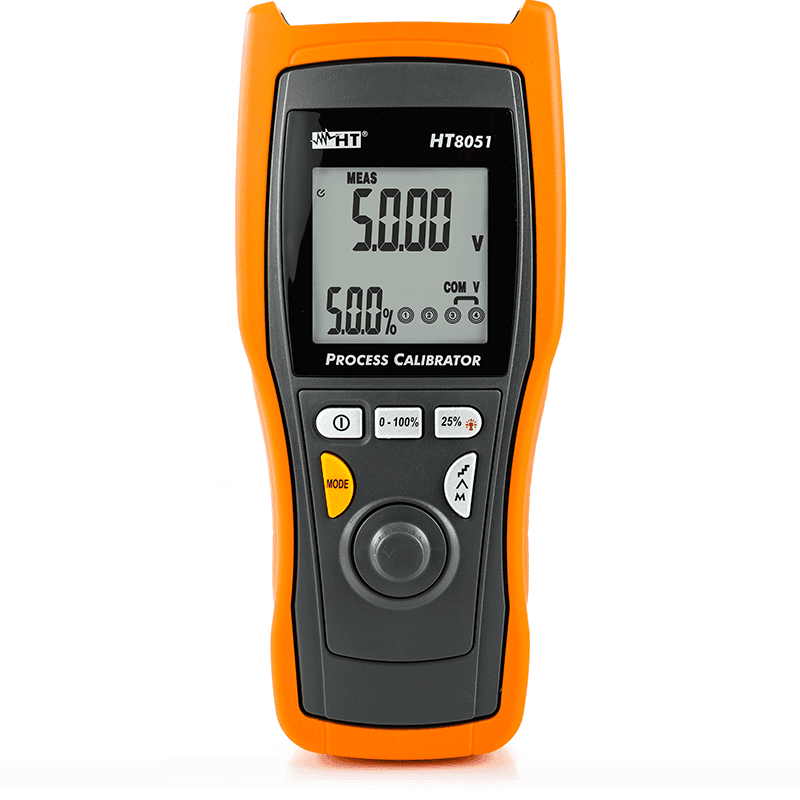

HT Instruments HT8051 Multifunction Process Calibrator 4-20mA / 0-10V

Sold By

NCIEM

(0 customer reviews)

Top Selling Products

Testo 270 Cooking Oil Tester

SAR2,000.00
Hioki DT4222: Digital Multimeter

SAR390.00
Fluke 376 FC True-RMS Clamp Meter with iFlex

SAR2,200.00
HTA102 Sound level Meter with Calibrator

SAR4,000.00
Megger MIT1525 - 15kV Insulation Resistance Tester

SAR30,000.00
RD C.A.T4+ and GENNY4 Underground Radiodetection Cable & Pipe Locator

SAR15,000.00

Description Downloads Reviews

Product Description

Multifunction 4-20mA/0-10V Process Calibrator
HT8051 is a professional digital process calibrator capable of generating and measuring signals of DC voltage and current up to 10V and 24mA respectively with a very simple setting of values thanks to the innovative adjuster. In measuring and generating current, it is also possible to define a display, also in percentage format, corresponding to the set values (0% = 4mA, 100% = 20mA).
The generation of voltage and current signals is also possible by using up to 3 selectable ramps. This model also allows measuring the current absorbed by external transducers directly supplied by it and simulating the presence of a transducer with adjustable current in its whole measuring range. HT8051 has been designed in compliance with safety standard IEC/EN61010-1 with double protective insulation, and each function can be selected through the appropriate buttons found on the front panel. This device is the ideal solution for typical industrial automation applications and for laboratory activities.

Download

There have been no reviews for this product yet.
