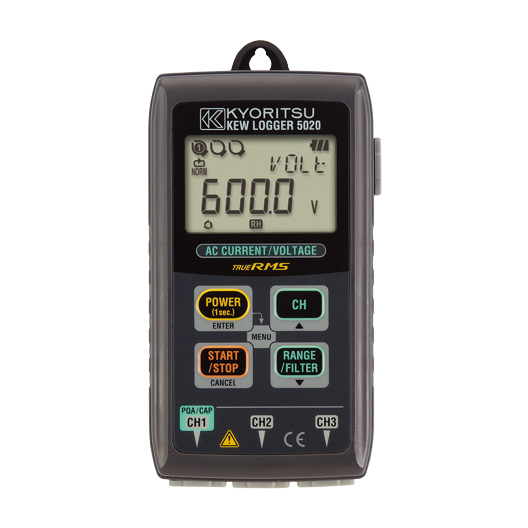

Kyoritsu 5020 AC Current/Voltage Data Logger, 3 channels

Sold By

NCIEM

(0 customer reviews)

Top Selling Products

Testo 270 Cooking Oil Tester

SAR2,000.00
Hioki DT4222: Digital Multimeter

SAR390.00
HTA102 Sound level Meter with Calibrator

SAR4,000.00
Megger MIT1525 - 15kV Insulation Resistance Tester

SAR30,000.00
RD C.A.T4+ and GENNY4 Underground Radiodetection Cable & Pipe Locator

SAR15,000.00
Flir E8-XT InfraRed Camera with MSX & WiFi

SAR15,000.00

Description Downloads Reviews

Description
The Kyoritsu 5020 is a 3-channel data logger for simultaneously recording AC current, voltage, and leakage current. Designed for industrial use, it features four recording modes and software for comprehensive data analysis.

Key Features
3 channels: Allows for simultaneous measurement of multiple parameters, such as voltage on one channel and load or leakage current on the other two.
True RMS measurement: Provides accurate readings for both AC current and voltage, even with distorted waveforms.
60,000 data points: The logger can store up to 60,000 measurements for a single channel. When all three channels are in use, it stores 20,000 data points per channel.
Non-volatile memory: Retains recorded data for up to 10 years, even if the batteries are exhausted or replaced.
Recording options: Can be set to a "One-time" mode, which stops recording when the memory is full, or an "Endless" mode, which overwrites the oldest data.
KEW LOG Soft 2: This user-friendly PC software is included for downloading, editing, analyzing, and graphically displaying recorded data via a USB cable.
Simplified Power Integration: The software can calculate integral power consumption from the recorded current and voltage data.
Recall function: The last 10 recorded data points with time and date stamps can be viewed directly on the logger's display.
LED alarms: An LED flickers to indicate when preset current or voltage values have been exceeded.

Download
