Description

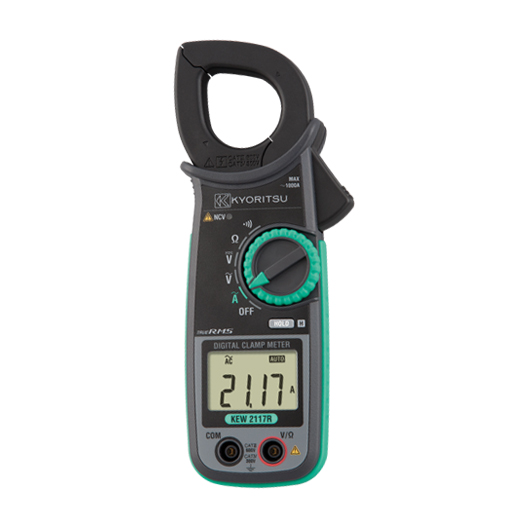

The Kyoritsu KEW2117R is a digital AC clamp meter with True RMS functionality, allowing for accurate readings on both standard and distorted waveforms. It is designed for electrical measurements up to 1000A AC and features a high-resolution display.

Key Features
True RMS measurement: The True RMS technology provides highly accurate measurements of AC current and voltage, even for non-sinusoidal waveforms. This is particularly useful for troubleshooting equipment with motor inverters, LEDs, PCs, and other modern electronics.
High-capacity AC current: It can measure AC current up to 1000A, making it suitable for heavy-duty commercial and industrial applications.
Auto-ranging capability: The meter automatically selects the appropriate measurement range for AC current and voltage, simplifying operation.
Wide frequency response: It can measure frequencies from 40Hz to 1kHz, covering both standard power frequencies and higher-frequency electronic applications.
Large, easy-to-read display: The 6000-count digital display has a resolution of 0.01A, providing clear and precise readings.
Ergonomic design: The over-molded body is designed for comfortable, one-handed operation, with a full safety jaw and a teardrop shape for easy access to crowded cable areas.
Non-contact voltage (NCV) function: This feature detects the presence of AC voltage (70V or higher) without touching the conductors, increasing safety during inspections.
Safety ratings: The instrument is built to meet high safety standards, including IEC 61010-1 CAT IV 300V / CAT III 600V.
Integrated multimeter functions: Beyond AC current, the KEW2117R also measures DC voltage up to 600V, resistance, and includes a continuity buzzer.
