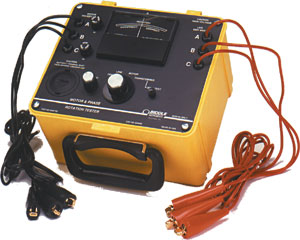

Megger 560400 Phase/Motor Rotation Tester, 25/50/60/400Hz

Sold By

NCIEM

(0 customer reviews)

Top Selling Products

Testo 270 Cooking Oil Tester

SAR2,000.00
Hioki DT4222: Digital Multimeter

SAR390.00
HTA102 Sound level Meter with Calibrator

SAR4,000.00
Megger MIT1525 - 15kV Insulation Resistance Tester

SAR30,000.00
RD C.A.T4+ and GENNY4 Underground Radiodetection Cable & Pipe Locator

SAR15,000.00
Flir E8-XT InfraRed Camera with MSX & WiFi

SAR15,000.00

Description Downloads Reviews

Description
The Megger 560400 is a phase and motor rotation tester that is a comprehensive tool used to verify electrical connections in motors and energized power circuits. Its rugged, portable design makes it suitable for use by electricians and industrial maintenance personnel.

Key features
Multiple functions: The 560400 combines several testing functions in a single instrument. It can be used to test:
Phase sequence/rotation: Determines the correct phase rotation of energized AC power lines up to 600 volts. This is crucial for ensuring a motor rotates in the intended direction.
Motor rotation: Confirms the rotation direction of one-, two-, or three-phase motors before they are connected to a power line.
Transformer polarity: Identifies the correct polarity of instrument and power transformers.
Continuity: Can be used to check for continuity in electrical circuits.
Broad frequency range: Operates across a wide range of frequencies, including 25, 50, 60, and 400 Hz, making it suitable for various applications.
Simple and safe operation: Eliminates the need for potentially hazardous temporary connections to determine motor rotation. It uses a DC zero-center ammeter to indicate correct or incorrect rotation or polarity.
Durable design: Enclosed in a high-impact ABS plastic case with a handle and removable lid for ruggedness and portability.
Included accessories: Comes with attached test leads, standard fuses, an alkaline D-battery, and an instruction manual.

Download
