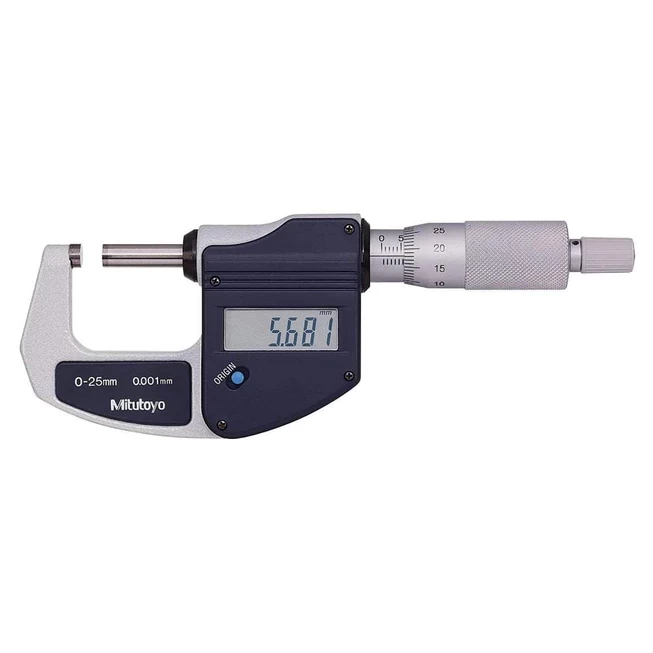

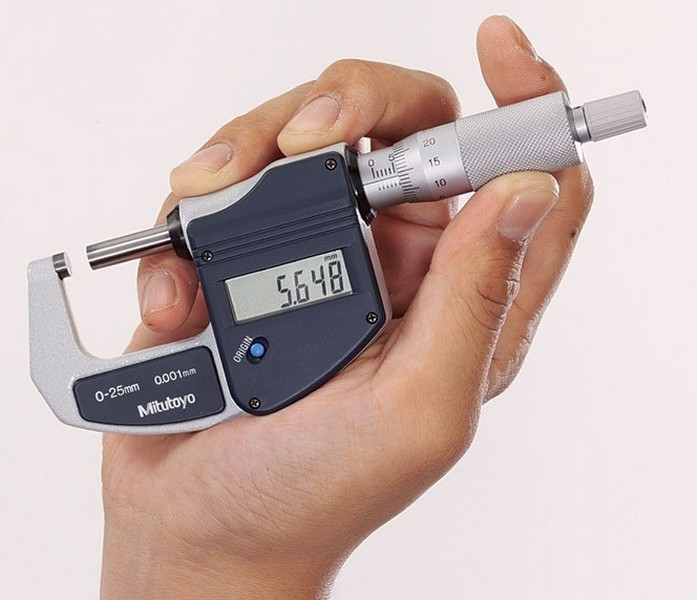

Mitutoyo 293-821-30: Digital Micrometer 0-25mm

Sold By

NCIEM

(0 customer reviews)

Top Selling Products

Testo 270 Cooking Oil Tester

SAR2,000.00
Hioki DT4222: Digital Multimeter

SAR390.00
HTA102 Sound level Meter with Calibrator

SAR4,000.00
Megger MIT1525 - 15kV Insulation Resistance Tester

SAR30,000.00
RD C.A.T4+ and GENNY4 Underground Radiodetection Cable & Pipe Locator

SAR15,000.00
Flir E8-XT InfraRed Camera with MSX & WiFi

SAR15,000.00

Description Downloads Reviews

THIS STANDARD MODEL DIGIMATIC MICROMETER IS AN AFFORDABLE DEVICE THAT OFFERS THE FOLLOWING BENIFITS:

• It is cost-effective with simplified functionality for standard applications.
• Extraordinary battery life of 2,4 years. Without data output.
• Constant measuring force

SPECIFICATION:

Range: 0 - 25 mm
Accuracy: ±2 µm
Mass: 275 g
Digital step: 0.001 mm / 0.001 mm/0.00005"
Scale: thimble and sleeve satin chrome finish, Ø 18 mm
Flatness: 0.3 μm/0.000012”
Parallelism: 2 μm/0.00008”
Measuring surfaces: carbide-tipped, precision ground, micro-lap finish
Measuring spindle: ø 6,35 mm, spindle pitch 0,5 mm
Measuring force: 5 - 10 N
Battery life: approx. 2,4 years (approx. 8700 hours)
Delivered: Including box, key, 1 battery, with factory certificate
ORIGIN: Yes
Auto Power OFF after 20 min. non use: Yes
Low voltage alarm: Yes
Digital/Analog: Digital
Functions: With ratchet stop
Inch-Metric: Metric
