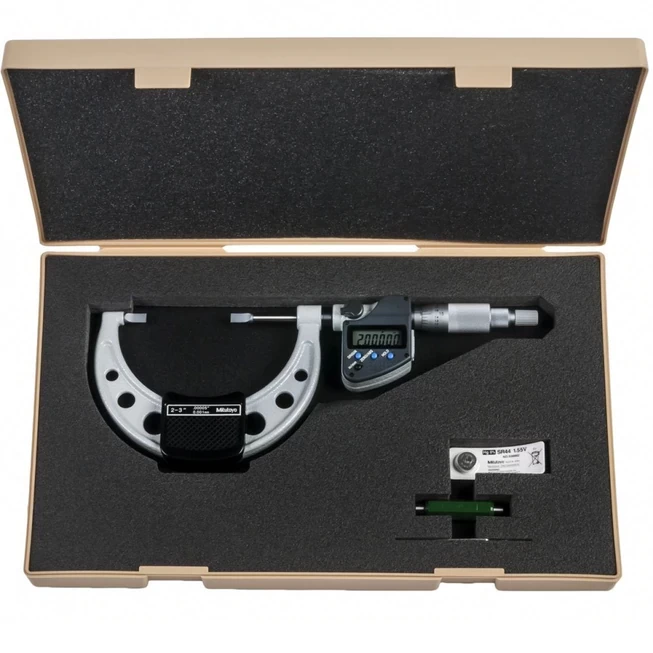

Mitutoyo 422-332-30 : Digimatic Blade Micrometer 2-3"/ 50.8

Sold By

NCIEM

(0 customer reviews)

Top Selling Products

Testo 270 Cooking Oil Tester

SAR2,000.00
Hioki DT4222: Digital Multimeter

SAR390.00
HTA102 Sound level Meter with Calibrator

SAR4,000.00
Megger MIT1525 - 15kV Insulation Resistance Tester

SAR30,000.00
RD C.A.T4+ and GENNY4 Underground Radiodetection Cable & Pipe Locator

SAR15,000.00
Flir E8-XT InfraRed Camera with MSX & WiFi

SAR15,000.00

Description Downloads Reviews

DESCRIPTION:

● The anvil and the spindle have a blade for measuring the groove diameter of shafts, key ways, and other hard-to-reach areas.
● With Ratchet Stop for constant force.
● With a standard bar 2 Inch.
● Origin-set, Zero-setting, Data hold, Data output, inch/mm
● Conversion (inch/mm models)
● Alarm: Low voltage, Counting value composition error
● Supplied in fitted plastic case.

SPECIFICATIONS:

● Range: 2-3"/ 50.8 - 76.2mm
● Accuracy: +/- .00015"
● Resolution: .00005"/0.001mm
● Parallelism: .003mm / .00012" for models up to 75mm / 3"
● (3+R/100) microns for models over 75mm,
● R = max. range (mm) .00016" for 4" models
● Display: LCD
● Battery: SR44 (1 pc.), 938882
● Battery life: Approx. 1.2 years under normal use

Download
