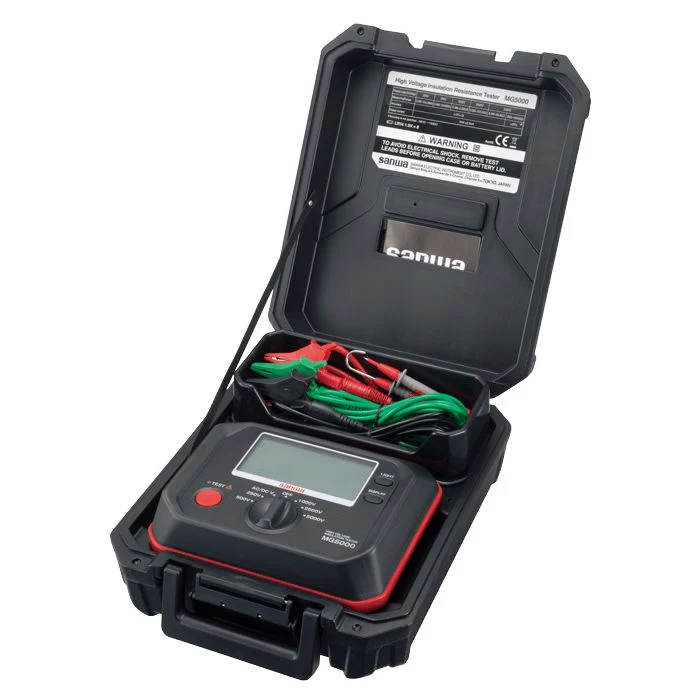

Sanwa MG5000 High Voltage Digital Insulation Tester

Sold By

NCIEM

(0 customer reviews)

Top Selling Products

Testo 270 Cooking Oil Tester

SAR2,000.00
Hioki DT4222: Digital Multimeter

SAR390.00
HTA102 Sound level Meter with Calibrator

SAR4,000.00
Megger MIT1525 - 15kV Insulation Resistance Tester

SAR30,000.00
RD C.A.T4+ and GENNY4 Underground Radiodetection Cable & Pipe Locator

SAR15,000.00
Flir E8-XT InfraRed Camera with MSX & WiFi

SAR15,000.00

Description Downloads Reviews

Description
The Sanwa MG5000 is a high-voltage digital insulation tester designed for assessing the integrity of electrical equipment and power lines. It is a robust instrument used by professionals for maintenance, quality control, and troubleshooting, and is capable of testing up to 5000V DC.

Key Features
Insulation Resistance: Measures up to 1 TΩ (teraohm).
Short-Circuit Current: Up to 4mA.
Voltage Measurement: Can also measure AC and DC voltages up to 1000V.
Display: Features a 1200-count digital LCD with a backlight and a 36-point bar graph to visualize insulation resistance.
Safety Rating: CAT IV 600V, compliant with IEC61010-1 standards, for safe use in high-voltage environments.
Durability: An IP54 rating provides protection against dust and splashing water.
Power Source: Operates on eight 1.5V LR14 (C-type) alkaline batteries.
Dimensions: Approximately H188 x W225 x D97 mm, with a weight of about 1.75 kg.

Download

There have been no reviews for this product yet.
