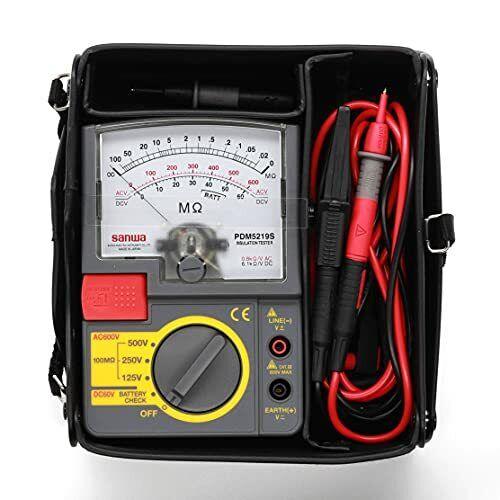

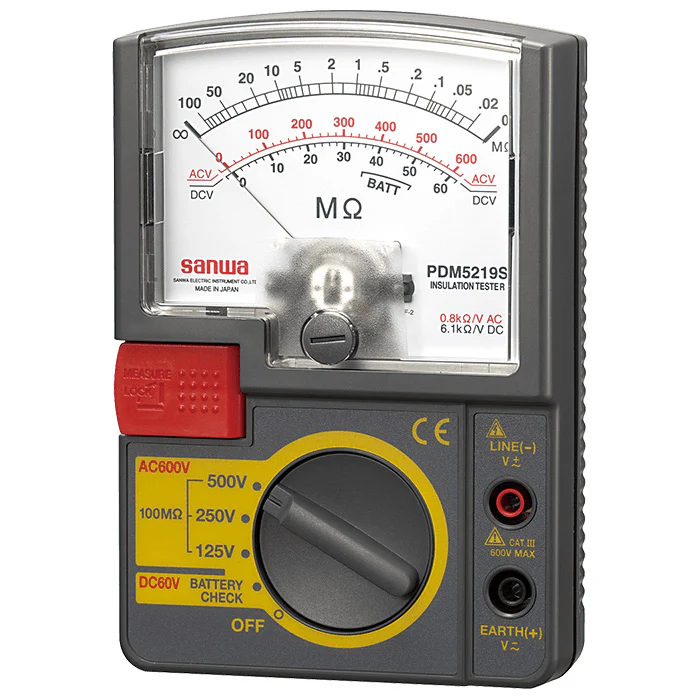

Sanwa PDM5219S | 125V / 250V / 500V Analog Insulation Tester / Portable Insulation Resistance Meter

Sold By

NCIEM

(0 customer reviews)

Top Selling Products

Testo 270 Cooking Oil Tester

SAR2,000.00
Hioki DT4222: Digital Multimeter

SAR390.00
HTA102 Sound level Meter with Calibrator

SAR4,000.00
Megger MIT1525 - 15kV Insulation Resistance Tester

SAR30,000.00
RD C.A.T4+ and GENNY4 Underground Radiodetection Cable & Pipe Locator

SAR15,000.00
Flir E8-XT InfraRed Camera with MSX & WiFi

SAR15,000.00

Description Downloads Reviews

Description
The Sanwa PDM5219S is a portable analog insulation tester used to measure the insulation resistance of electrical equipment and wiring. It features three DC test voltage ranges: 125V, 250V, and 500V, making it suitable for a variety of low-voltage electrical troubleshooting tasks.

Key Features
Insulation resistance test voltages: The device provides test voltages of DC125V, DC250V, and DC500V.
Measurement range: It can measure insulation resistance up to 100MΩ.
Auto-discharge function: For enhanced safety, the PDM5219S automatically discharges any stored voltage in a circuit after a test is completed.
One-shot or continuous measurement: A push switch allows you to perform either a single measurement or a continuous one.
Analog display: The large analog meter provides easy-to-read scale graduations for insulation resistance and voltage readings.
Additional measurement capabilities: In addition to insulation resistance, the PDM5219S can also measure: (DC voltage: Up to 60V), (AC voltage: Up to 600V)
Safety rating: It is IEC61010-1 CAT.III 600V certified, and the unit itself is IP20 rated.
Lightweight design: With a mass of approximately 310g and a compact size (144 × 99 × 43 mm), the tester is easy to carry and handle.
Inner battery check: The meter has a feature for checking the status of its own 9V alkaline battery.
