KEY FEATURES

● Easy to handle
● Powerful LEDs
● Non-contact temperature measurement
● Temp. measurement with sensor type K o. PT 1000
● Robust ABS plastic housing
● 5-digit 10 mm LCD display
● Last measured value, min / max memory
● Red strobe light

PRODUCT OVERVIEW

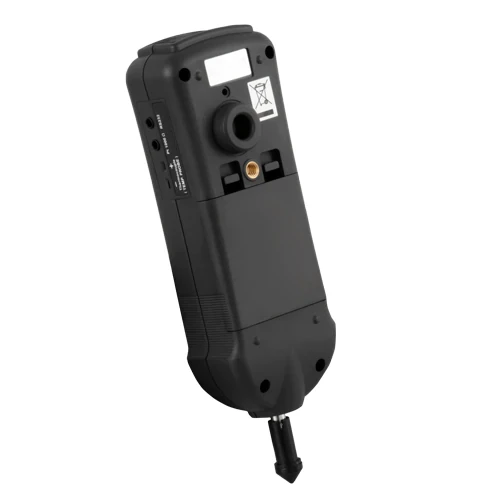

The combined tachometer-stroboscope is a measuring device for use in maintenance and production. In addition to the stroboscope function, the tachometer-stroboscope is also able to measure temperature by an infrared beam. Thus, the tachometer-stroboscope is ideal for testing the rotational speeds and temperatures of centrifuges, motors, fans, and many other machines and systems used in industry and research. The special feature is the combination of these measurement parameters in a single housing.

The tachometer-stroboscope has a measuring range of 0.5 ... 99.990 rpm, and the IC circuit in conjunction with a bright red LED lamp ensure the device has a low power consumption and is almost maintenance-free. The setting for the tachometer-stroboscope is made by means of a push button (for coarse and fine adjustment). The tachometer-stroboscope also enables the contact-less measurement of the rotational speed from 0.5 to 99.990 rpm with a resolution of up to 0.5 (at n <1000 rpm). When setting the speed measurement, the display is rotated by 180 ° so that the values can be easily read.

For temperature measurement with the tachometer-stroboscope, you can carry out the measurement by infrared contact-less as well as with temperature sensor type K or PT 1000. The RS 232 interface allows the measured values to be displayed or logged directly on a PC with the corresponding software.
