CA6524 1kV Insulation And Continuity Tester

Sold By

NCIEM

(0 customer reviews)

Top Selling Products

Testo 270 Cooking Oil Tester

SAR2,000.00
Hioki DT4222: Digital Multimeter

SAR390.00
Fluke 376 FC True-RMS Clamp Meter with iFlex

SAR2,200.00
HTA102 Sound level Meter with Calibrator

SAR4,000.00
Megger MIT1525 - 15kV Insulation Resistance Tester

SAR30,000.00
RD C.A.T4+ and GENNY4 Underground Radiodetection Cable & Pipe Locator

SAR15,000.00

Description Downloads Reviews

KEY FEATURES

● Measurement range: 200GΩ
● Voltage measurement: 700V
● Resistance measurement: 0 - 1000kΩ
● Frequency measurement: 15.3 - 800Hz
● Insulation: 50-100-250-500-1000V test voltage
● Continuity: 200mA / 20mA measurement current
● Test mode: Manual, Lock, Timer, PI and DAR

PRODUCT OVERVIEW

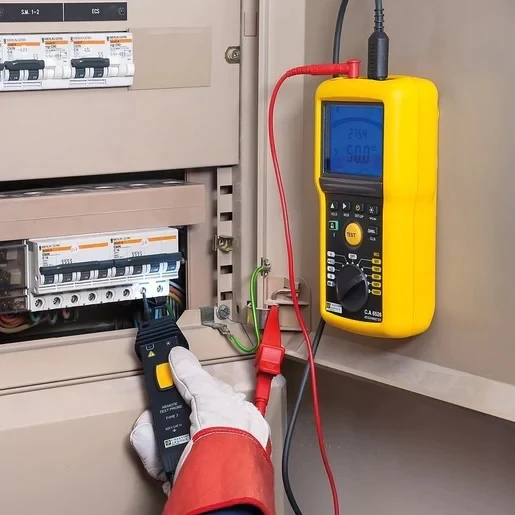

The Chauvin Arnoux CA6524 insulation tester is compact, lightweight and simple to use, offering greater comfort for users. Casing designed with 600V CAT IV safety and IP54 / IK04 protection for a comfortable grip in total safety with easy access to the TEST button and even when the user is wearing safety gloves. Magnetic stand for fixing the product on a metal surface so that users have their hands free when measuring and reading the result. Wide backlit screen with double digital display and logarithmic bargraph, secondary display showing the actual test voltage, the test current and the timer value, in addition to the value measured. Remote control with torch for error-free identification of the points of measurement and even in environments with poor lighting.

Download

There have been no reviews for this product yet.
