Druck DPI 620 Genii Advanced Modular Calibrator and HART®/ Foundation Fieldbus™ Communicator

Product Overview :

• Complete HART communicator included
• Optional Foundation Fieldbus communicator
• Modular re-rangeable and expandable concept
• Individual components can be used as stand-alone instruments

Advanced Modular Calibrator and HART ® / Foundation Fieldbus ™ Communicator

Powerful productivity in your hands, the modular DPI 620 Genii delivers a range of calibration tasks, in one compact hand-held system. Unique among calibrators, the DPI 620 Genii is driven by a touch and swipe interface, making it faster and simpler to access every function in this world-class multifunction calibrator. Intuitive command menus allow you to fully load supporting documentation for every device, so your engineers always have the latest information at their fingertips and are up and running in minutes.

A flexible modular system

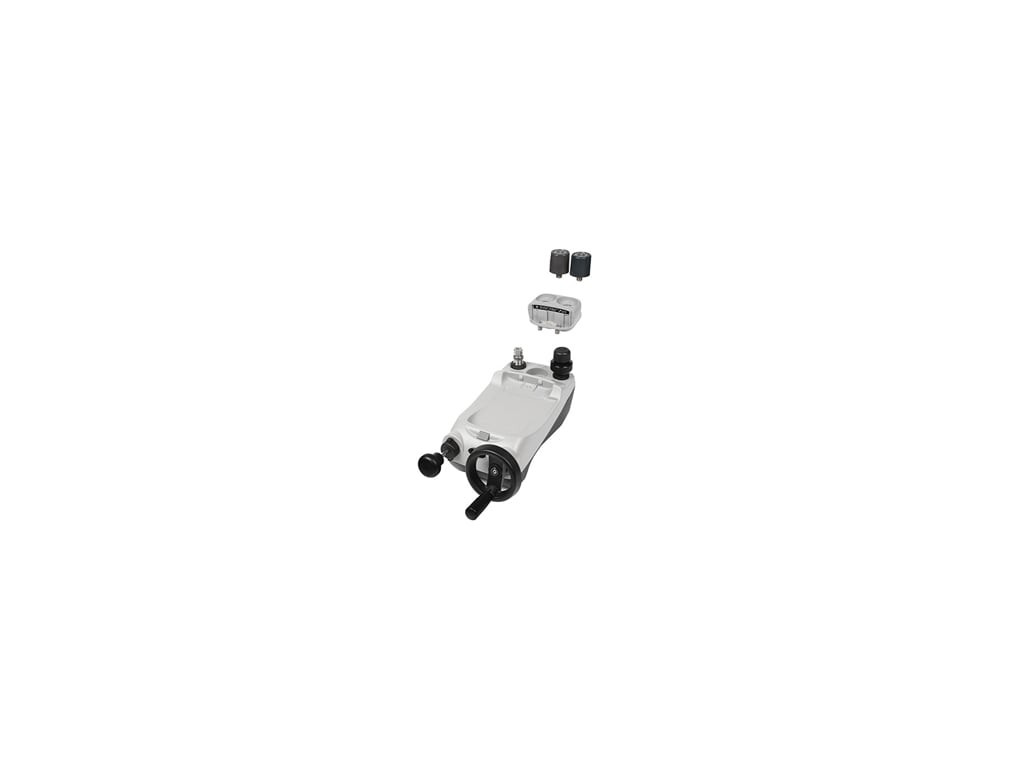

The Druck DPI 620 Genii Series - Advanced Modular Calibrator and HART/Fieldbus Communicator comprises four system components to provide the multi-functionality to perform duties formerly requiring a wide range of different instruments. These system components are:
• DPI 620G - Multi-function calibrator, HART/Fieldbus Communicator
• PM 620 - Interchangeable pressure modules
• MC 620G - Pressure module carrier
• PV 62XG - Pressure generating stations

Measure and source mA, mV, V, ohms, frequency, RTD’s and thermocouples.
Re-rangeable dual channel pressure measurement from 25 mbar (10 inH 2 O) to 1000 bar (15000 psi)
Re-rangeable pressure measurement and generation from 25 mbar (10 inH 2 O) to 1000 bar (15000 psi)
Note: All previous generation DPI 620 series and the new DPI 620 Genii series products (including accessories) are compatible with each other.

DPI 620 Genii
This ultra-compact electrical, frequency and temperature calibrator with full HART communicator and optional Foundation Fieldbus communicator provides simultaneous measurement and source capabilities for the setup, testing and calibration of most types of process instruments including transmitters, transducers, gauges/indicators, switches, proximity detectors, counters, RTDs, thermocouples and valve positioners.

What’s new in Genii compared to the old DPI 620?

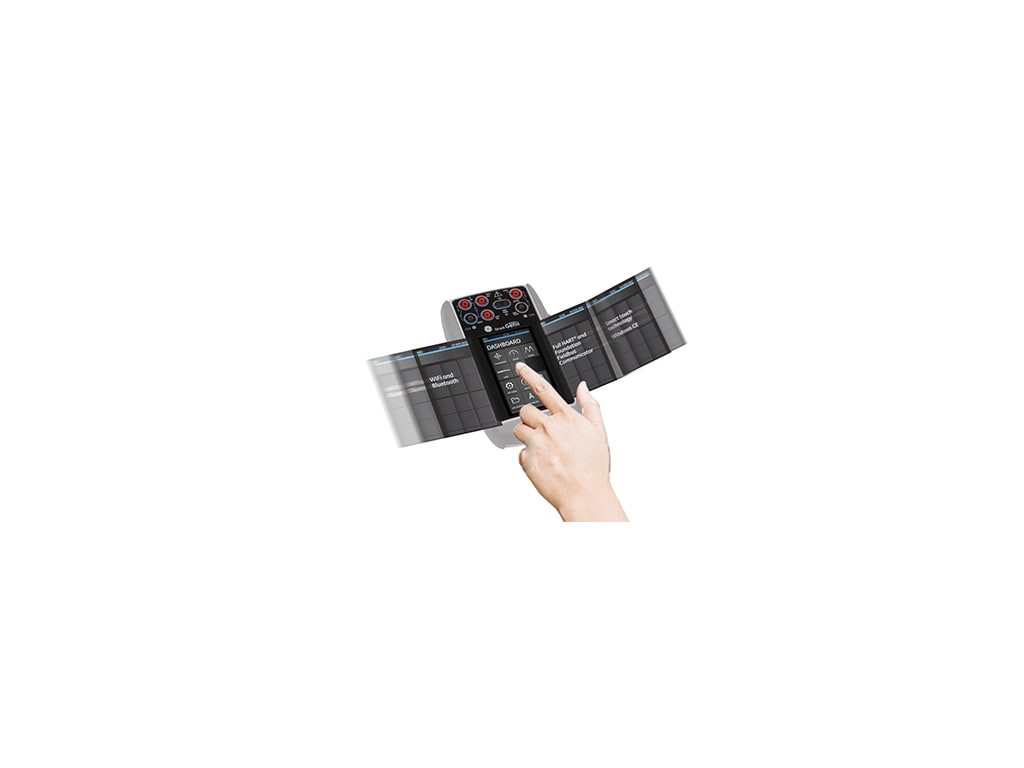

• Smart phone technology touch display and new UI (User Interface) supporting gestures and swipes for a flatter menu structure and greater ease of use.
• Completely new digital platform and modems to support HART and Fieldbus applications.

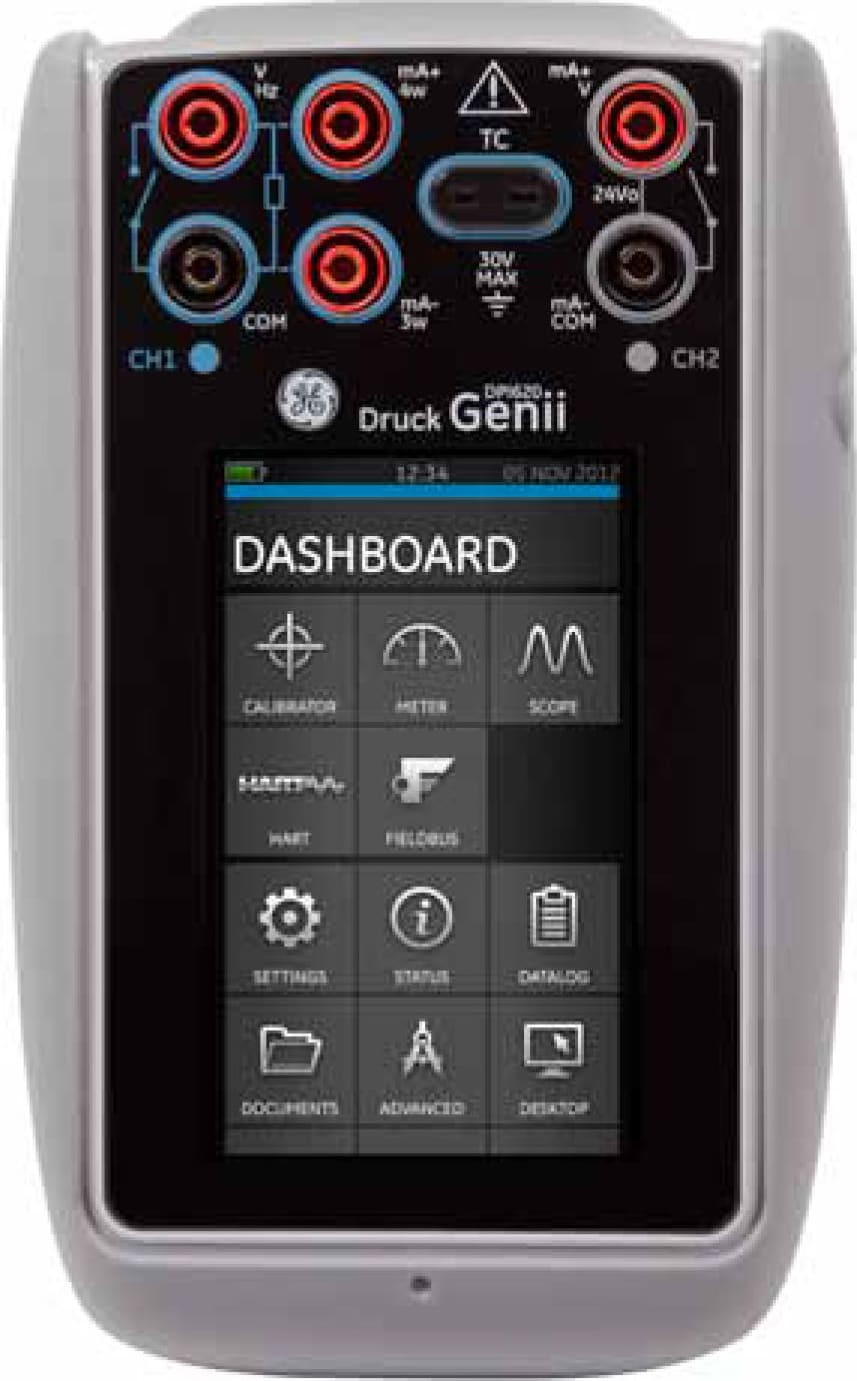

• New DASHBOARD to quickly launch applications such as CALIBRATOR, HART and SETUP.
• TASK menu allows single touch configuration for common devices such as pressure and temperature transmitters, transducers, switches and valve positioners. User configured and frequently used tasks can be added to the Favourites menu for even quicker access.
• All first generation DPI 620 and the new Genii system components are fully interchangeable; e.g. pressure stations, pressure modules and all accessories.
The new Genii brings you, at a glance:
• Accuracy from 0.0025%rdg+ 0.002%FS
• Swipe navigation
• Display themes for fast access to all functions
• Contrast settings for light or dark environments
• Powerful Windows CE (WEC7) operating system
• Full Hart Communicator
• Foundation Fieldbus
• Bluetooth, USB and WiFi as standard
• Robust build, portable and light
• Document library
• Error free reporting
• Free library and software updates

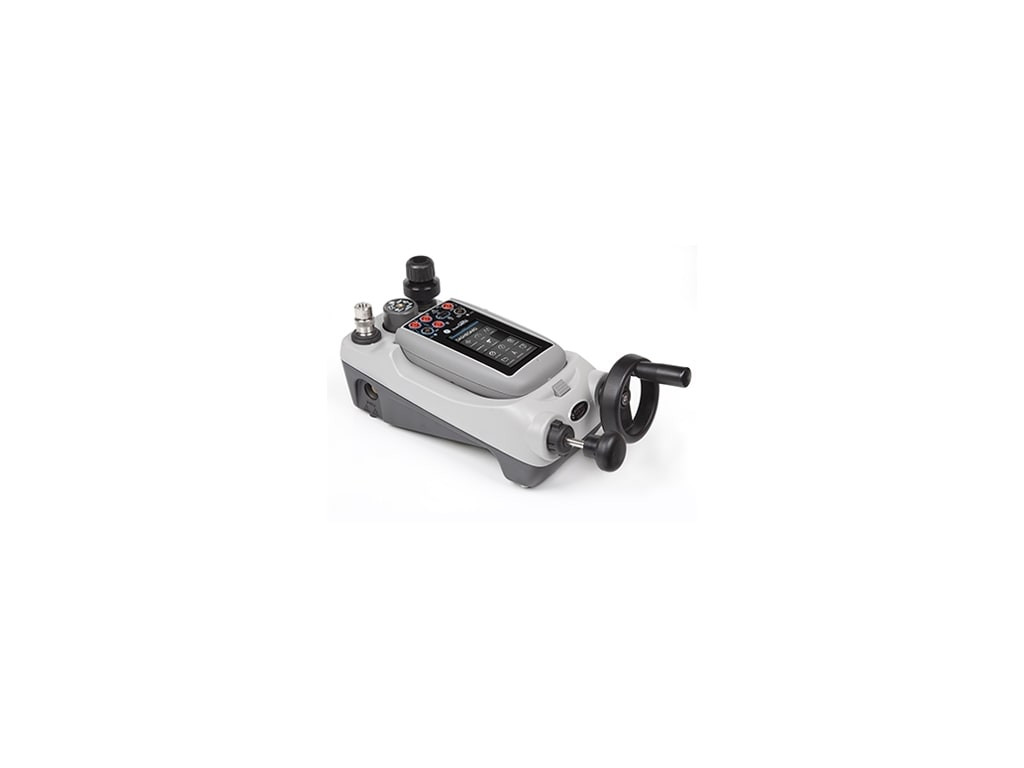

Pressure Generation Stations:
• Advanced pressure generation
• 95% vacuum to 20 bar/300 psi pneumatic
• 95% vacuum to 100 bar/1500 psi pneumatic
• 0 to 1000 bar/15,000 psi hydraulic
• Replace hand pumps
Pressure Measurement Modules:
• 25 mbar to 1000 bar (10 inH2O to 15000 psi)
• Accuracy from 0.005%FS
• Fully interchangeable modules with no need for set-up, calibration or tools
Other DPI Genii benefits include:
• View, change, clone and store HART device configurations
• Work off-line to create and change HART configurations
• Transfer HART device configurations to your PC
• Measure and source analogue variables without secondary equipment
• No power during shutdown? Genii provides 24V
• Need a 230 ohm resistor? Just select from the menu
• World-class calibration in the same unit
• Full data integration capability
• Bluetooth, USB and WiFi as standard
• Robust new case

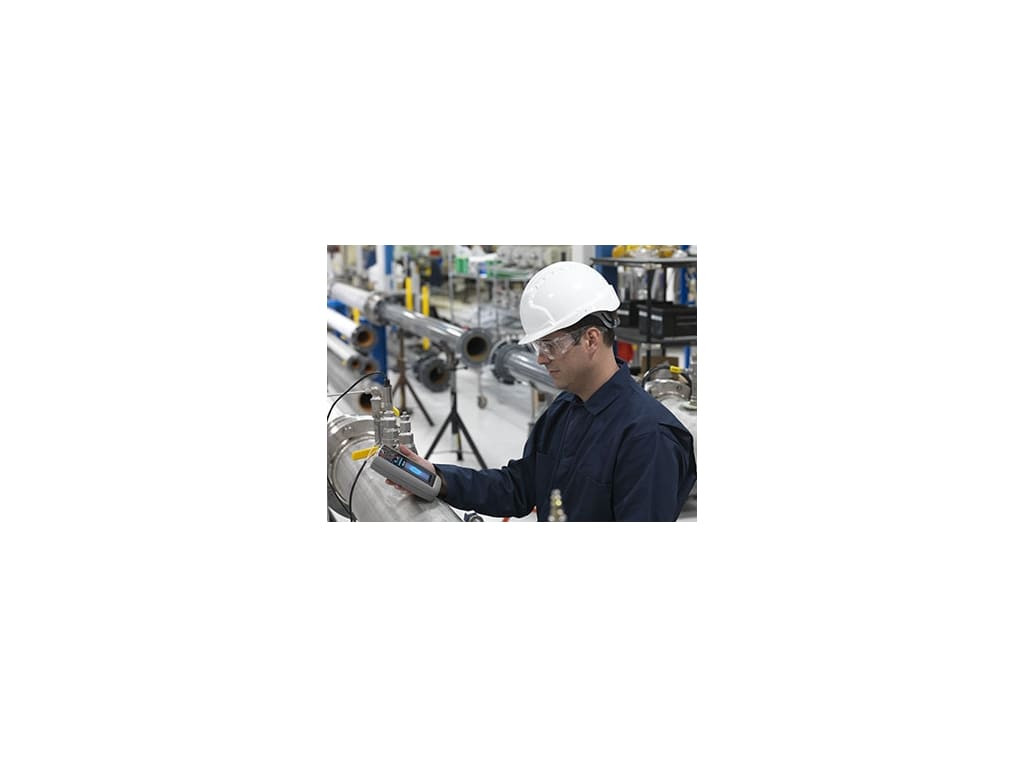

The DPI 620 Genii excels in:
• Petrochemical
• Chemical
• Oil & Gas
• Power
• Food
• Pharmaceuticals
Standard Dashboard Applications
Calibrator
• One touch selection of common tasks, e.g. P to I for a pressure transmitter
• Highest accuracy for measuring, sourcing and simulating electrical, frequency, temperature and pressure
• Simulate device inputs and measure outputs simultaneously (up to 6 active channels)
• Calculates errors between inputs/outputs
• Pressure system generates 100 bar/1,500 psi pneumatic and 1000 bar/15,000 psi hydraulic pressures.
• Interchangeable pressure modules from 25 mbar/10 inH 2 O to 1,000 bar/15,000 psi
Documenting
• Data log up to six channels simultaneously
• Automate calibration procedures and Document As Found and As Left results
• Store a complete plant database of procedures and results
• View standard office documents, including images, text files, spreadsheets and presentations
HART Communicator
• Measure and source analogue variables without secondary calibration equipment
• No power during shutdown? Genii provides 24 V or 28 V
• Need a 250 ohm resistor? Just select from the menu
• It’s easy to upgrade Genii with free of charge software and latest DD library
• View, change, clone and store device configurations
• Work off-line to create and change configurations
• Transfer device configurations to your PC
Foundation Fieldbus communicator - optional
• Fully featured Filedbus communicator for device configuration and calibration
• Complete device description library
• It’s easy to upgrade Genii with free of charge software and latest DD library
