HT Instruments HT4004 AC/DC Transducer Rigid Clamp Meter up to 100A

Sold By

NCIEM

(0 customer reviews)

Top Selling Products

Testo 270 Cooking Oil Tester

SAR2,000.00
Hioki DT4222: Digital Multimeter

SAR390.00
HTA102 Sound level Meter with Calibrator

SAR4,000.00
Megger MIT1525 - 15kV Insulation Resistance Tester

SAR30,000.00
RD C.A.T4+ and GENNY4 Underground Radiodetection Cable & Pipe Locator

SAR15,000.00
Flir E8-XT InfraRed Camera with MSX & WiFi

SAR15,000.00

Description Downloads Reviews

Description

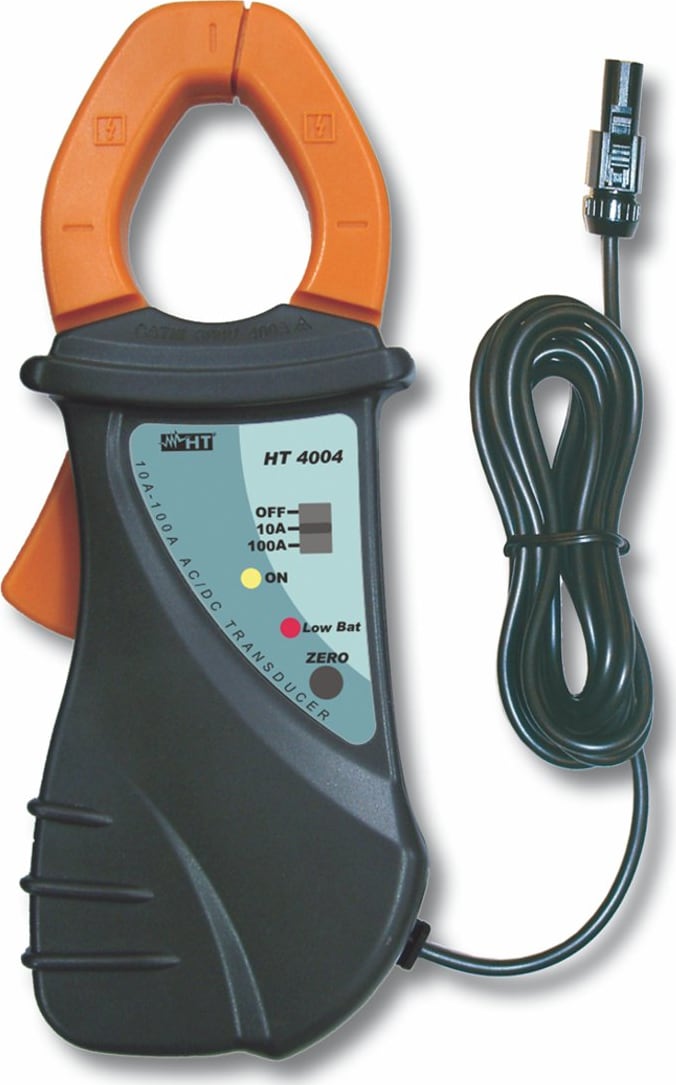

The HT Instruments HT4004 is a rigid clamp transducer used to measure AC/DC currents up to 100A. Unlike a self-contained clamp meter, the HT4004 is an accessory that requires a compatible multimeter or other measuring instrument to function.

Key Features
Manual zeroing: The HT4004 includes a feature for manual zeroing, which is useful for maintaining accurate measurements.
External power supply and low battery indicator: The unit is externally powered and includes an indicator to show when the battery is low.
Compatible with various instruments: It can be used with a range of devices, such as precision multimeters, recorders, and data loggers
Measuring range: 0.1A to 100A AC/DC
Output signal: 1V AC/DC
Overvoltage category: CAT III 600V
Maximum cable diameter: 30 mm
Dimensions (L x W x H): 195 x 64 x 30 mm
Output connector: 2 x 4mm safety banana leads

Download
