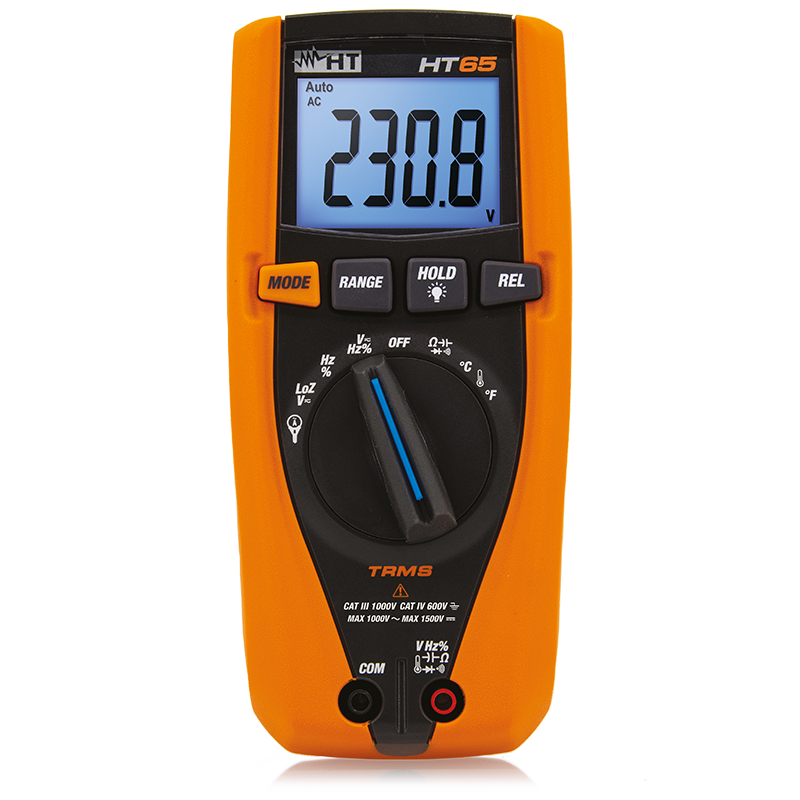

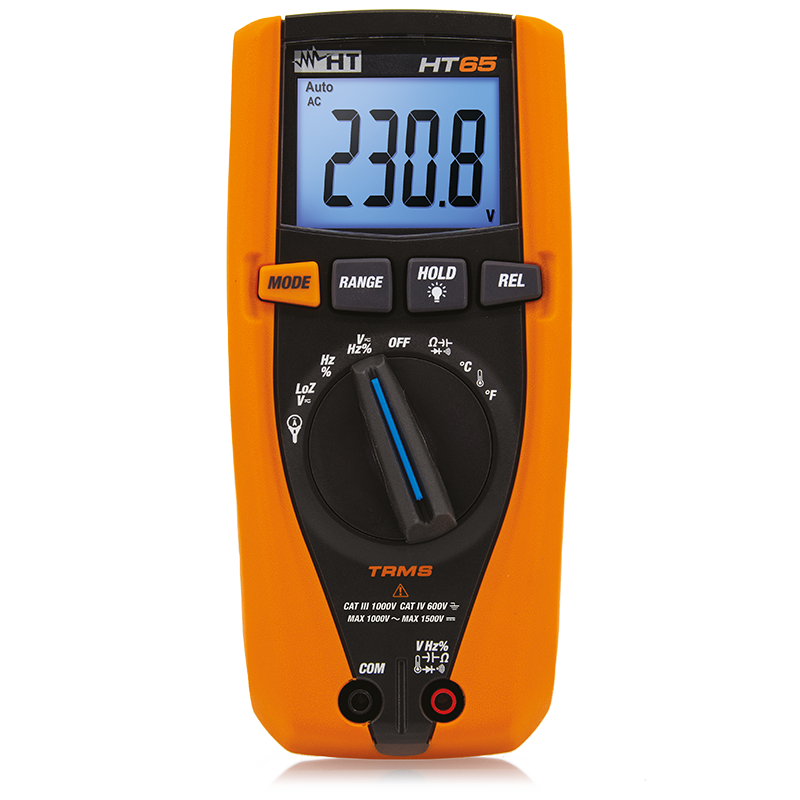

HT Instruments HT65 TRMS Digital Multimeter for DC Voltage Measurements up to 1500V

Sold By

NCIEM

(0 customer reviews)

Top Selling Products

Testo 270 Cooking Oil Tester

SAR2,000.00
Hioki DT4222: Digital Multimeter

SAR390.00
HTA102 Sound level Meter with Calibrator

SAR4,000.00
Megger MIT1525 - 15kV Insulation Resistance Tester

SAR30,000.00
RD C.A.T4+ and GENNY4 Underground Radiodetection Cable & Pipe Locator

SAR15,000.00
Flir E8-XT InfraRed Camera with MSX & WiFi

SAR15,000.00

Description Downloads Reviews

Description
The HT Instruments HT65 is a True-RMS digital multimeter primarily designed for professional electricians and solar installers. Its key feature is the ability to measure high DC voltages up to 1500V, making it suitable for modern photovoltaic (PV) systems. The query also mentioned "New tequila," which appears to be a transcription error of "HT Italia," the original company brand name for HT Instruments.

Key Features
Solar PV applications: The ability to handle up to 1500V DC and measure AC/DC current with optional transducer clamps makes the HT65 ideal for testing and troubleshooting high-efficiency solar panel systems.
Auto-ranging and backlit display: The multimeter offers user-friendly features like auto-ranging and a backlit display for ease of use in various lighting conditions.
Specialized functions: In addition to standard multimeter functions, the HT65 includes specialized modes like LoZ for preventing false readings caused by stray voltages.
Features: Includes LoZ (low impedance) mode for ghost voltage elimination, auto-ranging, data hold, and auto power off.
DC Voltage: Up to 1500V
AC Voltage (TRMS): Up to 1000V
DC/AC Current: Up to 1000A via optional external transducer clamps.
Resistance: Up to 40MΩ
Frequency: Up to 10MHz
Capacitance: Up to 40mF
Temperature: From -20°C to 760°C with an included K-type wire probe.
Display: 4000-count LCD with a backlight.
Safety Rating: CAT IV 600V and CAT III 1000V.

Download

There have been no reviews for this product yet.
