Description

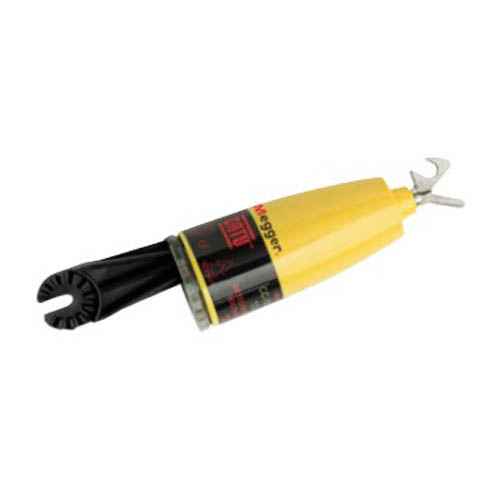

The Megger 514360-6 DETEX Voltage Detector is an electronic tool used by electrical workers to check for the presence of voltage on high-voltage AC systems. It is designed for distribution lines and features both audible and visual indicators.

Key features
Operating voltage: Detects voltages from 11.7 to 36.2 kV phase-to-phase.
Safety indicators: Emits a loud, piercing tone and a flashing red LED to warn of detected voltage.
Continuous monitoring: The unit operates continuously without an on/off switch.
Self-test function: A push-button self-test feature confirms the detector is working correctly before use. A green LED indicates the unit is ready for testing.
Attachment: The unit is spline-fitted for attachment to a universal hot stick, which must be purchased separately.
Compliance: Meets IEC guidelines and ANSI C84.1-1982 standards for high-voltage test instruments.
