Megger TDR500 Time Domain Reflectometer

Sold By

NCIEM

(0 customer reviews)

Top Selling Products

Testo 270 Cooking Oil Tester

SAR2,000.00
Hioki DT4222: Digital Multimeter

SAR390.00
HTA102 Sound level Meter with Calibrator

SAR4,000.00
Megger MIT1525 - 15kV Insulation Resistance Tester

SAR30,000.00
RD C.A.T4+ and GENNY4 Underground Radiodetection Cable & Pipe Locator

SAR15,000.00
Flir E8-XT InfraRed Camera with MSX & WiFi

SAR15,000.00

Description Downloads Reviews

Description

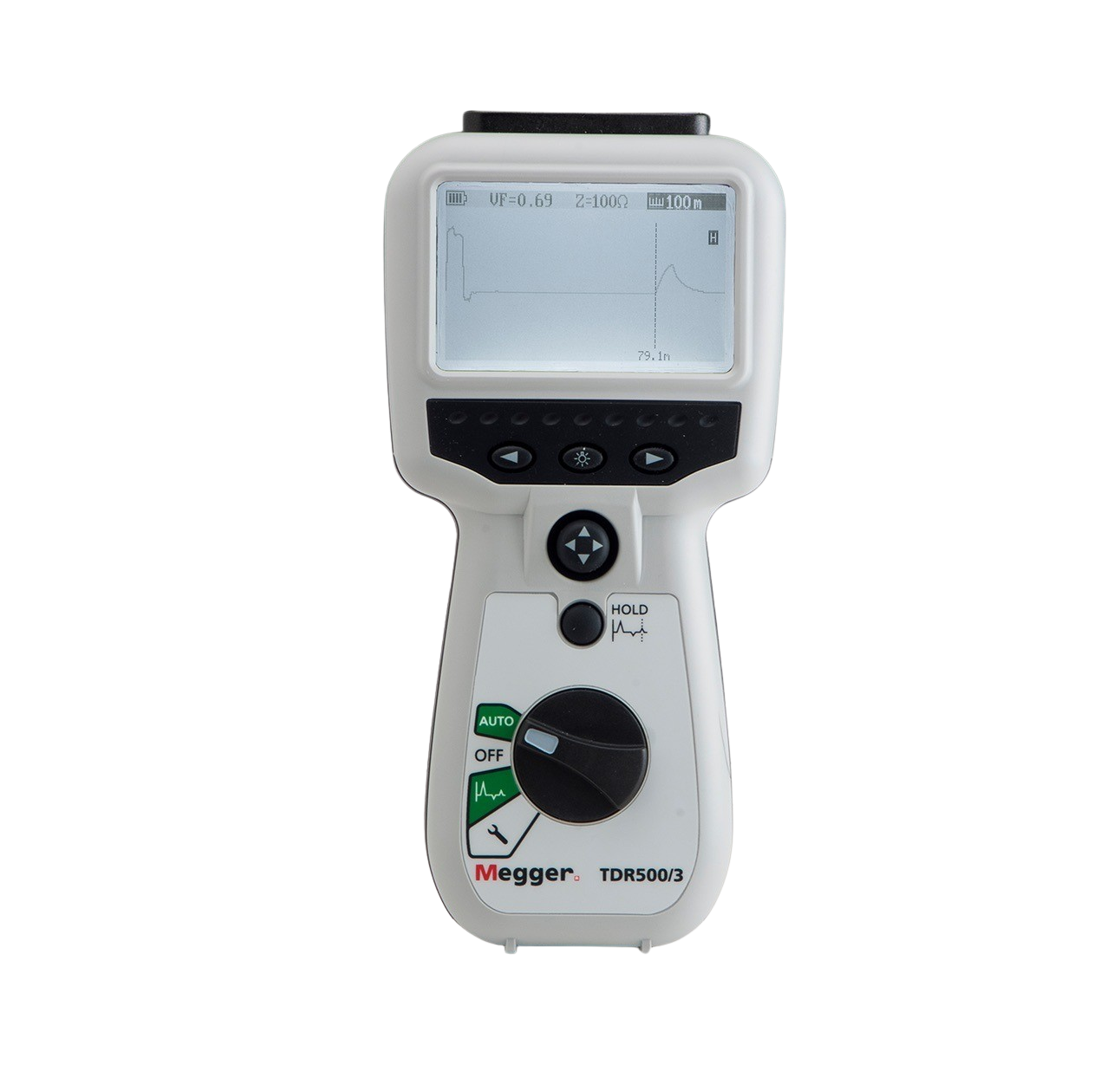

The Megger TDR500/3 is a handheld, compact time domain reflectometer (TDR) used for quickly and accurately locating faults on metallic cables. Its user-friendly interface makes it ideal for field engineers and technicians.

Key features

Automatic operation: The "AUTO selection" feature automatically adjusts the most effective test parameters for rapid fault diagnosis.
Trace hold: Allows the user to freeze a trace on the screen for easier analysis.
High resolution: Provides a minimum resolution of 0.1 meters (0.3 feet), depending on the velocity factor and cable type.
Fast pulse: The ultra-fast pulse helps identify near-end faults, including those less than 1 meter from the connection point.
Multiple impedances: Offers selectable output impedances of 25Ω, 50Ω, 75Ω, and 100Ω to accommodate various cable types.
Durable design: The IP54 rating protects the unit against dust and water, making it suitable for both indoor and outdoor use.
Long battery life: Uses 5 AA batteries and offers up to 14 hours of typical continuous use.
