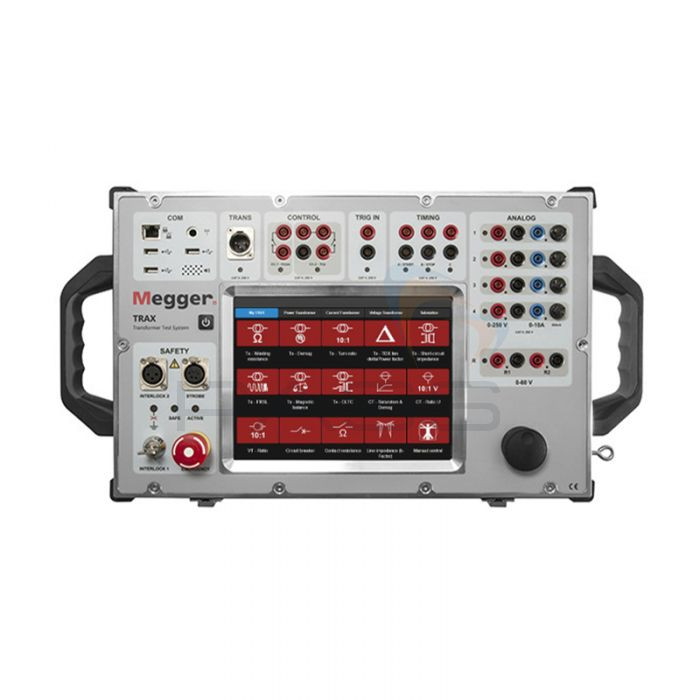

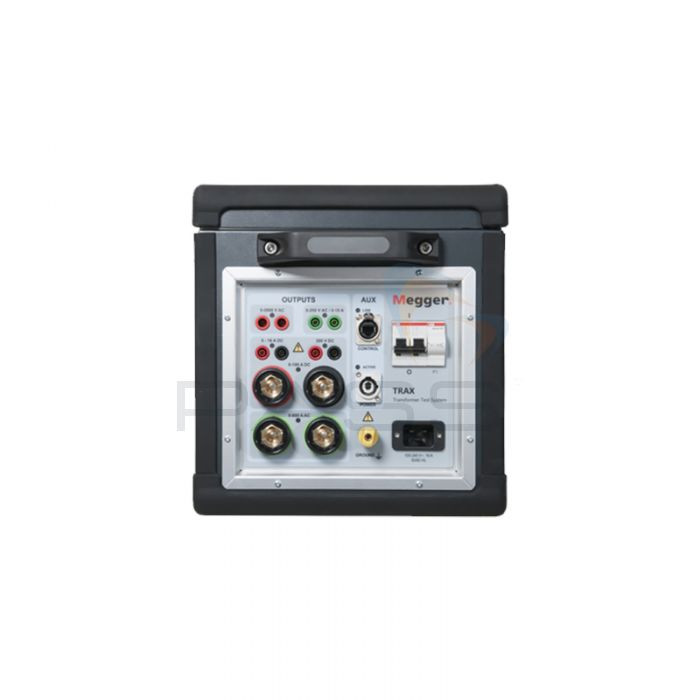

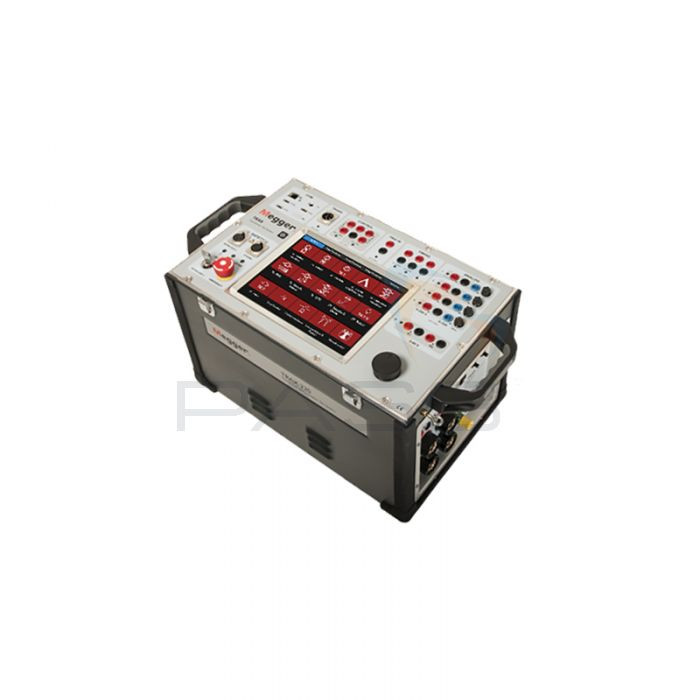

Megger TRAX 280 Transformer & Substation Test System

Description

• State-of-the-art winding resistance and tap-changer testing
• 100A DC test current for winding resistance measurements
• 250V AC voltage for turns ratio measurements
• 100A/ 50V compliance
• Adaptive demagnetisation: enables fast and efficient demagnetisation of the transformer core
• Patented technique for dynamic measurements on load tap-changers
• Tap-changer control
• DC resistance measurements with dual-ground capability
• High-voltage ratio measurement (250V and 2200V output)
• Patented individual temperature correction (ITC)
• Patented automatic voltage dependence detection (VDD)
• CT and VT testing
• 3-phase circuit-breaker analyser (main and resistor contacts)
• Manual phase-angle meter
• Manual ground/ earth impedance testing
• Contact resistance
• Line impedance/ K-factor
• 4-channel power multimeter
• Oscilloscope

In addition to the above, the Megger TRAX 280 Transformer & Substation Test System supports OPTIONS for switchbox 3-phase/ 6-winding measurements and 12kV tan delta (power factor) and capacitance testing. Moreover, when used with Megger’s TCX 200 High-Current Box, the Megger TRAX 280 Transformer & Substation Test System can deliver a current output of 2000A.
The Megger TRAX 280 Transformer & Substation Test System is a comprehensive, convenient, and simple-to-use multifunctional substation test system.

Megger TRAX 280 Transformer & Substation Test System Key Features
• A multifunctional substation test system
• Designed for primary injection testing of protective relay equipment
• Suitable for applications requiring variable currents
• Test the turns ratio of current transformers
• Delivers a high current output of up to 800A
• Includes testing capabilities designed to improve the ease and efficiency of testing
• Comprehensive testing means you only need one instrument
• Maintains high standards of reliability and accuracy
• State-of-the-art winding resistance and tap-changer testing
• 100A DC test current for winding resistance measurements
• 250V AC voltage for turns ratio measurements
• 100A/ 50V compliance
• Adaptive demagnetisation: enables fast and efficient demagnetisation of the transformer core
• Patented technique for dynamic measurements on load tap-changers
• Tap-changer control
• DC resistance measurements with dual-ground capability
• High-voltage ratio measurement (250V and 2200V output)
• Patented individual temperature correction (ITC)
• Patented automatic voltage dependence detection (VDD)
• CT and VT testing
• 3-phase circuit-breaker analyser (main and resistor contacts)
• Manual phase-angle meter
• Manual ground/ earth impedance testing
• Contact resistance
• Line impedance/ K-factor
• 4-channel power multimeter
• Oscilloscope
• OPTIONAL switchbox 3-phase/ 6-winding measurements
• OPTIONAL 12kV tan delta (power factor) and capacitance testing
• Use with Megger’s TCX High-Current Box (sold separately) to deliver a current output of 2000A
• Comprehensive, convenient, and simple-to-use multifunctional substation test system

What’s Included?
• Megger TRAX 280 Transformer & Substation Test System
• Cables
• Manual Control
• Standard Transformer Software Package
