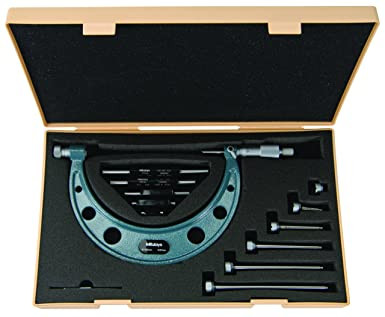

104-136A Outside Micrometer with Interchangeable Anvils: 150-300mm
The Mitutoyo 104-136A Outside Micrometer has the following specifications:● Range: 150-300mm● Resolution: 0.01mm ● Mass(kg): 2.65 ● Remarks: with 6 anvils & 6 standards |
FEATURES:● IP65 water/dust protection 340 series models with a range up to 12in/300mm.● Wide measuring range with interchangeable anvils. ● With a Ratchet Stop for constant force. ● Supplied with zero-setting standards bar for each range. ● With SPC output (Series 340). ● Supplied in fitted wooden case |
TECHNICAL DATA:● Accuracy: +/-(4+R/75)?m, R=max. range (mm), [.00016" / .00004 (L/3)"] L = Max Range (Inch)● Resolution*: 0.001mm or .0001"/0.001mm (340-351-10: .00005"/0.001mm) ● Graduation**: 0.01mm ● Flatness: 0.6?m / .000024" for models up to 300mm / 12"; 1?m / .00004" for models over 300mm / 12" ● Parallelism: 2?m / .00008" for models up to 75mm / 3"; 3?m / .00012" for models up to 150mm / 6"; (2+R/100)?m for models over 150mm, R=max. range (mm); [.00008" / .00004 (L/4)"] L= Max range (inch) ● Measuring faces: Carbide tipped ● Display*: LCD ● Battery*: SR44 (1 pc.), 938882 ● Battery life*: Approx. 1.2 years under normal use ● Dust/Water protection level*: IP65 ● *Digital models **Analog models |
FUNCTION OF DIGITAL MODEL:● Zero-setting, Data hold, Preset, Data output, inch/mm conversion (inch/mm models)● Alarm: Low voltage, Counting value composition error ● ***Function Lock ● ***2 Presets ● ***100-300mm/4-12" |
