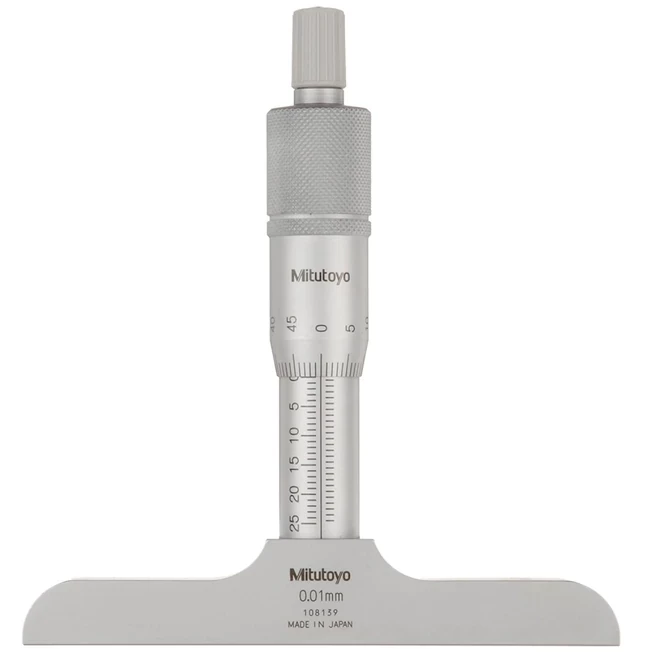

Mitutoyo 128-102 Depth Micrometer, 0-25mm / Base 101mm

(0 Reviews)

Sold By:
Inhouse product

Price:
SAR450.00 /Unit

Quantity:
(2 available)

Total Price:
Share:
SPECIFICATIONS:

● Range: 0-25mm
● Graduations: 0.001mm
● Base Length: 101.6 x 16mm
● Ratchet stop ensures greater repeatability among users
● 4mm diameter measuring rod
● With measuring rod clamp.

TECHNICAL DATA:
● Accuracy: ±3µm for micrometer head feed
● Graduation: 0.01mm
● Flatness of reference face: 1.3 microns for 63.5mm width base, 2 microns for 101.6mm width base
● Flatness of measuring rod face: 0.3 microns
● Parallelism between reference face and measuring rod face: (4+L/50) microns, L=Max. measuring length (mm)
● Measuring rod diameter: 4mm
