Mitutoyo 2109S-10 : Dial Indicator 1mm 0-100-0 Dial-Lug Back

Sold By

NCIEM

(0 customer reviews)

Top Selling Products

Testo 270 Cooking Oil Tester

SAR2,000.00
Hioki DT4222: Digital Multimeter

SAR390.00
Fluke 376 FC True-RMS Clamp Meter with iFlex

SAR2,200.00
HTA102 Sound level Meter with Calibrator

SAR4,000.00
Megger MIT1525 - 15kV Insulation Resistance Tester

SAR30,000.00
RD C.A.T4+ and GENNY4 Underground Radiodetection Cable & Pipe Locator

SAR15,000.00

Description Downloads Reviews

DESCRIPTION:

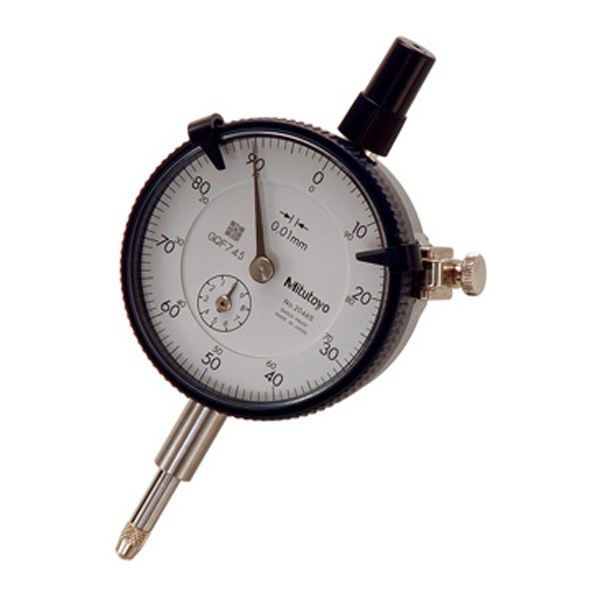

The Mitutoyo 2109S-10 Standard Type Series 2 Dial Indicator has a Lug Back with a range of 1mm and 0.2mm per revolution,0.001mm graduation and 0-100-0 Dial Reading, 8mm Stem and Jeweled Bearings. Features an outer frame with an outside diameter of 57mm. All types come with limit pins and an outer frame clamp as standard. Secured adhesion between the outer frame and crystal as well as the use of an O-ring ensure countermeasures against water and oil permeation via the front face. The stem spindle is made of high-strength quench-hardened stainless steel which resists strenuous use and a carbide contact point is used. The grand gear uses stainless steel that is resistant to wear and deformation an application of hard coating on the surface of the crystal makes the gauge highly scratch as well as chemical resistant.

Download

There have been no reviews for this product yet.
