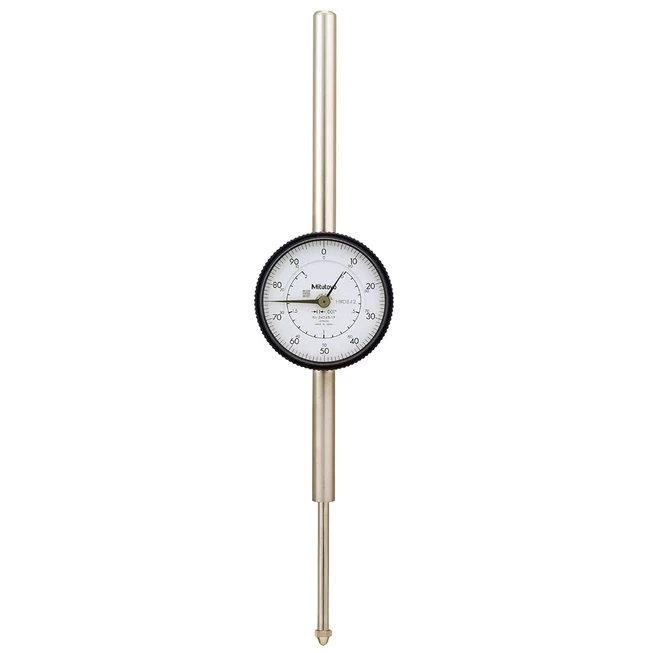

Mitutoyo 2424S-19 : Dial Indicator 2" 0-100 Dial Lug Back

Sold By

NCIEM

(0 customer reviews)

Top Selling Products

Testo 270 Cooking Oil Tester

SAR2,000.00
Hioki DT4222: Digital Multimeter

SAR390.00
HTA102 Sound level Meter with Calibrator

SAR4,000.00
Megger MIT1525 - 15kV Insulation Resistance Tester

SAR30,000.00
RD C.A.T4+ and GENNY4 Underground Radiodetection Cable & Pipe Locator

SAR15,000.00
Flir E8-XT InfraRed Camera with MSX & WiFi

SAR15,000.00

Description Downloads Reviews

DESCRIPTION:

Mitutoyo 2424S-19 Standard Type Series 2 Dial Indicator has an outer frame with an outside diameter of 57mm. All types come with limit pins and an outer frame clamp as standard. Secured adhesion between the outer frame and crystal as well as the use of an O-ring ensure countermeasures against water and oil permeation via the front face. The stem spindle is made of high-strength quench-hardened stainless steel which resists strenuous use and a carbide contact point is used. The grand gear uses stainless steel that is resistant to wear and deformation an application of hard coating on the surface of the crystal makes the gauge highly scratch as well as chemical resistant. This model has Jeweled Bearings and a Lug Back with a range of 2" and 1" per revolution, .001" graduation and 0-100 Dial Reading with a 3/8" Stem.

SPECIFICATION:

● Range: 0-2"
● Graduation: 0.001"
● Range/Rev: 0.1"
● Dial Reading: 0-100
● Type: with lug
● Accuracy (First 2.5 Rev): +/- .001"
● Accuracy (Overall): +/- .003"
● Measuring force: 2.5N or less
● Stem/Shank: 3/8"
● Contact Point: #4-48 UNF Thread
● Shockproof Type: Y
● Reverse Reading Type: N
● Jeweled Bearing Type: Y
● Type: ANSI/AGD
