Mitutoyo 500-506-10 ABSOLUTE Digimatic Caliper 0-24"/ 600mm

Sold By

NCIEM

(0 customer reviews)

Top Selling Products

Testo 270 Cooking Oil Tester

SAR2,000.00
Hioki DT4222: Digital Multimeter

SAR390.00
Fluke 376 FC True-RMS Clamp Meter with iFlex

SAR2,200.00
HTA102 Sound level Meter with Calibrator

SAR4,000.00
Megger MIT1525 - 15kV Insulation Resistance Tester

SAR30,000.00
RD C.A.T4+ and GENNY4 Underground Radiodetection Cable & Pipe Locator

SAR15,000.00

Description Downloads Reviews

DESCRIPTION:

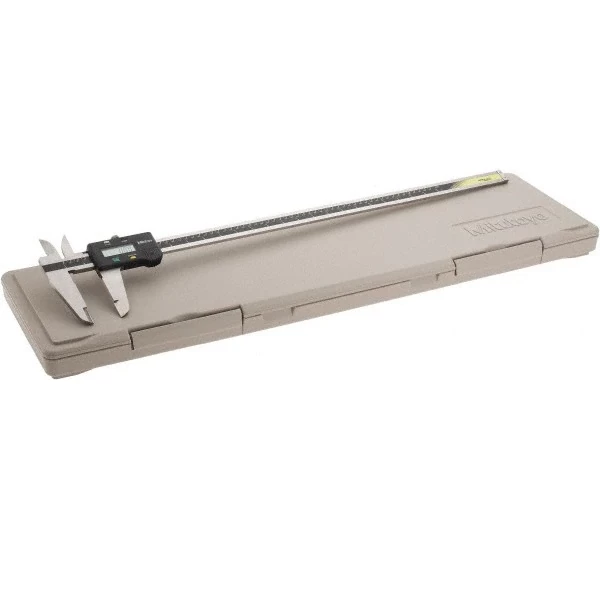

The Mitutoyo 500-506-10 Absolute Digimatic Caliper has a measuring range of 0-24"/ 600mm with .0005"/ 0.01mm resolution. Includes SPC Data Output but does not have Thumb Roller. Features a large, clear LCD readout, inch/metric conversion and a Zero/Absolute key that allows the display to be zero-set at any slider position along the scale for incremental comparison measurements. This switch will also allow return to the absolute (ABS) coordinate and display of the true position from the origin point, which is usually the jaws-closed position.

TECHNICAL DATA:

● Range: 0-600mm / 0-24 inch
● Accuracy: ±0.002”
● Resolution: 0.01mm or .0005"/0.01mm
● Repeatability: 0.01mm / .0005”
● Display: LCD
● Length standard: ABSOLUTE electrostatic capacitance type linear encoder
● Max. response speed: Unlimited
● Battery: SR44 (1 pc.)
● Battery life: Approx. 3.5 years under normal use

Download
