Mitutoyo 513-424-10E : Dial Test Indicator

Sold By

NCIEM

(0 customer reviews)

Top Selling Products

Testo 270 Cooking Oil Tester

SAR2,000.00
Hioki DT4222: Digital Multimeter

SAR390.00
HTA102 Sound level Meter with Calibrator

SAR4,000.00
Megger MIT1525 - 15kV Insulation Resistance Tester

SAR30,000.00
RD C.A.T4+ and GENNY4 Underground Radiodetection Cable & Pipe Locator

SAR15,000.00
Flir E8-XT InfraRed Camera with MSX & WiFi

SAR15,000.00

Description Downloads Reviews

DESCRIPTION:

● Performs easy and accurate measurement of narrow or recessed areas, plus inside and outside diameters that dial indicators cannot access.
● No-clutch structure for automatic reversal of measuring direction.
● One-piece bezel and crystal design with O-ring provide resistance to water and dust.
● The glare-free flat crystal face has a scratch-resistant coating.
● High sensitivity and quick response because of jeweled bearings.
● Standard carbide contact point provide.

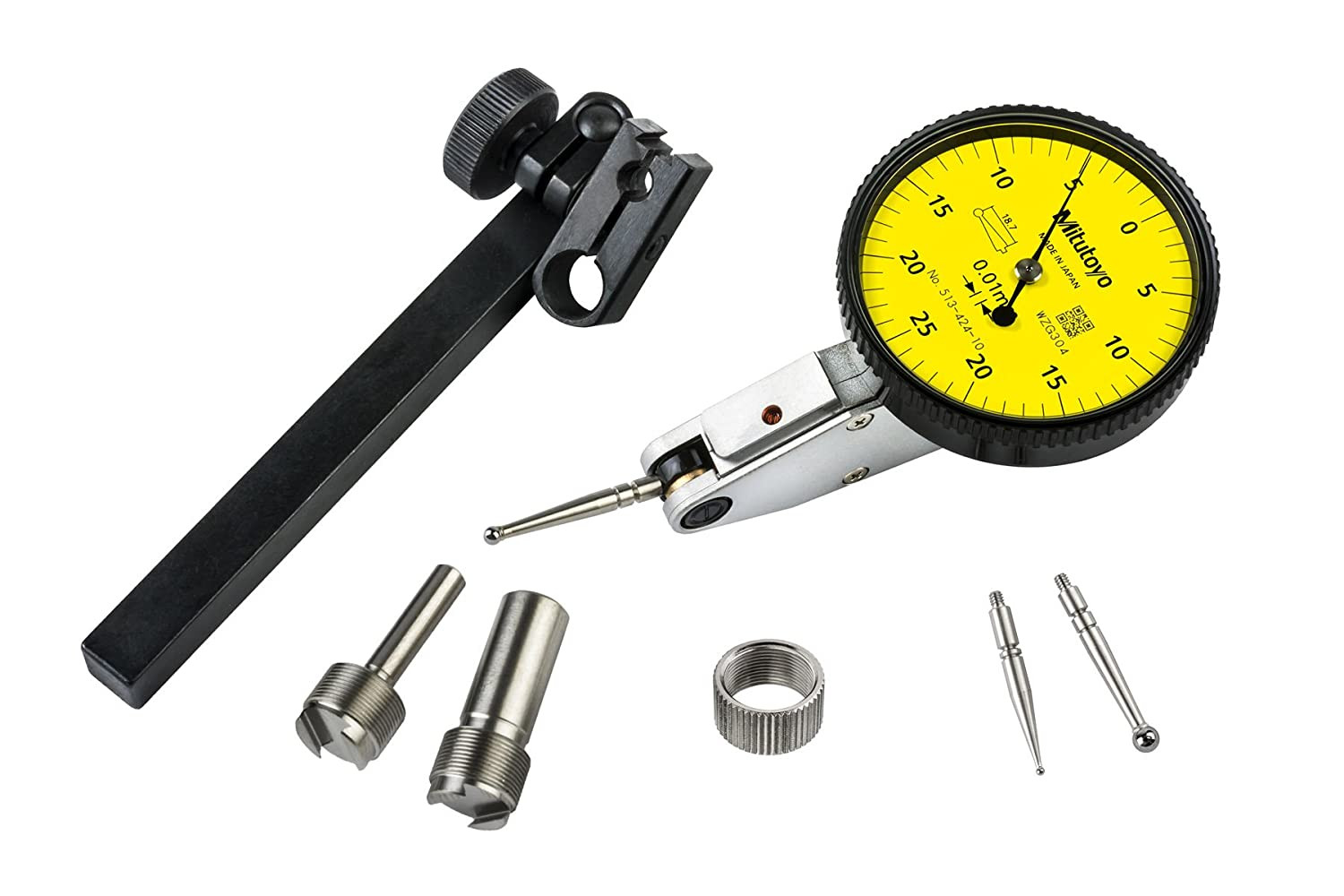

● Basic Set includes test indicator with 2mm Contact Point, knurled clamp ring, and dovetail with 8mm Stem
● Full Set includes test indicator with 2mm diameter contact point, 1mm dia. carbide contact point, 3mm dia. carbide contact point, Dovetail with 4mm Stem, Swivel Clamp, and 100mm Holding Bar

SPECIFICATION:

● Range: 0.5mm
● Graduation: 0.01mm
● Accuracy: 5µm
● Dial Reading: 0-25-0
● Measuring Force: 0.3N or less
● Length: 22.3mm
● Anti-magnetic
● Double Scale Spacing, easy to read
● Jeweled Bearing
