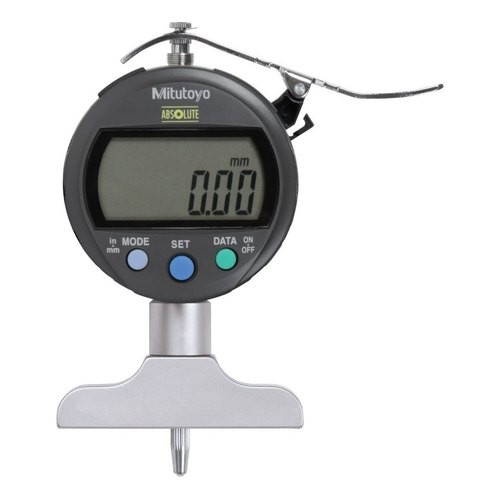

Mitutoyo 547-252 Absolute Digimatic Depth Gage, Range 0-200mm

Sold By

NCIEM

(0 customer reviews)

Top Selling Products

Testo 270 Cooking Oil Tester

SAR2,000.00
Hioki DT4222: Digital Multimeter

SAR390.00
HTA102 Sound level Meter with Calibrator

SAR4,000.00
Megger MIT1525 - 15kV Insulation Resistance Tester

SAR30,000.00
RD C.A.T4+ and GENNY4 Underground Radiodetection Cable & Pipe Locator

SAR15,000.00
Emerson 475 FP-1-E-KL-U-GMT-S HART Field Communicator, Foundation Field Bus, Bluetooth , ATEX

SAR30,000.00

Description Downloads Reviews

The Mitutoyo 547-252 Absolute Digimatic Depth Gage has the following specifications:

• Range: 0-200mm
• Stroke: 12mm
• Resolution: 0.001mm
• Accuracy: +/- 0.005mm
• Flatness: .002mm
• Extension Rods: 5 Pcs. (10, 20, 30, 30, 100mm)
• Base Dimensions: 101.6 x 16mm
• Contact Point: Carbide
• Measuring Force: 1.4N

Features:

• Absolute Digimatic Depth Gage can keep track of the origin point, once set, for the life of the battery
• With SPC Output
• Wide probing range is available with supplied extension rods
• Bottom surface of the base is hardened ground and lapped for highest degree of flatness

Technical Data:

• Dial reading: 0.01mm or 0.001mm
• Flatness of base face: 5um or 2um
• Display: LCD
• Battery: SR44 (1pc)
• Battery Life: Approx. 3.5 years under normal use
