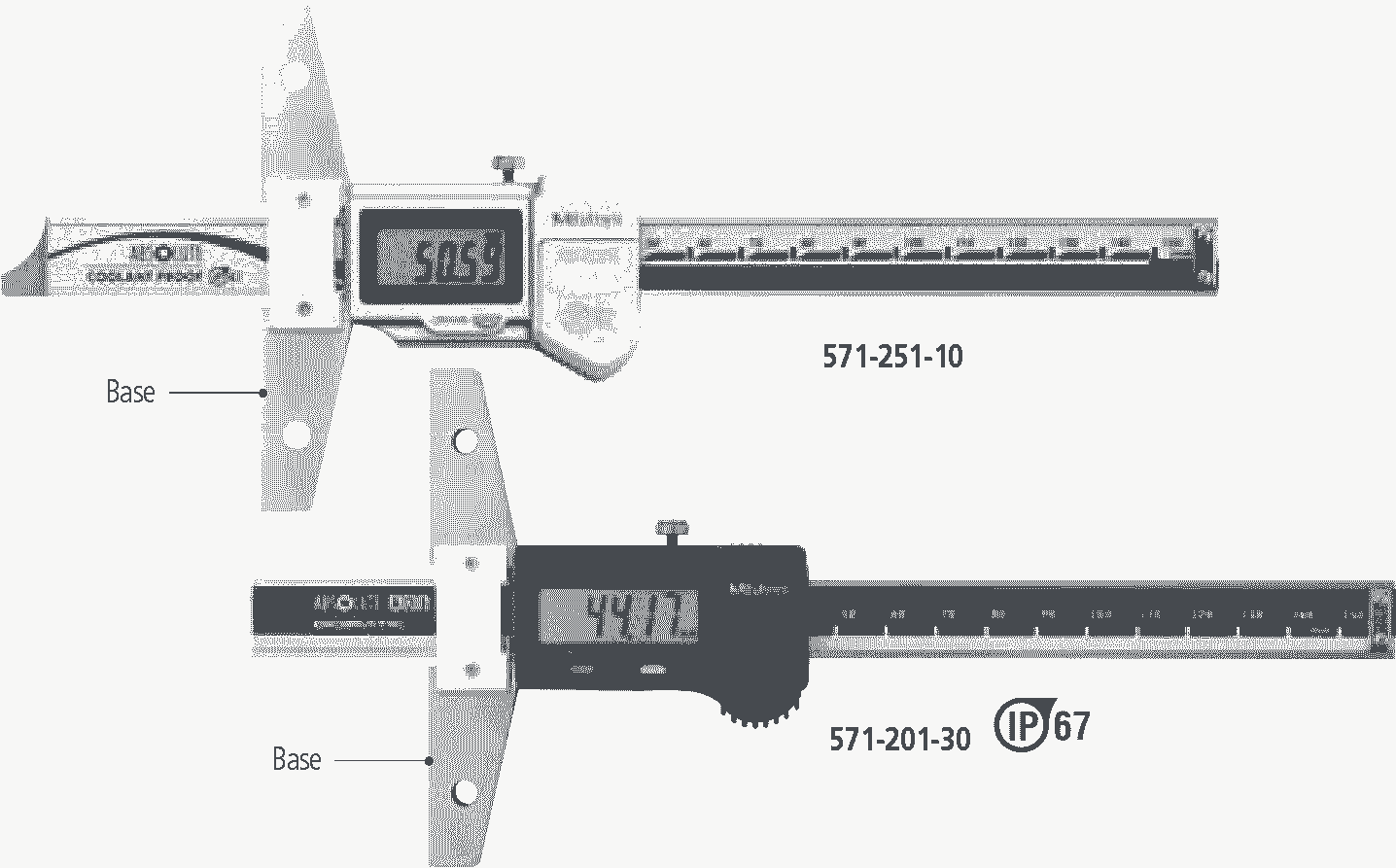

Mitutoyo 571-213-30 digimatic depth gage is constructed of hardened stainless steel and is ideal for use on the shop floor. Measurements are displayed on a digital LCD readout with SPC output for easy, automatic recording. The Mitutoyo ABSOLUTE Digimatic depth gage features hardened, micro-lapped measuring faces and a base for improved accuracy and wear resistance.

SPECIFICATIONS:

Range: 0-12″/300mm
Resolution: 0.0005″/0.01mm
Accuracy: +/- 0.0015″
Mass (g): 310

FEATURES:

• Available in Metric and Inch/Metric models
• Optional wider extension bases are available (up to 18″/450mm range models)
• Convenient mounting holes included on the base for repeatable accuracy
• Keeps track of the origin point for the life of the battery
• SPC output function with optional water-resistant SPC cable allows for quick and easy data management in real time
• ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on; overspeed errors are also eliminated
• Functions include Origin Set, Zero Setting, Automatic Power On/Off and inch/mm conversion (on inch/metric models only)
• Alarm: Low Voltage, Counting Value Composition Error
• Constructed of hardened stainless steel for better durability and longevity
Some models are IP67 protected which eliminates dust ingress, protects against temporary water submersion; permits use in environments exposed to cutting oil, dust, etc.
• Unnecessary to wipe or clean the scale
• Supplied with a fitted plastic case
