PEL103 Power & Energy Logger

Sold By

NCIEM

(0 customer reviews)

Top Selling Products

Testo 270 Cooking Oil Tester

SAR2,000.00
Hioki DT4222: Digital Multimeter

SAR390.00
Fluke 376 FC True-RMS Clamp Meter with iFlex

SAR2,200.00
HTA102 Sound level Meter with Calibrator

SAR4,000.00
Megger MIT1525 - 15kV Insulation Resistance Tester

SAR30,000.00
RD C.A.T4+ and GENNY4 Underground Radiodetection Cable & Pipe Locator

SAR15,000.00

Description Downloads Reviews

KEY FEATURES

● Single-phase, split-phase and three-phase installations with or without a neutral, as well as other complex configurations.
● Implementation without cutting off the mains power supply
● BlueTooth, Ethernet and USB communication
● Automatic recognition of the sensors connected
● Recording on SD and SD-HC cards
● Real-time communication with a PC and analysis using PEL Transfer software

PRODUCT OVERVIEW

The PEL 103 is a low cost, simple to use, one, two (split phase) and three phase power/energy data logger. This product is ideal for electricians, engineers and contractors doing work in the area of building and system monitoring and upgrades, as well as residential and overall energy audits. All vital energy data is easily measured, recorded, and analyzed. Reports can be generated with confidence with minimal configuration time and effort (Standard and Customizable Reports supplied).

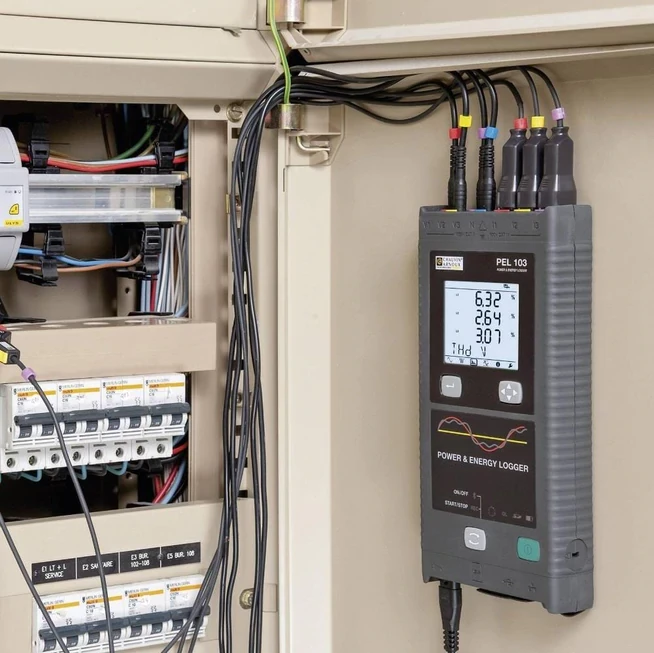

The instrument’s design enables it to be installed inside a load center panel (including the current sensors) allowing the door to close on most panels. The PEL 100 series offers all the essential functions for logging power/energy data from most electrical power networks in use today across the world (17 network set-ups provided). The PEL 100 series energy loggers measure and record three True RMS voltage inputs and current inputs, Watts, VARS, VA and Energy (kWh and kVA). Power Factor (PF), Displacement Power Factor (DPF), Crest Factor, Frequency and THD are calculated and recorded as well. Individual harmonic % information from 1 to the 50th harmonic are recorded at the operator’s choice. All variables are recorded and stored at a one second interval and on user selectable demand intervals from 1 to 60 minutes.
