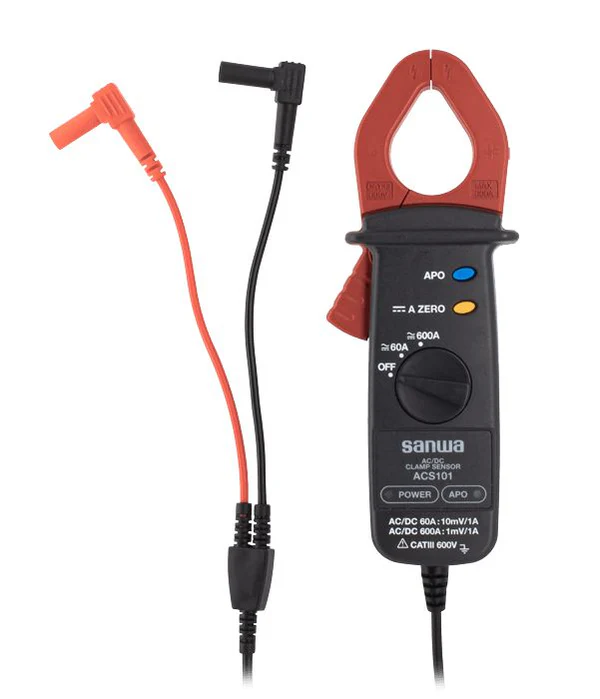

Sanwa ACS101 Clamp Current Sensor

Sold By

NCIEM

(0 customer reviews)

Top Selling Products

Testo 270 Cooking Oil Tester

SAR2,000.00
Hioki DT4222: Digital Multimeter

SAR390.00
HTA102 Sound level Meter with Calibrator

SAR4,000.00
Megger MIT1525 - 15kV Insulation Resistance Tester

SAR30,000.00
RD C.A.T4+ and GENNY4 Underground Radiodetection Cable & Pipe Locator

SAR15,000.00
Flir E8-XT InfraRed Camera with MSX & WiFi

SAR15,000.00

Description Downloads Reviews

Description
The Sanwa ACS101 is a clamp current sensor designed for measuring both AC and DC current up to 600A. This accessory works in conjunction with a compatible digital multimeter, converting the measured current into a voltage output that the multimeter can display.

Key Features
Measurement range: Measures AC and DC current from 0.5A to 600A.
Voltage limitation: Designed for use on low-voltage electric circuits, equipment, and facilities of 600V or less.
Output: Provides a full-scale 600mV AC or DC voltage output to a connected multimeter.
DCA zero function: Features a button-operated "zero adjustment" to ensure accurate DC current measurements.
Auto power-off: Has an automatic power-off function that activates after approximately 20 minutes to save battery life. This feature can be overridden.
Jaw opening: The clamp has a maximum opening diameter of about 30 mm, which accommodates cables up to that size.
Power source: Uses two AAA batteries (1.5V x 2) for power.
Dimensions and weight: Measures approximately 190 (H) × 71 (W) × 37 (D) mm and weighs about 260 g, including batteries.
Included components: Typically comes with an instruction manual.

Download
