Description

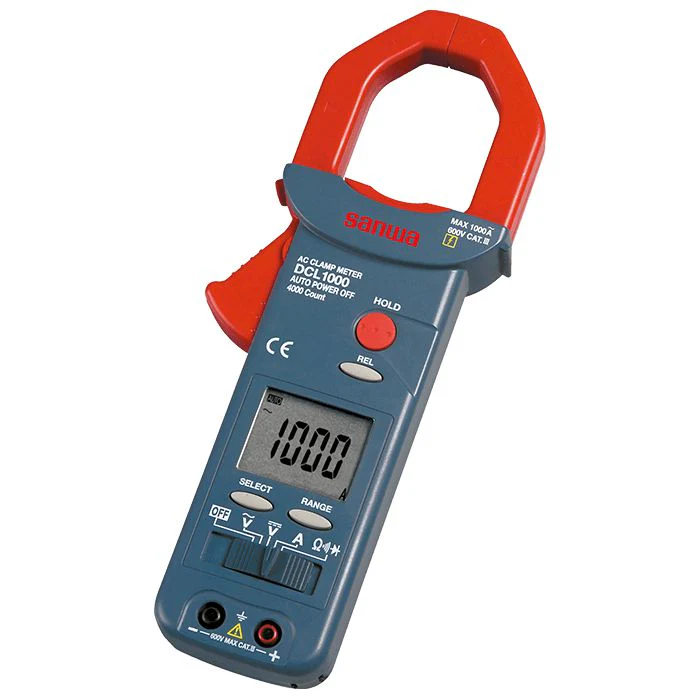

The Sanwa DCL1000 is a lightweight, digital AC clamp meter with a large jaw diameter, designed for electrical professionals. It can measure AC current up to 1000A, and its functionality includes standard digital multimeter (DMM) measurements such as AC/DC voltage and resistance.

Key Features
Measurement functions: AC current up to 1000A, AC/DC voltage up to 600V, resistance up to 40 MΩ, continuity check with buzzer, and diode test.
Safety rating: IEC61010 CAT.III 600V, making it suitable for low-voltage circuitry, equipment, and power supply facilities.
Jaw diameter: Measures 42mm in diameter (or 20 x 54mm) to accommodate large conductors.
Display: A large, easy-to-read LCD screen with a 4000-count display.
Portability: Weighs approximately 290g, making it significantly lighter than many comparable clamp meters.
Power source: Runs on two R03 (AAA) batteries, with a life of approximately 120 hours when measuring DC voltage.
Special Aspects:
1. Data Hold: Freezes the display reading for convenience.
2. Range Hold: Manually fixes the measurement range.
3. Relative Measurement: Allows for relative value measurements.
4. Auto Power Off: Powers down automatically after 30 minutes of inactivity to save battery.
