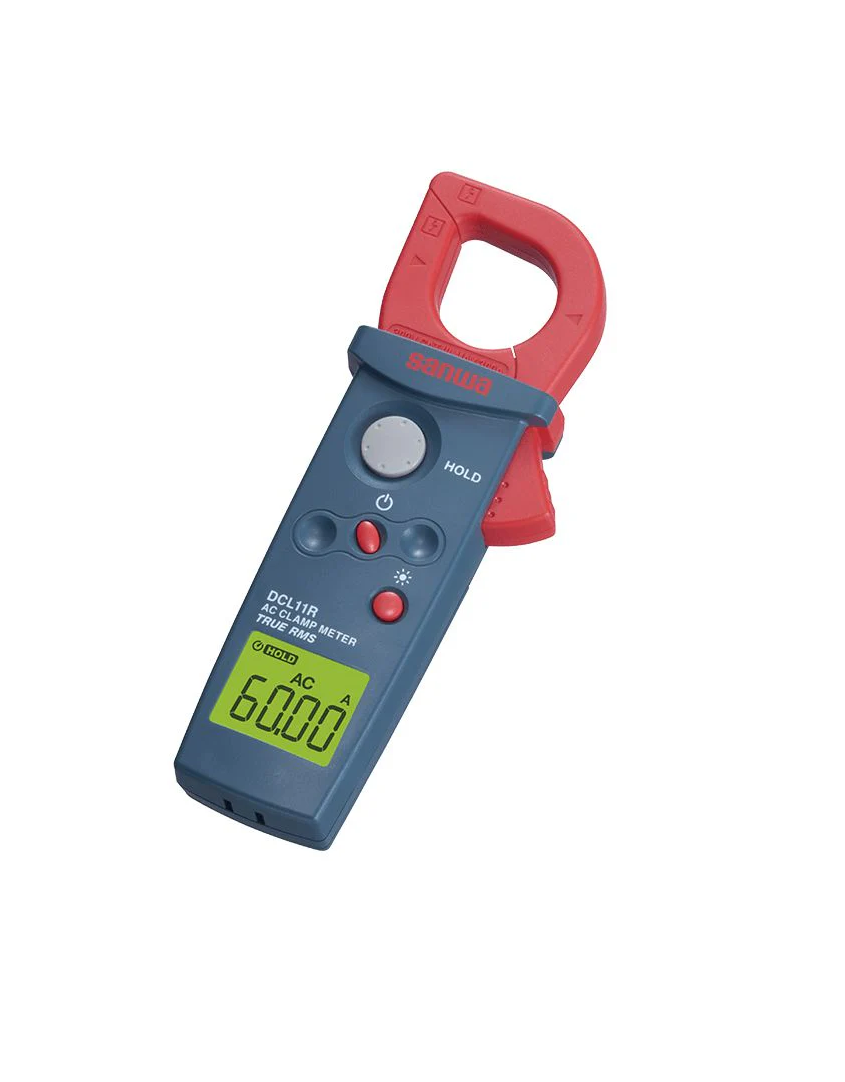

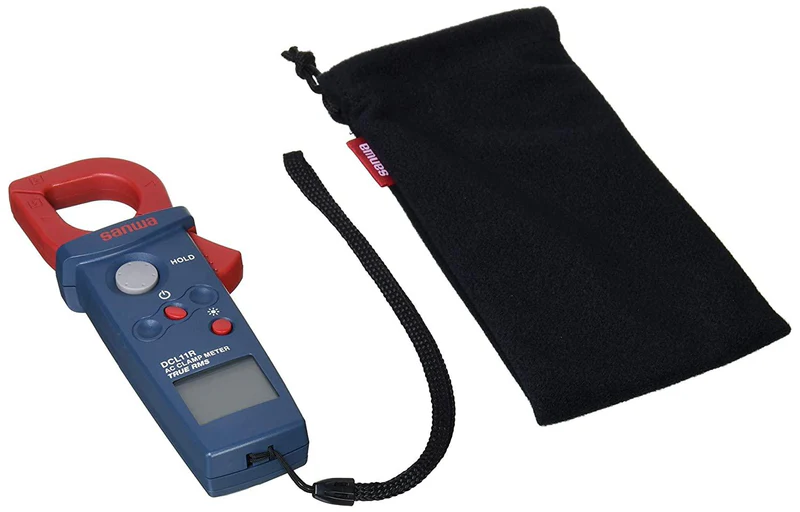

Sanwa DCL11R True RMS Mini Clamp Meter with Backlight

Sold By

NCIEM

(0 customer reviews)

Top Selling Products

Testo 270 Cooking Oil Tester

SAR2,000.00
Hioki DT4222: Digital Multimeter

SAR390.00
HTA102 Sound level Meter with Calibrator

SAR4,000.00
Megger MIT1525 - 15kV Insulation Resistance Tester

SAR30,000.00
RD C.A.T4+ and GENNY4 Underground Radiodetection Cable & Pipe Locator

SAR15,000.00
Flir E8-XT InfraRed Camera with MSX & WiFi

SAR15,000.00

Description Downloads Reviews

Description
The Sanwa DCL11R is a compact, pocket-sized True RMS mini clamp meter designed to measure AC current in low-voltage power lines and appliances. True RMS capability allows it to accurately measure non-sinusoidal waveforms, which are common in many modern electronic devices.

Key Features
Compact size: The meter has a slim body and a mini CT (current transformer) sensor, making it easy to use in tight wiring spaces. Its dimensions are approximately 145mm x 54mm x 31mm, and it weighs around 120g.
True RMS conversion: Accurately measures the AC current and voltage of distorted or non-linear waveforms.
6000-count display with backlight: The high-resolution display shows measurements clearly, even in poorly lit environments. The backlight automatically turns off after 10 seconds to conserve battery life.
Data hold function: This feature fixes the measured value on the display, so you can record the reading even after removing the test leads.
Auto power off: The meter automatically turns off after about 15 minutes of inactivity. This function can be canceled.
Safety rating: It is rated for IEC61010 CAT. III 300V, making it safe for use on many low-voltage electrical systems.
High maximum input: The clamp sensor has a maximum input current rating of 320A with a max overload protection of 350A.
Long battery life: The meter operates on two AAA (LR03) batteries, providing a battery life of approximately 500 hours.

Download

There have been no reviews for this product yet.
