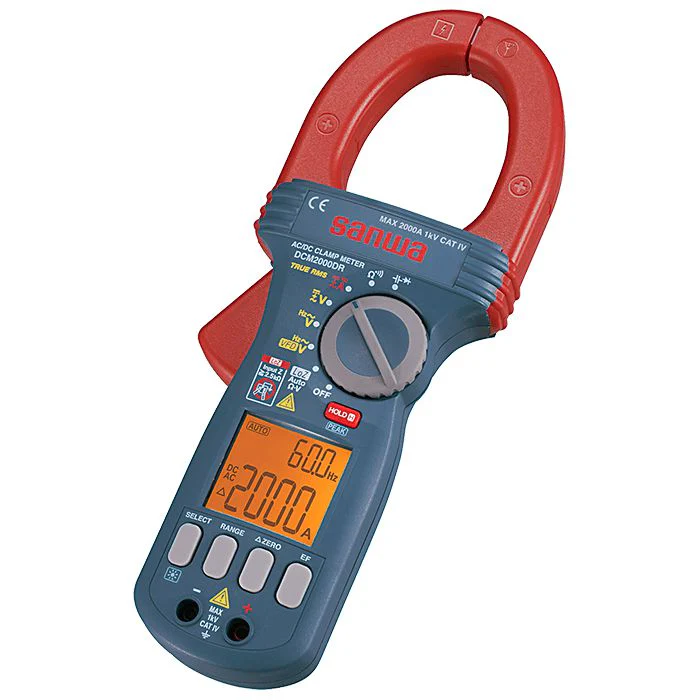

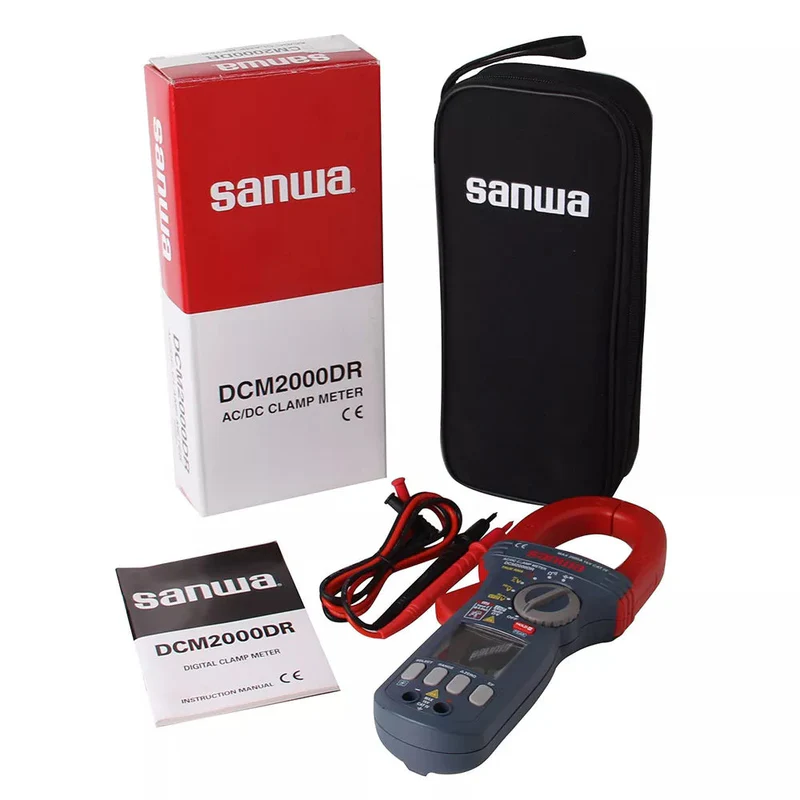

Sanwa DCM2000DR Clamp Meter AC/DC Max Current 2000A

Sold By

NCIEM

(0 customer reviews)

Top Selling Products

Testo 270 Cooking Oil Tester

SAR2,000.00
Hioki DT4222: Digital Multimeter

SAR390.00
HTA102 Sound level Meter with Calibrator

SAR4,000.00
Megger MIT1525 - 15kV Insulation Resistance Tester

SAR30,000.00
RD C.A.T4+ and GENNY4 Underground Radiodetection Cable & Pipe Locator

SAR15,000.00
Flir E8-XT InfraRed Camera with MSX & WiFi

SAR15,000.00

Description Downloads Reviews

Description
The Sanwa DCM2000DR is a robust, True RMS digital clamp meter capable of measuring both AC and DC current up to 2000A. It is a versatile tool for electricians and industrial technicians, as it also includes digital multimeter (DMM) functions and a high safety rating.

Key Features
Max Current: 2000A AC/DC.
Safety Rating: CAT IV 1000V, suitable for use in high-voltage industrial environments.
Measurements: True RMS sensing for accurate readings on non-sinusoidal waveforms.
Display: 6000-count dual LCD with a backlight, showing current/voltage and frequency simultaneously.
Jaw Size: 55mm clamp diameter to accommodate large conductors.
Electric Field (EF) Sensing: Non-contact AC voltage detection for added safety.
VFD Measurement: A low-pass filter and Variable Frequency Drive (VFD) frequency measurement capability allow for stable readings in noisy electrical environments.
Ghost Voltage Attenuation: A low-input impedance voltage measurement mode helps to ignore or "attenuate" ghost voltage, which can cause misleading readings.
Peak Hold: Captures transient peak currents, such as in-rush current, with a 5-millisecond interval.
Auto Power Save: Extends battery life by turning off the meter after 30-34 minutes of inactivity (this feature can be canceled).
Hold Functions: Includes data hold, range hold, and a relative value function for capturing and comparing measurements.
DMM Functions: The meter includes a full suite of multimeter functions, such as: AC/DC voltage measurement up to 1000V, Resistance (up to 40 MΩ), Capacitance (up to 2000 µF), Frequency (up to 1999 Hz), Diode test and continuity check with buzzer.

Download

There have been no reviews for this product yet.
