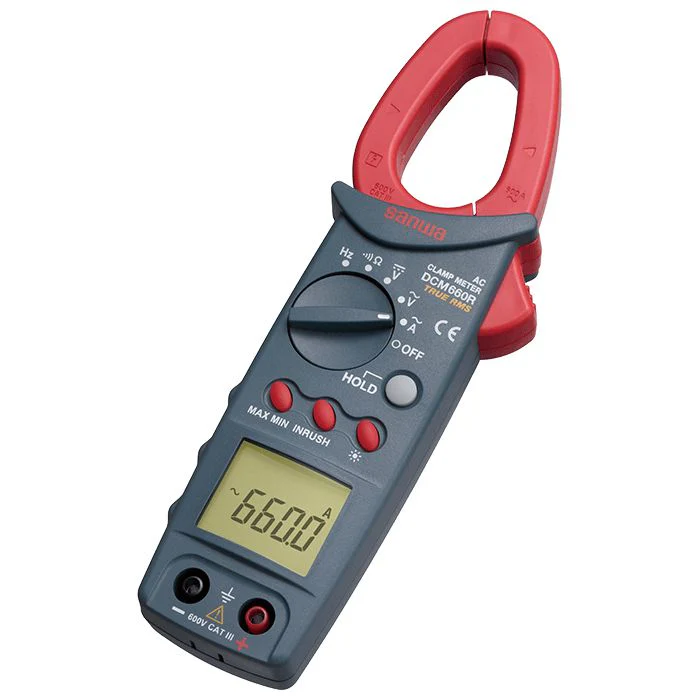

Sanwa DCM660R True RMS Clamp Meter for Electrical and HVAC Work + DMM Functions

Sold By

NCIEM

(0 customer reviews)

Top Selling Products

Testo 270 Cooking Oil Tester

SAR2,000.00
Hioki DT4222: Digital Multimeter

SAR390.00
HTA102 Sound level Meter with Calibrator

SAR4,000.00
Megger MIT1525 - 15kV Insulation Resistance Tester

SAR30,000.00
RD C.A.T4+ and GENNY4 Underground Radiodetection Cable & Pipe Locator

SAR15,000.00
Flir E8-XT InfraRed Camera with MSX & WiFi

SAR15,000.00

Description Downloads Reviews

Description
The Sanwa DCM660R is a True RMS clamp meter designed for electrical and HVAC professionals, combining the functionality of both a clamp meter and a digital multimeter (DMM). Its True RMS capability ensures accurate measurements for both standard and distorted electrical waveforms.

Key Features
True RMS: This feature allows for accurate measurements on non-sinusoidal waveforms, such as those found in variable speed drives and other electronics.
DMM functions: The device includes test leads for performing standard multimeter functions, such as voltage and resistance tests.
Large backlit LCD: The 6600-count digital display has a backlight for easy reading in dark or poorly lit environments.
Hold functions:
1. Data Hold: Freezes the current reading on the display for convenient reference.
2. Max/Min Hold: Captures and displays the maximum and minimum values detected during a measurement session.
Auto Power Save: To conserve battery life, the meter automatically turns off after 15 minutes of inactivity. This feature is non-cancellable on this model.
Safety rating: The DCM660R is safety compliant with the IEC61010-1 standard and rated for CAT III 600V environments.

Download

There have been no reviews for this product yet.
