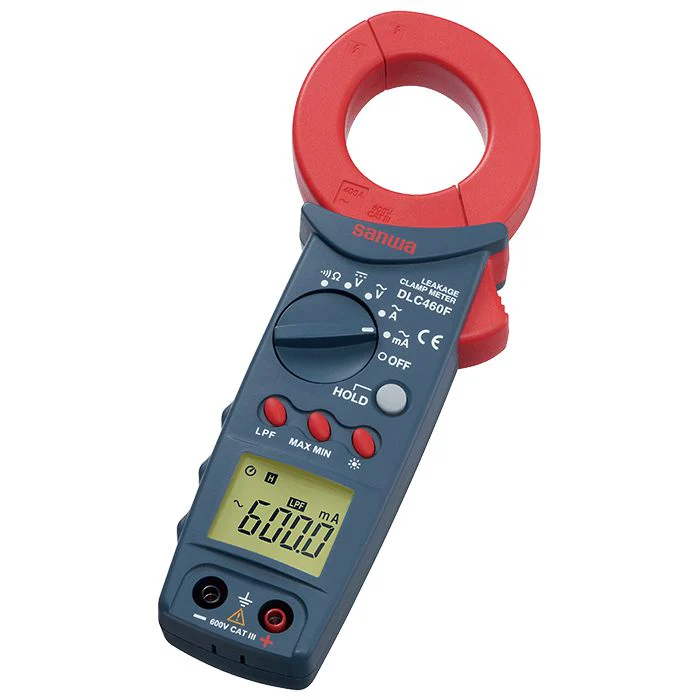

Sanwa DLC460F Multifunctional Leakage Clamp Meter

Sold By

NCIEM

(0 customer reviews)

Top Selling Products

Testo 270 Cooking Oil Tester

SAR2,000.00
Hioki DT4222: Digital Multimeter

SAR390.00
HTA102 Sound level Meter with Calibrator

SAR4,000.00
Megger MIT1525 - 15kV Insulation Resistance Tester

SAR30,000.00
RD C.A.T4+ and GENNY4 Underground Radiodetection Cable & Pipe Locator

SAR15,000.00
Flir E8-XT InfraRed Camera with MSX & WiFi

SAR15,000.00

Description Downloads Reviews

Description
The Sanwa DLC460F is a digital leakage clamp meter designed to measure leakage and load currents in power lines, as well as handle standard multimeter functions in CAT. III environments. It features a low-pass filter (LPF) for accurate readings by eliminating high-frequency noise.

Key features
Display: 6000-count liquid-crystal display (LCD) with a backlight for visibility in dark areas.
Low-pass filter (LPF): Attenuates high-frequency noise in AC current measurements for greater accuracy.
Data hold: Freezes the current reading on the display for easy reference.
Max/Min value hold: Records the maximum and minimum measured values.
Auto power save: Automatically shuts off after 30 minutes of inactivity to conserve battery life, a feature which can also be canceled.
Safety rating: IEC61010-1 CAT. III 600V compliant, suitable for measuring low-voltage circuits.
Jaw size: Has a clamp diameter of 35mm, allowing it to fit around conductors up to that size.
Power supply: Operates on two LR03 (AAA) batteries.
Dimensions: Approximately H206 x W83 x D38 mm and weighs about 320g.

Download

There have been no reviews for this product yet.
