Description

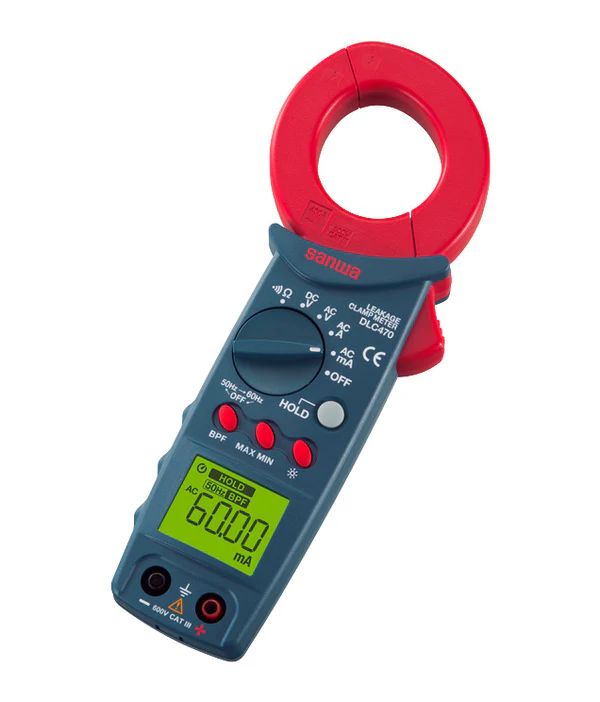

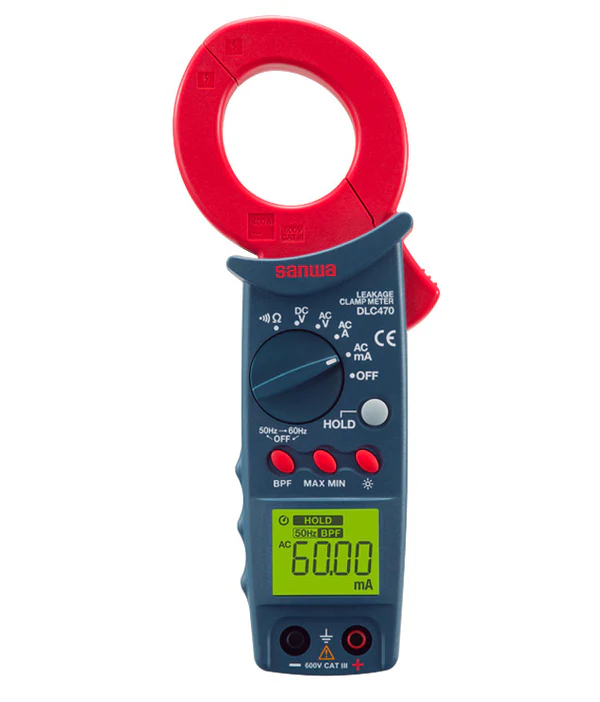

The Sanwa DLC470 is a digital, multifunctional leakage clamp meter designed to measure very low-level AC currents, such as those caused by leakage. It is also capable of measuring higher AC and DC currents, as well as voltage and resistance, making it a versatile tool for electricians and maintenance professionals.

Key Features
High-resolution leakage measurement: Measures alternating current (AC) down to a resolution of 0.01mA, which is essential for detecting subtle leakage and insulation issues.
Multi-functionality: In addition to leakage current, the DLC470 can measure a range of electrical parameters:
1. AC Current (ACA): Up to 400A.
2. AC/DC Voltage (ACV/DCV): Up to 600V.
3. Resistance: Up to 999.9Ω.
4. Continuity: A buzzer sounds to indicate an electrically conductive circuit.
Band-pass filter (BPF): Attenuates high-frequency noise outside the 50/60 Hz range to ensure more accurate readings of ACmA and ACA.
Max/Min Hold: Records and displays the maximum and minimum measured values.
Data Hold: Freezes the current reading on the display for easy reference.
Backlit LCD Display: Allows for easy reading in low-light conditions.
Auto Power Off: The meter automatically turns off after a period of inactivity to save battery life. This function can be disabled.
Safety Rating: Rated as IEC61010-1 CAT. III 600V, ensuring safe operation in many electrical environments.
