Sanwa DM1009S 1000V Portable Insulation Resistance Meter

Sold By

NCIEM

(0 customer reviews)

Top Selling Products

Testo 270 Cooking Oil Tester

SAR2,000.00
Hioki DT4222: Digital Multimeter

SAR390.00
HTA102 Sound level Meter with Calibrator

SAR4,000.00
Megger MIT1525 - 15kV Insulation Resistance Tester

SAR30,000.00
RD C.A.T4+ and GENNY4 Underground Radiodetection Cable & Pipe Locator

SAR15,000.00
Flir E8-XT InfraRed Camera with MSX & WiFi

SAR15,000.00

Description Downloads Reviews

Description

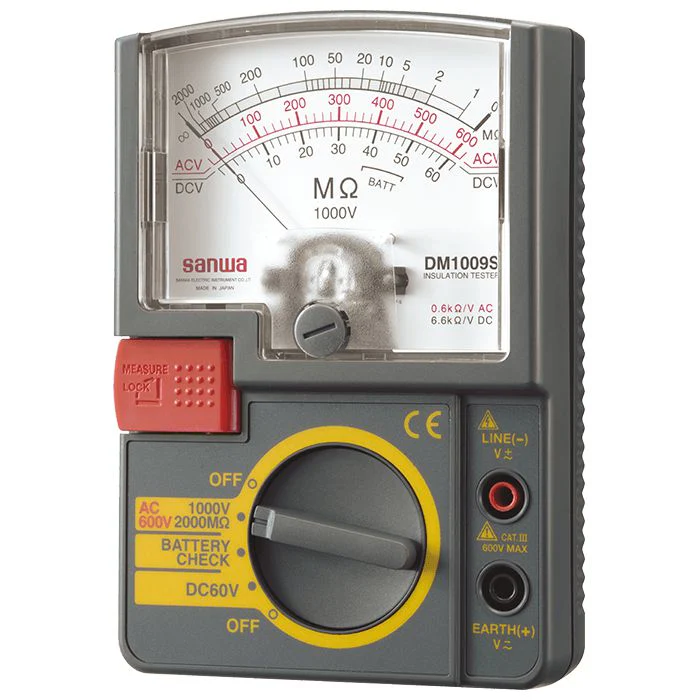

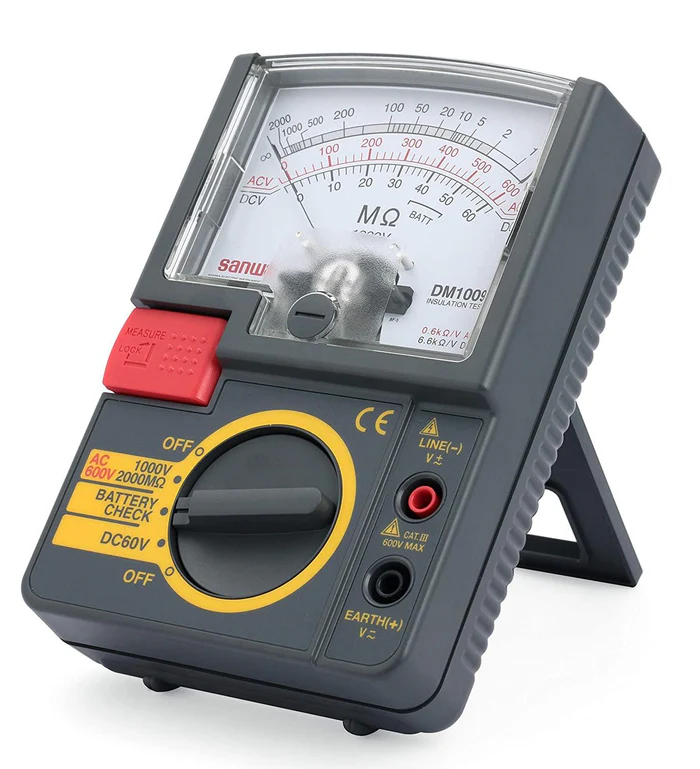

The Sanwa DM1009S is a portable, analog insulation resistance meter (also known as a megohmmeter) that can apply a test voltage of up to 1000V DC. It is used to measure the insulation resistance of electric lines and equipment.

Key Features
Insulation Resistance Testing: The DM1009S can test insulation resistance with a 1000V DC test voltage, and has a measurement range of up to 2000 MΩ.
Voltage Measurement: It also functions as a voltmeter, with ranges for both AC and DC voltage. (AC Voltage: 0–600V AC), (DC Voltage: 0–60V DC).
Analog Display: Unlike digital meters, this model features an analog pointer display for clear, easy-to-read measurements.
Auto-Discharge Function: The meter automatically discharges any residual voltage in the circuit after a test, enhancing user safety.
Overload Protection: It is rated for safety up to CAT III 600V.
Measurement Modes: A push switch allows for either one-shot or continuous measurement.
Portability: With a compact and lightweight design (approx. 310g without battery), the DM1009S is highly portable. It comes with a carrying case and shoulder strap for convenient transport.
Battery Check: The meter includes a built-in function to check the internal battery's condition.

Download

There have been no reviews for this product yet.
