Sanwa DM509S 500V Portable Insulation Resistance Meter

Sold By

NCIEM

(0 customer reviews)

Top Selling Products

Testo 270 Cooking Oil Tester

SAR2,000.00
Hioki DT4222: Digital Multimeter

SAR390.00
HTA102 Sound level Meter with Calibrator

SAR4,000.00
Megger MIT1525 - 15kV Insulation Resistance Tester

SAR30,000.00
RD C.A.T4+ and GENNY4 Underground Radiodetection Cable & Pipe Locator

SAR15,000.00
Flir E8-XT InfraRed Camera with MSX & WiFi

SAR15,000.00

Description Downloads Reviews

Description

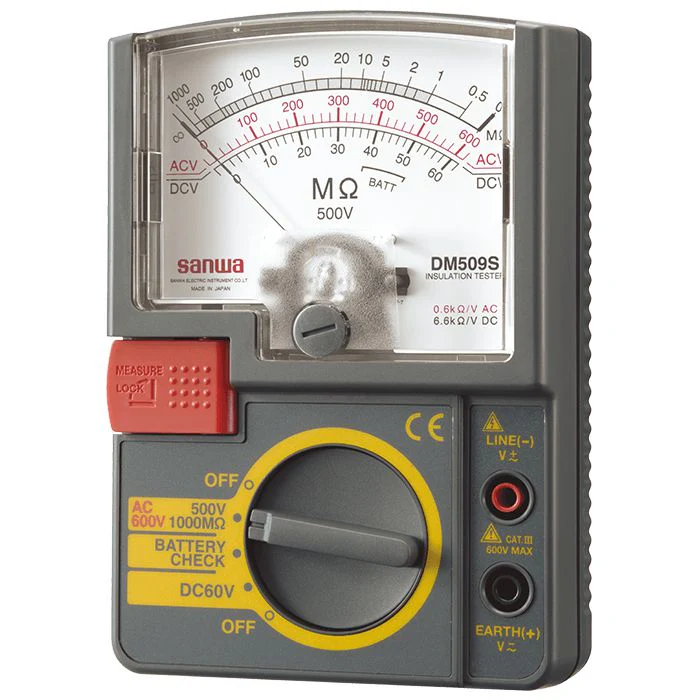

The Sanwa DM509S is a portable analog insulation tester designed to measure insulation resistance in electrical lines and equipment. It applies a 500V DC test voltage and provides readings on an analog, taut-band meter display.

Key Features
Analog display: The meter uses a taut-band meter, a sensitive analog movement that provides a clear visual indication of measurement results.
Measurement modes: It offers both "one-shot" and "continuous" measurement capabilities, allowing for flexible testing methods.
Auto-discharge: A built-in function automatically discharges the voltage stored in the circuit after a test, a key safety feature.
Built-in voltage measurements: In addition to insulation resistance, the DM509S can also measure AC voltage up to 600V and DC voltage up to 60V.
Battery check: The meter has a range for checking the status of its own battery.
Safety rating: The unit is certified to IEC61010-1 and CAT.III 600V standards, and has an IP20 rating for dust protection.

Download

There have been no reviews for this product yet.
