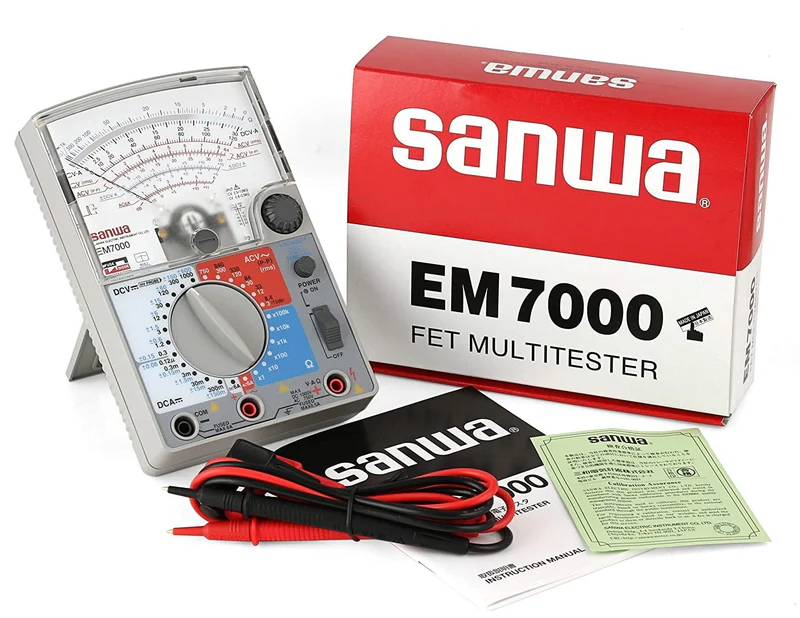

Sanwa EM7000 Analog Multimeter High Sensitivity FET for Measurement of Lower Capacitance

Sold By

NCIEM

(0 customer reviews)

Top Selling Products

Testo 270 Cooking Oil Tester

SAR2,000.00
Hioki DT4222: Digital Multimeter

SAR390.00
HTA102 Sound level Meter with Calibrator

SAR4,000.00
Megger MIT1525 - 15kV Insulation Resistance Tester

SAR30,000.00
RD C.A.T4+ and GENNY4 Underground Radiodetection Cable & Pipe Locator

SAR15,000.00
Flir E8-XT InfraRed Camera with MSX & WiFi

SAR15,000.00

Description Downloads Reviews

Description

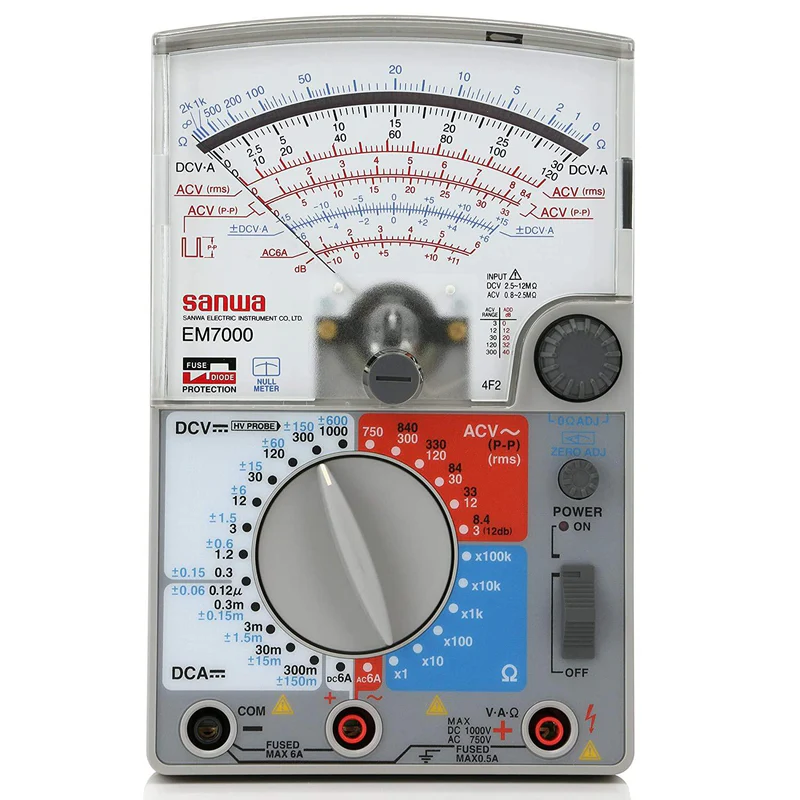

The Sanwa EM7000 is a high-sensitivity FET (Field-Effect Transistor) analog multimeter designed for electronics professionals and hobbyists. Its FET technology provides high input resistance and increased sensitivity, making it particularly useful for low-power circuits and for measuring lower values of capacitance compared to non-FET models.

Key Features
High input resistance: Features a high input resistance for DC voltage measurements (2.5 MΩ to 12 MΩ), which ensures minimal loading on the circuit under test and provides more accurate readings.
Capacitance measurement: Highly sensitive for measuring lower capacitance values, allowing for accurate assessment of components in communication devices and other delicate electronics.
Wide resistance range: Can measure resistance from 0.2Ω up to 200 MΩ, accommodating a broad array of electrical components.
Peak-to-peak measurement: The meter can measure the peak-to-peak values of AC waveforms, a useful feature for analyzing signals like square and triangular waves, with a bandwidth of 40 Hz to 1 MHz.
Zero-center meter: Includes a zero-center or "NULL" function for DC voltage and current, which is helpful for observing and measuring fluctuations in a signal around a specific point.

Download

There have been no reviews for this product yet.
