Sanwa LCR701 Handheld Digital LCR Meter

Sold By

NCIEM

(0 customer reviews)

Top Selling Products

Testo 270 Cooking Oil Tester

SAR2,000.00
Hioki DT4222: Digital Multimeter

SAR390.00
HTA102 Sound level Meter with Calibrator

SAR4,000.00
Megger MIT1525 - 15kV Insulation Resistance Tester

SAR30,000.00
RD C.A.T4+ and GENNY4 Underground Radiodetection Cable & Pipe Locator

SAR15,000.00
Flir E8-XT InfraRed Camera with MSX & WiFi

SAR15,000.00

Description Downloads Reviews

Description

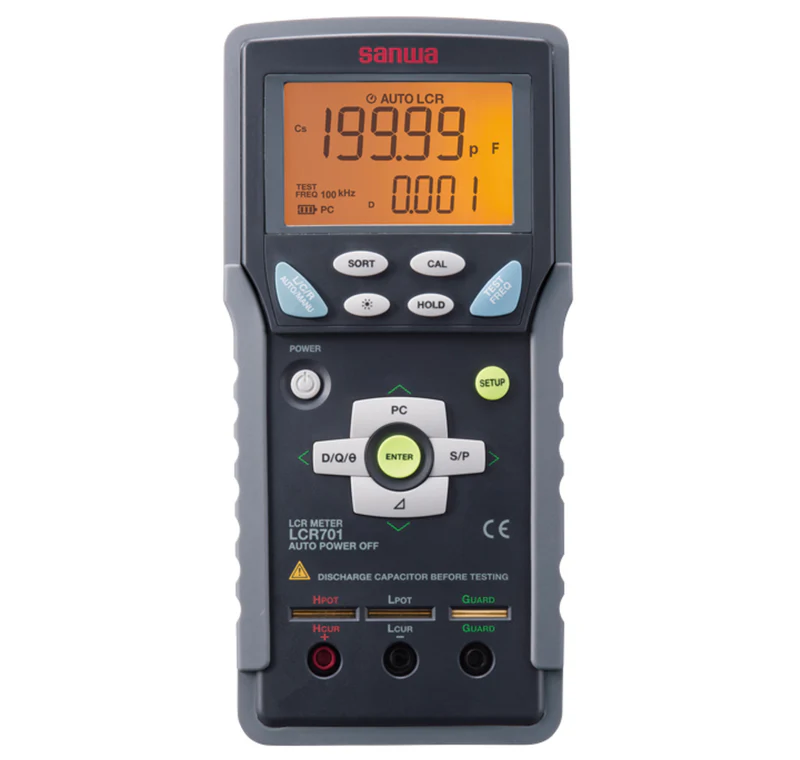

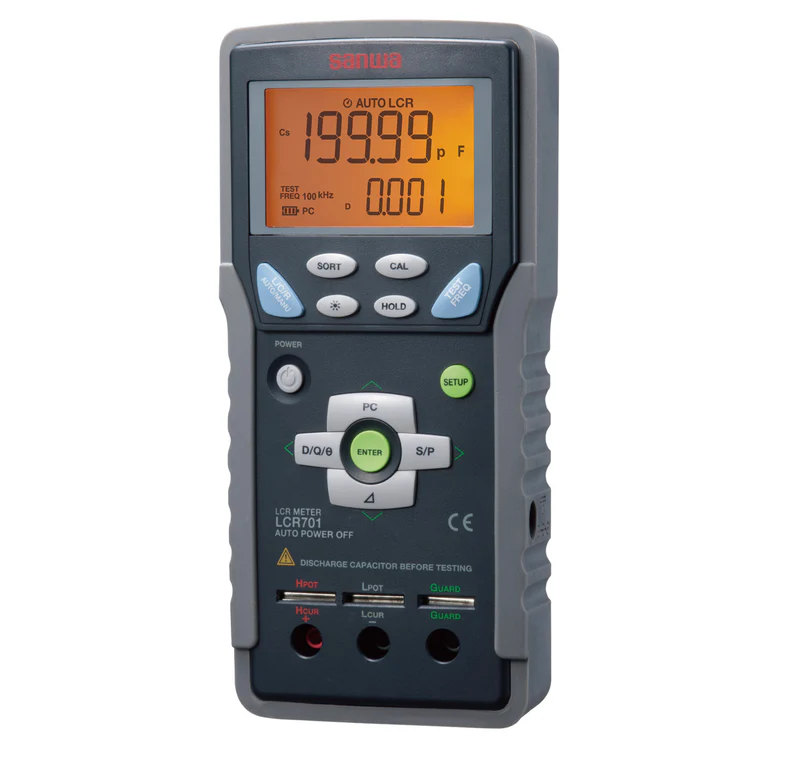

The Sanwa LCR701 is a high-performance handheld digital LCR meter used for accurate measurement of inductance (L), capacitance (C), and resistance (R). It is a versatile and portable device with advanced features that rival many benchtop LCR meters.

Key Features
Automatic L/C/R selection: The meter can automatically identify and select the correct measurement function for a component, making it easy to use.
Multiple test frequencies: It can perform measurements at five different frequencies: 100 Hz, 120 Hz, 1 kHz, 10 kHz, and 100 kHz.
Series/Parallel measurement mode: The LCR701 offers both selectable series and parallel measurement modes to accurately characterize components.
Device sorting mode: This feature allows users to quickly sort passive components for incoming inspections or quality control by setting PASS/FAIL thresholds.
DC resistance (DCR) function: The meter can measure DC resistance across seven different ranges, from 200.00 Ω up to 200.0 MΩ.
Open/Short calibration: A calibration function helps to minimize measurement errors caused by test leads and fixtures.
Five-terminal measurement: The unit supports five-terminal measurement (four terminals plus guard shielding), which helps increase accuracy.
PC connectivity (optional): With an optional optical link USB communication unit (LCR-USB) and free software, measurement data can be transferred to a PC.
Additional functions: Includes a data hold function, backlight for low-light conditions, auto power-off, and relative value measurement.
Sub-parameter measurements: In addition to L, C, and R, the meter can measure secondary parameters such as:
1. Dissipation Factor (D): The measure of the loss in a component.
2. Quality Factor (Q): The ratio of a component's reactance to its resistance.
3. Phase Angle (θ): The phase difference between voltage and current.
4. Equivalent Series Resistance (ESR): The total internal resistance of a component.
