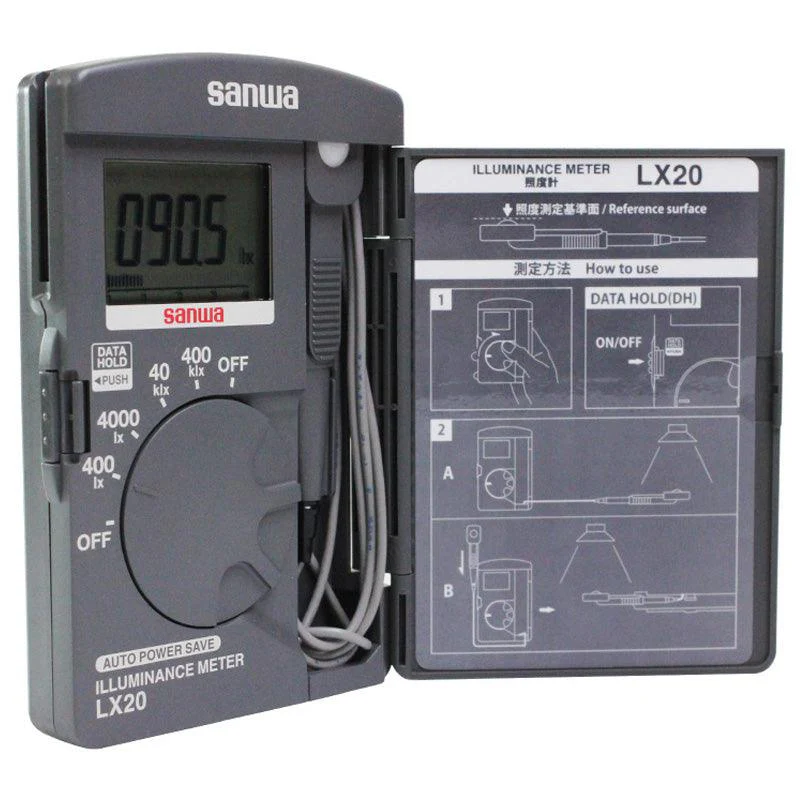

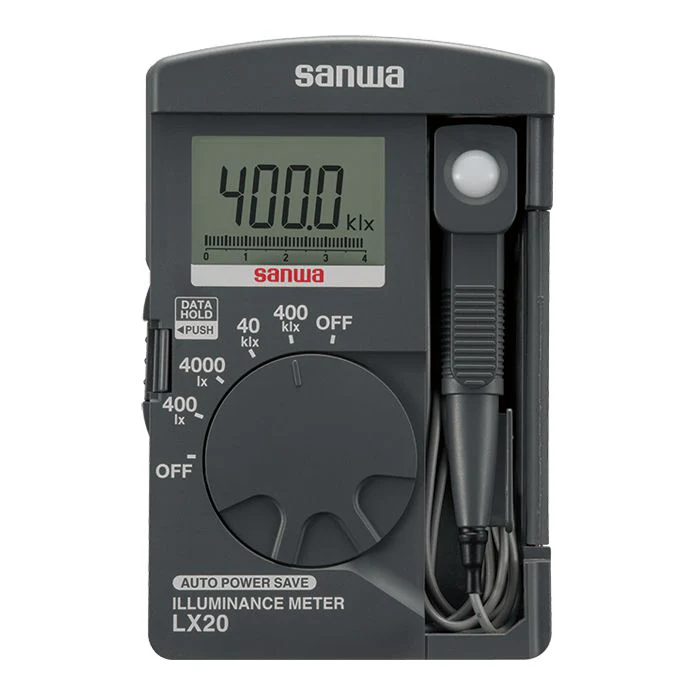

Sanwa LX20 Illuminance Meter

Sold By

NCIEM

(0 customer reviews)

Top Selling Products

Testo 270 Cooking Oil Tester

SAR2,000.00
Hioki DT4222: Digital Multimeter

SAR390.00
HTA102 Sound level Meter with Calibrator

SAR4,000.00
Megger MIT1525 - 15kV Insulation Resistance Tester

SAR30,000.00
RD C.A.T4+ and GENNY4 Underground Radiodetection Cable & Pipe Locator

SAR15,000.00
Flir E8-XT InfraRed Camera with MSX & WiFi

SAR15,000.00

Description Downloads Reviews

Description
The Sanwa LX20 is a compact, pocket-sized illuminance (lux) meter known for its portability and functionality. It is used to measure the brightness of ambient light and is suitable for a wide range of applications, including offices, homes, commercial buildings, and maintenance.

Key Features
Detachable light sensor: The LX20 features a small, stick-shaped sensor (9 mm diameter) that can be extended from the main body by a 900 mm cord. This allows for measurements in narrow spaces or small areas, and the sensor can also be integrated with the main unit for standard measurements.
Broad measurement range: The meter has a wide lux measurement range of 0.1 to 403.9 klx (403,900 lx). The ranges can be switched between 400, 4000, 40,000, and 400,000 lux.
Accurate sensor: The light sensor uses a silicon photodiode with a relative spectral sensitivity that closely approximates the human eye's response, as specified by the CIE (International Commission on Illumination).
Clear display: The meter has a digital display with a 4039-count full-scale readout and a 41-segment analog bar graph, which offers both precise and quick visual information.
Data hold function: This feature lets you freeze the current measured value on the display for easier record-keeping.
Auto power save: To conserve battery life, the meter automatically powers off after 15 minutes of inactivity.
Compact and portable: Weighing approximately 120 grams, its small size allows it to be carried easily in a pocket.
