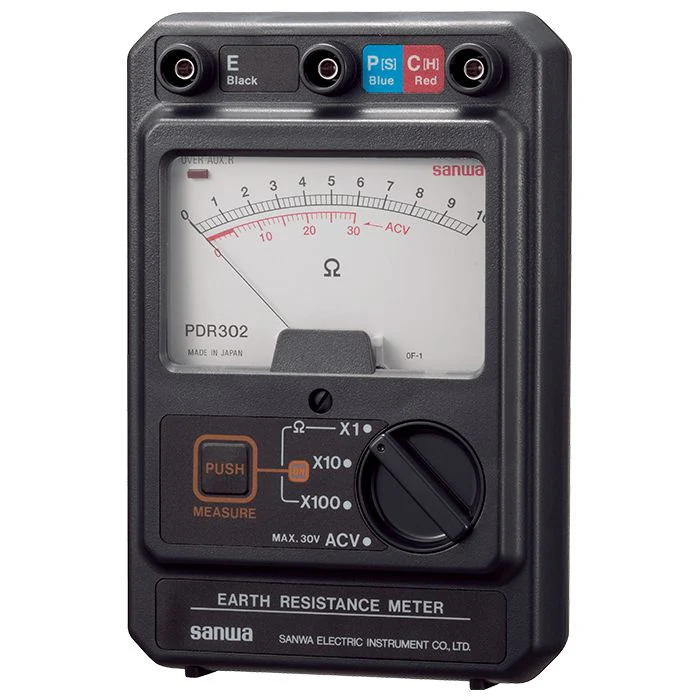

Sanwa PDR302 Portable Earth Tester with Phase Detection

Sold By

NCIEM

(0 customer reviews)

Top Selling Products

Testo 270 Cooking Oil Tester

SAR2,000.00
Hioki DT4222: Digital Multimeter

SAR390.00
HTA102 Sound level Meter with Calibrator

SAR4,000.00
Megger MIT1525 - 15kV Insulation Resistance Tester

SAR30,000.00
RD C.A.T4+ and GENNY4 Underground Radiodetection Cable & Pipe Locator

SAR15,000.00
Flir E8-XT InfraRed Camera with MSX & WiFi

SAR15,000.00

Description Downloads Reviews

Description
The Sanwa PDR302 is a portable analog earth tester with a phase detection system designed for high-precision measurement during electrical maintenance and construction work. The device measures earth resistance using a constant-current system and also functions as an AC voltmeter.

Key Features
Analog display: The meter uses a pointer-style analog display for measurements.
Phase detection system: The internal circuitry includes a phase detection system for stable and accurate measurements.
Earth Resistance: It has three ranges: 10Ω, 100Ω, and 1000Ω.
AC Voltage: A dedicated range measures AC leakage voltage up to 30V to avoid measurement errors caused by stray currents.
Auxiliary grounding check: An LED indicator alerts the user if the auxiliary grounding resistance is too high ($>$10kΩ), which would compromise the measurement accuracy.
Power-saving design: A push-button switch is used to initiate measurements, which helps conserve battery life.

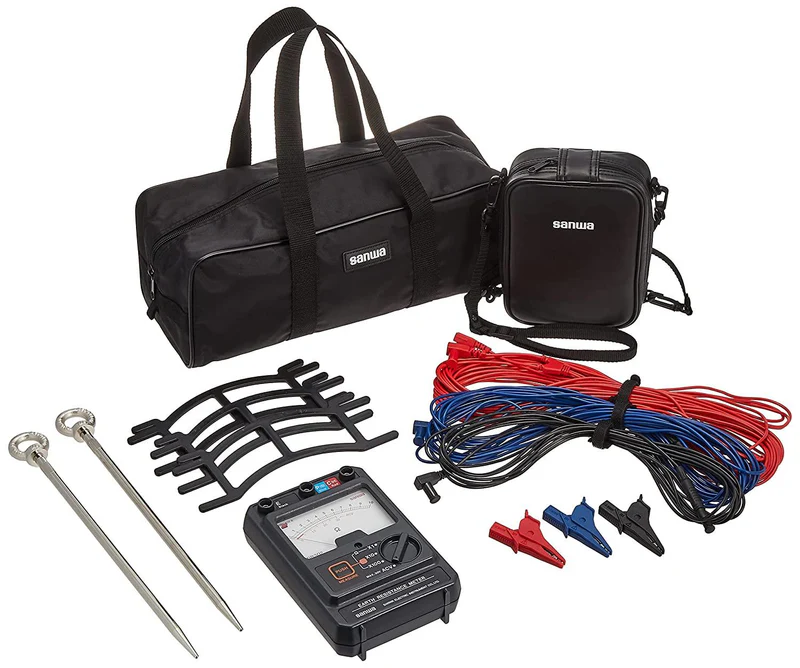

Three- and two-pole measurement: The device supports both three-pole (for high accuracy) and simplified two-pole testing methods.
