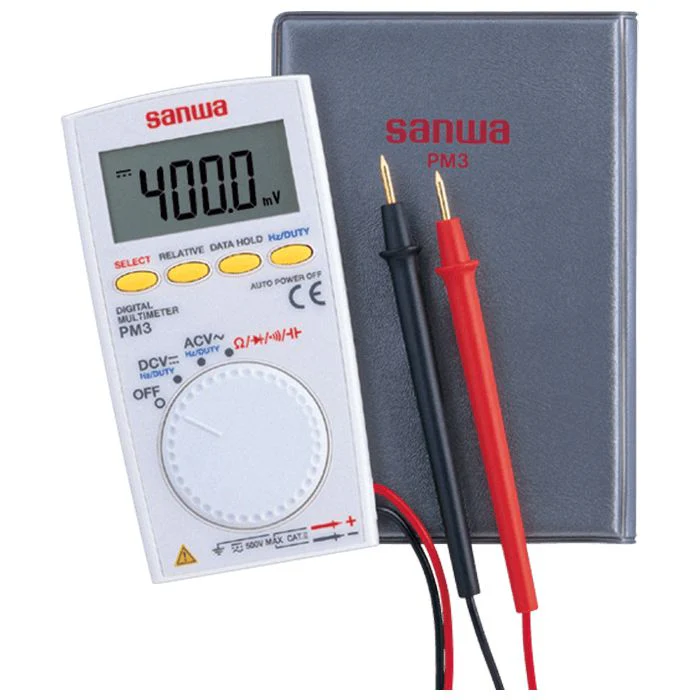

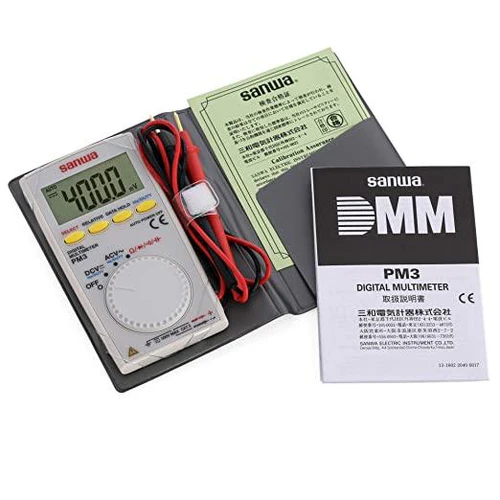

Sanwa PM3 Pocket Digital Multimeter with Folding Case

Sold By

NCIEM

(0 customer reviews)

Top Selling Products

Testo 270 Cooking Oil Tester

SAR2,000.00
Hioki DT4222: Digital Multimeter

SAR390.00
HTA102 Sound level Meter with Calibrator

SAR4,000.00
Megger MIT1525 - 15kV Insulation Resistance Tester

SAR30,000.00
RD C.A.T4+ and GENNY4 Underground Radiodetection Cable & Pipe Locator

SAR15,000.00
Flir E8-XT InfraRed Camera with MSX & WiFi

SAR15,000.00

Description Downloads Reviews

Description
The Sanwa PM3 is a pocket-sized digital multimeter designed for testing low-voltage circuits in electronics, small communications equipment, and household appliances. It is a thin, lightweight device that is highly portable, and some variants come with a protective leather or folding case.

Key Features
Display: It features a 3-3/4 digit, 4000-count digital LCD with a sampling rate of 3 times per second.
Compact design: The PM3 has a slim body, measuring just 8.5mm thick, making it easy to carry in a shirt pocket.
Convenient case: Many variants are supplied with a leather or folding case that protects the device from moisture and dust.
Safety rating: The meter is IEC61010-1 CAT. II 500V compliant, suitable for measurements on standard wall sockets and plug-in devices.
Power-saving functions: It includes an auto power-off function that activates after 15 minutes of inactivity to preserve battery life. This feature is also cancelable.
Data hold: A "Data Hold" feature allows you to freeze the current measurement on the screen.
Gold-plated leads: Some versions feature gold-plated test leads, which improve electrical contact.
Measurements: The PM3 can measure a variety of electrical parameters, including:
1. AC/DC Voltage (up to 500V)
2. Resistance (up to 40MΩ)
3. Capacitance (up to 200μF)
4. Frequency (AC sine wave only)
5. Duty cycle
6. Continuity with a buzzer
7. Diode testing
