Sanwa PM33a Pocket Size Hybrid Digital Multimeter + Clamp Meter

Sold By

NCIEM

(0 customer reviews)

Top Selling Products

Testo 270 Cooking Oil Tester

SAR2,000.00
Hioki DT4222: Digital Multimeter

SAR390.00
HTA102 Sound level Meter with Calibrator

SAR4,000.00
Megger MIT1525 - 15kV Insulation Resistance Tester

SAR30,000.00
RD C.A.T4+ and GENNY4 Underground Radiodetection Cable & Pipe Locator

SAR15,000.00
Flir E8-XT InfraRed Camera with MSX & WiFi

SAR15,000.00

Description Downloads Reviews

Description

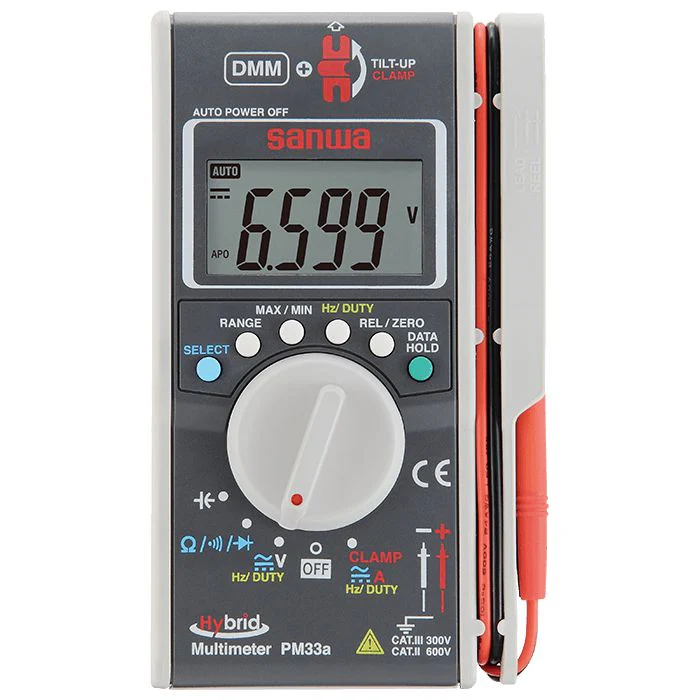

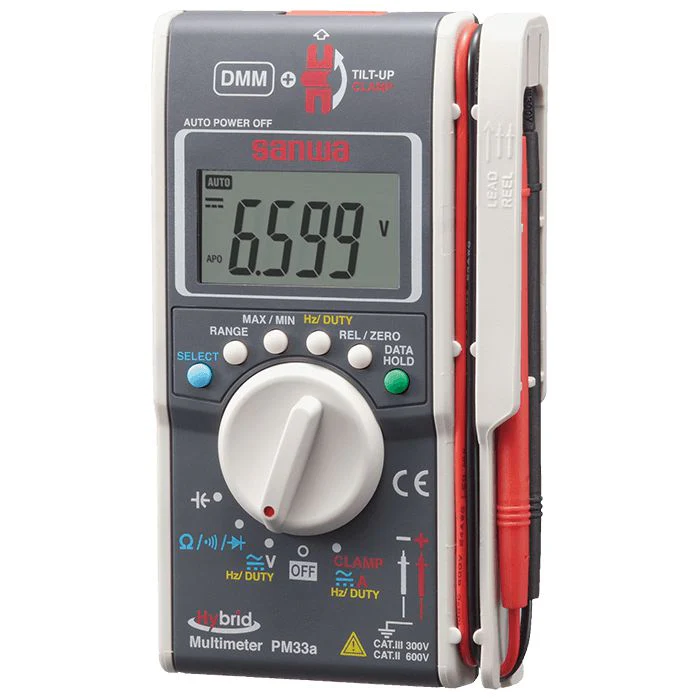

The Sanwa PM33a is a compact, pocket-sized hybrid digital multimeter (DMM) with a built-in open-end clamp sensor. It is designed for measuring low-voltage circuits in applications like home electrical appliances and small communication equipment.

Key Features
Hybrid functionality: The PM33a combines a digital multimeter and a clamp meter in a single, portable device.
Open-end clamp sensor: It features a thin, U-shaped clamp that is only 7 mm thick, allowing for easy current measurements in confined or hard-to-reach spaces.
AC and DC current measurement: Unlike many basic clamp meters, the PM33a can measure both AC and DC current up to 100A using the open clamp sensor.
Compact and lightweight: Weighing approximately 160g and measuring 130 x 75 x 19.9 mm, the meter is designed for lightweight portability.
Measurement functions: In addition to current, the PM33a performs standard DMM measurements including AC/DC voltage, resistance, capacitance, frequency, and duty cycle.
Safety rating: The meter is compliant with IEC61010 standards, rated CAT III 300V and CAT II 600V, ensuring user safety for measurements within its specified ranges.
Convenient features: Includes a data hold function to freeze readings, a MAX/MIN hold to capture the highest and lowest values, relative measurement mode, and an auto-power-off function.
Integrated probes: The test leads are permanently attached to the device, which makes it even more compact but means the leads are not replaceable.

Download

There have been no reviews for this product yet.
