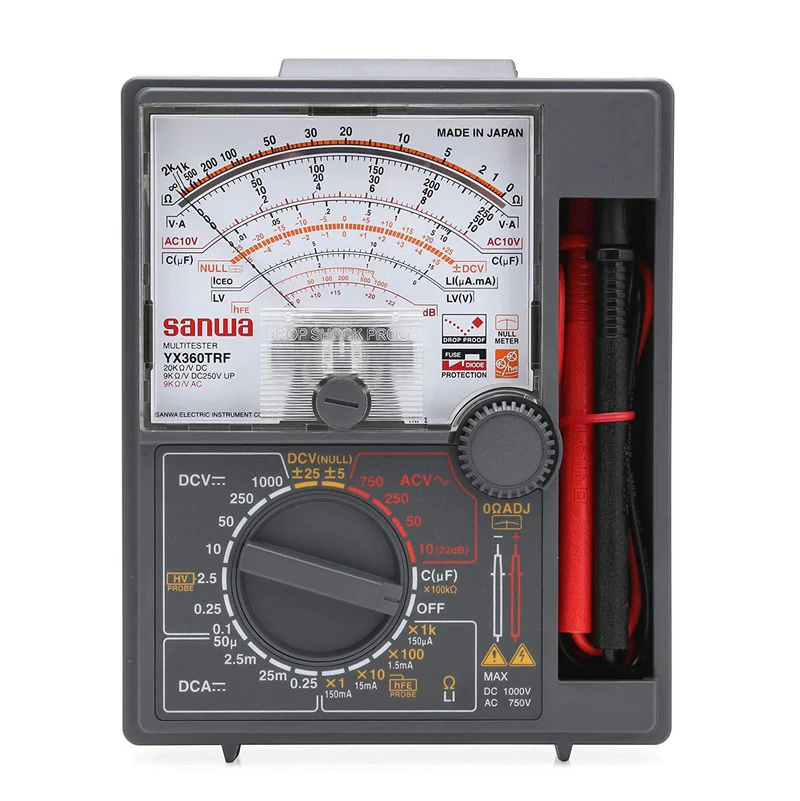

The Sanwa YX360TRF is a reliable, portable analog multimeter made in Japan, designed for measuring low-voltage circuits. Its durable, built-in protective case serves as a stand and includes a compartment for storing the test leads. The device is popular among technicians, hobbyists, and students for its shock-resistant design and broad functionality.

Key Features

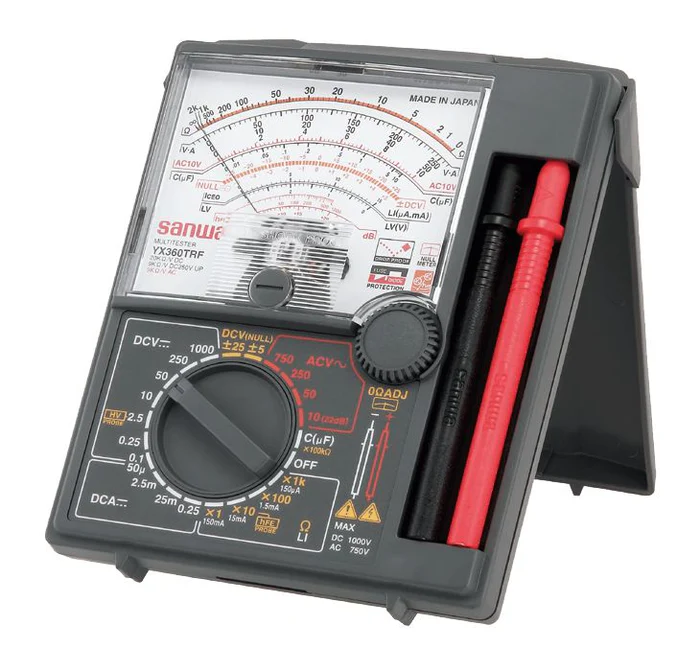

Built-in protective case: The tough, impact-resistant body cover protects the meter and folds back to function as a tilt stand for hands-free use. It also provides a storage space for the included test leads.
Taut-band meter: The meter uses a taut-band movement, which provides high sensitivity and accurate readings.
Mirror scale: The mirrored portion of the scale helps to reduce parallax error for more accurate readings.
Comprehensive measurements: The YX360TRF can measure a variety of parameters for low-voltage circuits, including:
1. DC Voltage (DCV): Up to 1000V.
2. AC Voltage (ACV): Up to 750V.
3. DC Current (DCA): Up to 0.25A.
4. Resistance: Up to 200MΩ.
5. Capacitance: Up to 10µF.
6. Load current (LI).
7. Signal power in dB.)
Advanced functionality:
1. Null (zero-center) meter: Allows for precise measurement of both positive and negative DC voltages.
2. Battery check: Features a dedicated function for testing battery voltage
3. hFE measurement: Provides graduations for measuring a transistor's DC current amplification factor (requires an optional probe).
Safety features: The multimeter is equipped with a fuse-protected circuit (250V/0.5A) to safeguard the user and the instrument.
Portability: At just 320g and compact dimensions (\(159.5\times 129\times 41.5\) mm), it is easy to carry for fieldwork.
Battery powered: Runs on two AA batteries.
