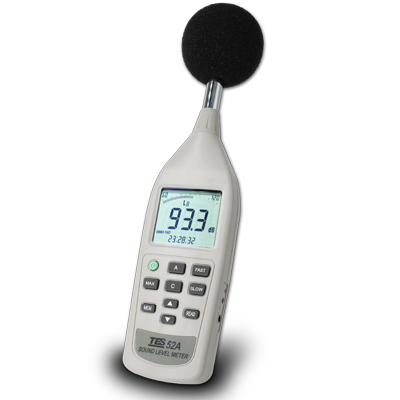

TES-52A Digital Sound Level Meter

Sold By

NCIEM

(0 customer reviews)

Top Selling Products

Testo 270 Cooking Oil Tester

SAR2,000.00
Hioki DT4222: Digital Multimeter

SAR390.00
HTA102 Sound level Meter with Calibrator

SAR4,000.00
Megger MIT1525 - 15kV Insulation Resistance Tester

SAR30,000.00
RD C.A.T4+ and GENNY4 Underground Radiodetection Cable & Pipe Locator

SAR15,000.00
Flir E8-XT InfraRed Camera with MSX & WiFi

SAR15,000.00

Description Downloads Reviews

Description
The TES-52A is a handheld digital sound level meter manufactured by TES Electrical Electronic Corp. It is a Type 2 meter, meaning it's suitable for general-purpose sound measurements in various environments.

Key Features
Measurement range: It can measure sound levels from 30 to 130 decibels (dB), with some variations reporting a range starting from 26 dB.
Resolution: Provides high-resolution readings at 0.1 dB.
Accuracy: Offers an accuracy of ±1.0 dB (at 94 dB @1KHz).
Frequency weighting: Features both 'A' and 'C' frequency weighting, allowing for measurements that mimic the human ear's response to sound and for measuring overall noise levels.
Time weighting: Includes selectable 'Fast' and 'Slow' time weighting to measure sounds with different time profiles.
Data storage: Can manually store and recall up to 99 sets of measurements.
Output: Equipped with AC/DC output jacks for connecting to external devices like recorders.
Display: A 4-digit LCD shows the sound level, and some versions also have an analog bar graph display.
Standard compliance: Meets the Type 2 standard under both IEC61672-1: 2013 and ANSI S1.4.

Download

There have been no reviews for this product yet.
