Testo 417 Set 2 Vane Anemometer Set

(0 Reviews)

Sold By:
Inhouse product

Price:
SAR2,790.00 /Unit

Quantity:
(2 available)

Total Price:
Share:
DESCRIPTION:

The measurement of air flow velocity and the correct calculation of volume flow at ventilation outlets can present a challenge. The turbulence created there plus differing flow directions make correct measurement more difficult. Air turbulence is particularly strong at swirl outlets, which makes even higher measuring inaccuracies likely. In conjunction with the measurement funnels and the testovent 417 volume flow straightener, the testo 417 vane anemometer is ideal for your flow measurements at ventilation grilles and plate outlets. This ensures simple testing of incoming/outgoing air, such as in the controlled ventilation of living spaces.

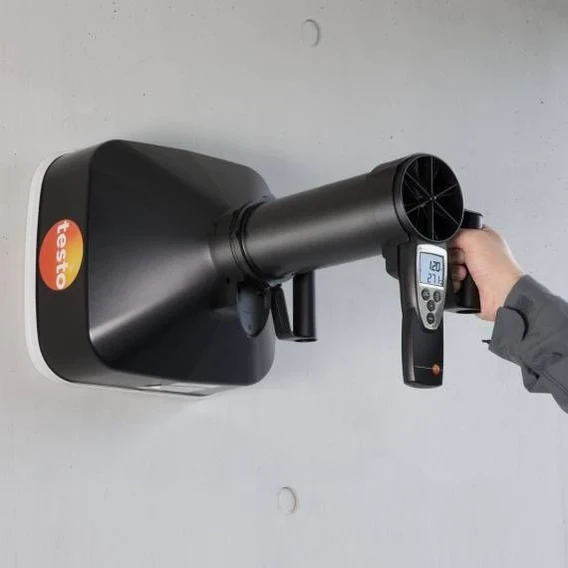

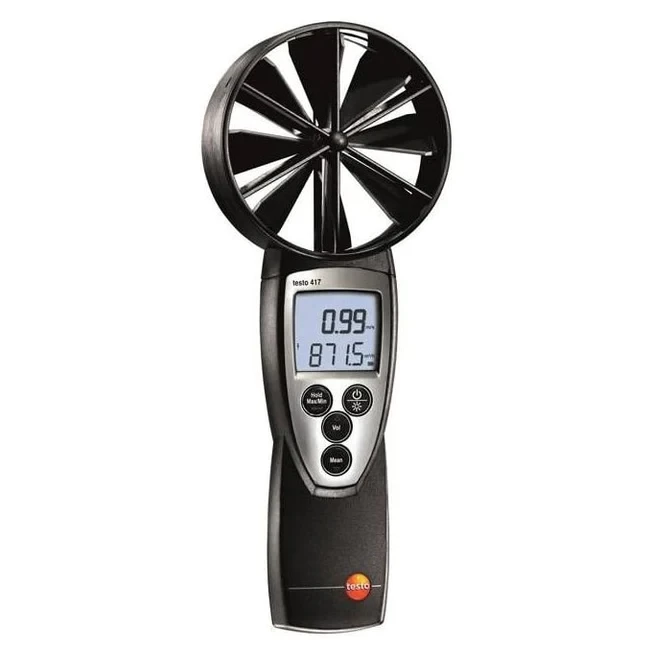

The testo 417 vane anemometer with integrated 100 mm vane measures flow velocity, volume flow and temperature at the same time. The measurement funnels included in the set enable precise volume flow measurement at ventilation outlets. With the volume flow straightener, you can achieve pinpoint accuracy even at swirl outlets. The calculated volume flow is shown directly on the vane anemometer's display. In addition, you can switch to the current temperature reading. The direction of flow, i.e. inflow or outflow, is also shown on the display. Timed and multi-point mean calculations provide an indicator of the average volume flow, flow velocity and temperature reading. The vane anemometer shows min./max. values and the hold function enables the current readings to be retained. The illuminated display allows you to carry out your measurements even in a dark environment.

TECHNICAL DATA:
Temperature - NTC
● Measuring Range: 0 to +50 °C
● Accuracy: ±0.5 °C
● Resolution: 0.1 °C
Velocity - Vane
● Measuring Range: +0.3 to +20 m/s
● Accuracy: ±(0.1 m/s + 1.5 % of mv)
● Resolution: 0.01 m/s
Volume Flow
● Measuring Range: 0 to +99999 m³/h
                                     0 to +440 m³/h (testo 417 in combination with funnel set (0563 4170))
                                     0.1 to +200 m³/h , preferred 0,1 to 100 m³/h (testo 417 in combination with funnel & flow straightener (0554 4172))
● Resolution: 0.1m³/h (0 to +99.9 m³/h)
                        1m³/h (+100 to +99999 m³/h)
General Technical Data
● Weight: 230 g
● Dimensions: 277 x 105 x 45 mm
● Operating Temperature: 0 to +50 °C
● Product / Housing: ABS
● Bettery Type: 9V block battery, 6F22
● Bettery Life: 50 h
● Storage Temperature: -40 to +70 °C
