Testo 440 16mm Vane Kit

Sold By

NCIEM

(0 customer reviews)

Top Selling Products

Testo 270 Cooking Oil Tester

SAR2,000.00
Hioki DT4222: Digital Multimeter

SAR390.00
HTA102 Sound level Meter with Calibrator

SAR4,000.00
Megger MIT1525 - 15kV Insulation Resistance Tester

SAR30,000.00
RD C.A.T4+ and GENNY4 Underground Radiodetection Cable & Pipe Locator

SAR15,000.00
Emerson 475 FP-1-E-KL-U-GMT-S HART Field Communicator, Foundation Field Bus, Bluetooth , ATEX

SAR30,000.00

Description Downloads Reviews

DESCRIPTION:

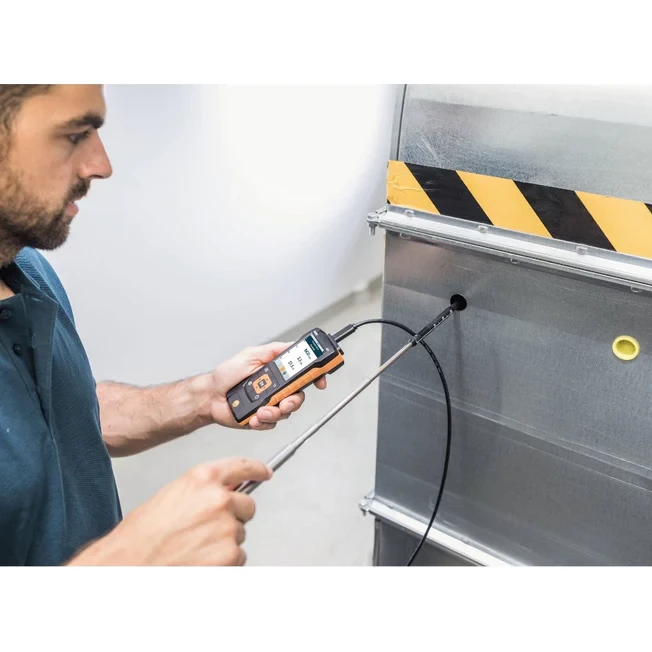

Kit for carrying out measurements in ventilation ducts. The testo 440 air velocity and IAQ measuring instrument and the vane probe (Ø 16 mm) are safely stowed away in the case. The testo 440 multifunction measuring instrument and the vane probe feature an intelligent calibration concept, ease of use and maximum convenience for the adjustment of air-conditioning and ventilation systems. the testo 440 combines a compact hand-held measuring instrument with intuitive measurement menus and a wide selection of air velocity and IAQ probes (please order separately). the volume flow is precisely calculated thanks to convenient input of the size and geometry of the duct cross-section. Timed and multi-point mean calculation, average volume flow, current reading and minimum/maximum values are displayed.

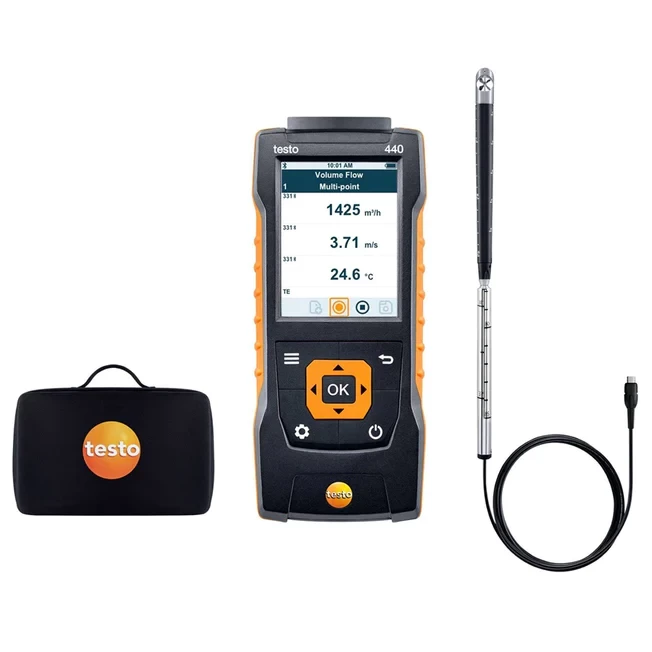

EQUIPMENT INCULDES:

● Testo 440 air velocity and IAQ measuring instrument, 3x AA batteries, USB cable and calibration protocol
● Vane probe (Ø 16 mm) with fixed cable (cable length 1.7 m), including telescope (can be extended to 0.85 m) and calibration protocol
● Basic case for testo 440 and 1 probe

TESTO 440 AIR VELOCITY AND IAQ MEASURING INSTRUMENT:

Use the testo 440 air velocity and IAQ measuring instrument in combination with high-quality probes to measure and store all air velocity and IAQ parameters (please order probes separately). Up to 3 probes can be connected simultaneously: a Bluetooth probe, a wired probe and a temperature probe with type K thermocouple connector. Automatic probe detection and clearly structured measurement menus guarantee simple operation and will make your day-to-day work easier.

TECHNICAL DATA:

Temperature - NTC
● Measuring Range: -40 to +150 °C
● Accuracy: ±0.4 °C (-40 to -25.1 °C)
±0.3 °C (-25 to +74.9 °C)
±0.4 °C (+75 to +99.9 °C)
±0.5 % of mv (Remaining Range)
● Resolution: 0.1 °C
Temperature - TC Type K (NiCr-Ni)
● Measuring Range: -200 to +1370 °C
● Accuracy: ±(0.3 °C + 0.3 % of mv)
● Resolution: 0.1 °C
General Technical Data
● Weight: 250 g
● Dimensions: 154 x 65 x 32 mm
● Operating Temperature: -20 to +50 °C
● Storage Temperature: -20 to +50 °C
● Bettary Type: 3 AA mignon 1.5 V
● Bettery Life: 12 h (typically vane measurement)
● Interface: Bluetooth®, USB
● Connectable Probes: 1x digital probe with cable or 1x Temperature NTC TUC, 1x digital Bluetooth probe or testo Smart Probe, 1x Temperature TC Type K.

Download
