Testo 550i Smart Kit App Controlled Digital Manifold With Wireless Clamp Temperature Probes (NTC)

Sold By

NCIEM

(0 customer reviews)

Top Selling Products

Testo 270 Cooking Oil Tester

SAR2,000.00
Hioki DT4222: Digital Multimeter

SAR390.00
HTA102 Sound level Meter with Calibrator

SAR4,000.00
Megger MIT1525 - 15kV Insulation Resistance Tester

SAR30,000.00
RD C.A.T4+ and GENNY4 Underground Radiodetection Cable & Pipe Locator

SAR15,000.00
Flir E8-XT InfraRed Camera with MSX & WiFi

SAR15,000.00

Description Downloads Reviews

DESCRIPTION:

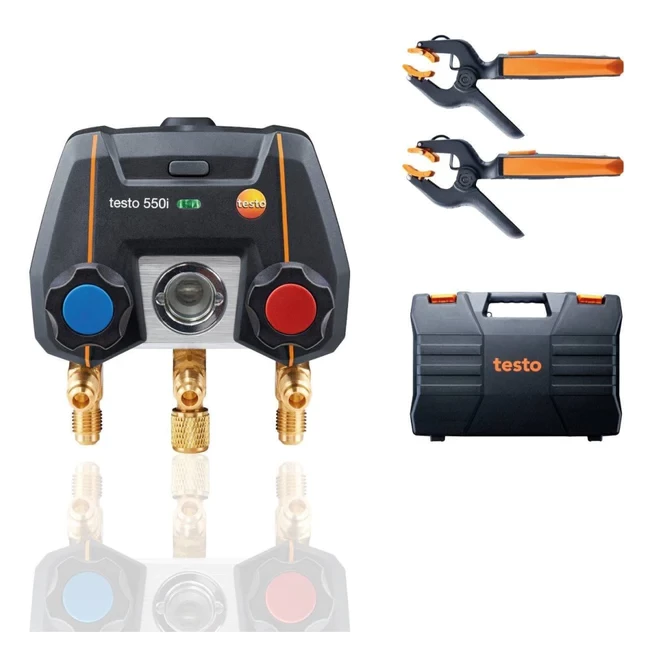

kit for app-controlled, wireless measurements and digital documentation on your smartphone. You will get the testo 550i app controlled digital manifold with Bluetooth, 2-way valve block and sturdy hook, two testo 115i wireless clamp thermometers (Bluetooth, NTC) and a robust transport case. For other wireless measurements, the optional Testo Smart Probes for temperature, humidity and vacuum are the perfect addition. You’ll be ideally equipped to carry out your measuring tasks on refrigeration and air conditioning systems and also heat pumps.
EQUIPMENT INCLUDES
● Testo 550i digital 2-way manifold including batteries (3x AAA) and calibration protocol
● 2x testo 115i wireless Bluetooth clamp thermometers
● Transport case
● Testo Smart App (free download)
● Instruction manuals

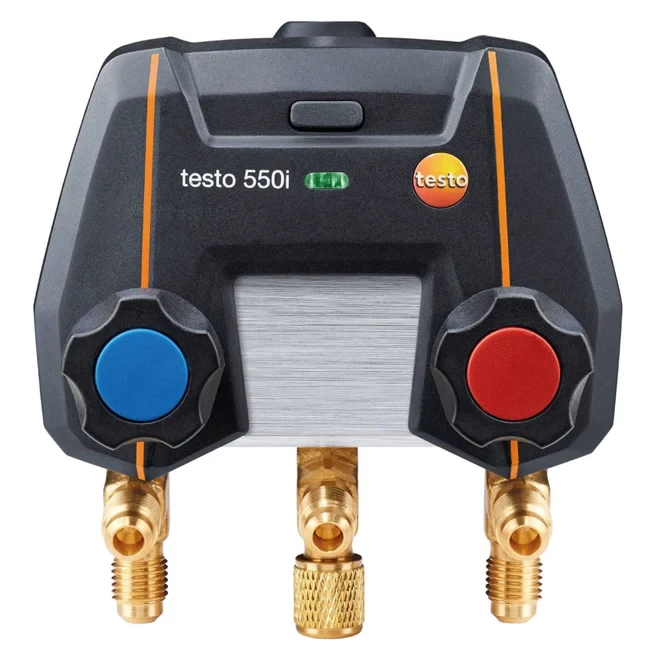

TESTO 550I - APP CONTROLLED DIGITAL MANIFOLD WITH BLUETOOTH AND 2-WAY VALVE BLOCK
From the measurement itself through to the documentation – thanks to the app, you can have your everyday servicing and maintenance work on your smartphone or tablet. The testo 550i digital manifold is equipped with Bluetooth, 2-way valve block and a sturdy hook, and can be fully controlled via app and smartphone or tablet for flexible, fast measurements and digital documentation.

TECHNICAL DATA:

Pressure measurement
● Measuring Range: -1 to +60 bar
● Accuracy: ±0.5 % fs
● Resolution: 0.01 bar
● Probe Connection: 3 x 7/16" – UNF
● Overload Rel. (high pressure): +65 bar
General Technical Data
● Weight: 595 g
● Dimensions: 77 x 109 x 63 mm
● Operating Temperature: -10 to +50 °C
● Storage Temperature: -20 to +60 °C
● Radio Range: 150 m
● Bettary Type: 3 AAA micro batteries
● Bettery Life: 130 h
● Data Transfer: Bluetooth®
● System Requirements: Requires iOS 11.0 or newer, Android 6.0 or newer and Mobile end device with Bluetooth 4.0
● Protection Class: IP54
● Refrigerants In Instrument: R407H; R23; R290; R1234yf; R442A; R134a; R123; R452B; R438A; R421A; R453a; R401B; R1233zd; R410A; R407A; R407C; R452A; R401A; R422C; R427A;R422B; R424A; R125; R414B; R404A; R408A; R448A; R422D; R12; R114; R421B; R449A; R409A; R420A; R444B; R32; R454A; R124; R402A; R450A; R407F; R416A; R13; R437A; R1234ze; R454B; R402B; R22; R434A; R454C; R455A; R458A; R500; R502; R503; R507; R513A; R600a; R718 (H₂O); R744 (CO₂)
● Refrigerants Update Via App: R11; FX80; I12A; R1150; R1270; R13B1; R14; R142B; R152A; R161; R170; R227; R236fa; R245fa; R401C; R406A; R407B; R407D; R41; R411A; R412A; R413A; R417A; R417B; R417C; R422A; R426A; R508A; R508B; R600; RIS89; SP22

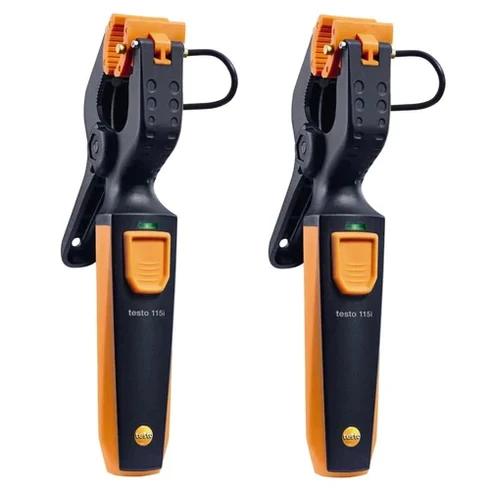

TESTO 115I - CLAMP THERMOMETER OPERATED VIA SMARTPHONE
Professional measuring technology is now mobile and when it comes to measuring temperature at widely spaced measuring points in particular. The testo 115i makes things a lot easier – thanks to wireless connection to your smartphone or tablet. When used in conjunction with the testo 549i pressure measuring instrument, individual refrigeration system parameters can also be calculated.
TECHNICAL DATA
Temperature - NTC
● Measuring Range: -40 to +150 °C
● Accuracy: ±1.3 °C (-20 to +85 °C)
● Resolution: 0.1 °C
General Technical Data
● Weight: 127.4 g
● Dimensions: 183 x 90 x 30 mm
● Product / Housing Meterial: Plastic
● Operating Temperature: -20 to +50 °C
● Storage Temperature: -20 to +60 °C
● Radio Range: 100 m
● Bettary Type: 3 AAA micro batteries
● Bettery Life: 150 h
● Data Transfer: Bluetooth®
● System Requirements: Requires iOS 11.0 or newer, Android 6.0 or newer and Mobile end device with Bluetooth 4.0

Download

There have been no reviews for this product yet.
