DESCRIPTION:

For refrigeration engineers: Compact kit containing testo 549i high-pressure gauge and testo 115i clamp thermometer (two of each). Used in conjunction with your smartphone/tablet, the kit is ideal for servicing, troubleshooting and installing air conditioning and refrigeration systems. The testo Smart App makes your work easier and more efficient. Over 90 stored refrigerants, automatic calculation of superheating/subcooling, emailing of measurement data reports as PDF or Excel files.

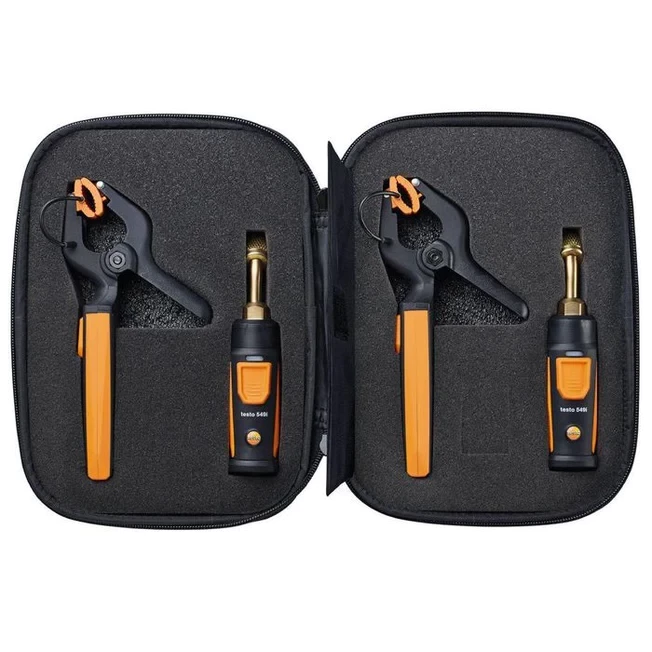

EQUIPMENT INCLUDES:

● 2x Testo 549i high-pressure measuring instrument with smartphone operation, including batteries and calibration protocol
● 2x Testo 115i clamp thermometer with smartphone operation, including batteries and calibration protocol
● Testo Smart Case “Refrigeration”, including foam insert

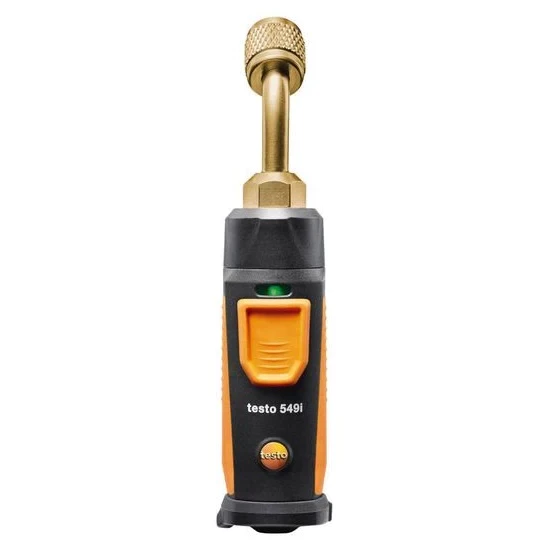

TESTO 549I - HIGH-PRESSURE GAUGE OPERATED VIA SMARTPHONE

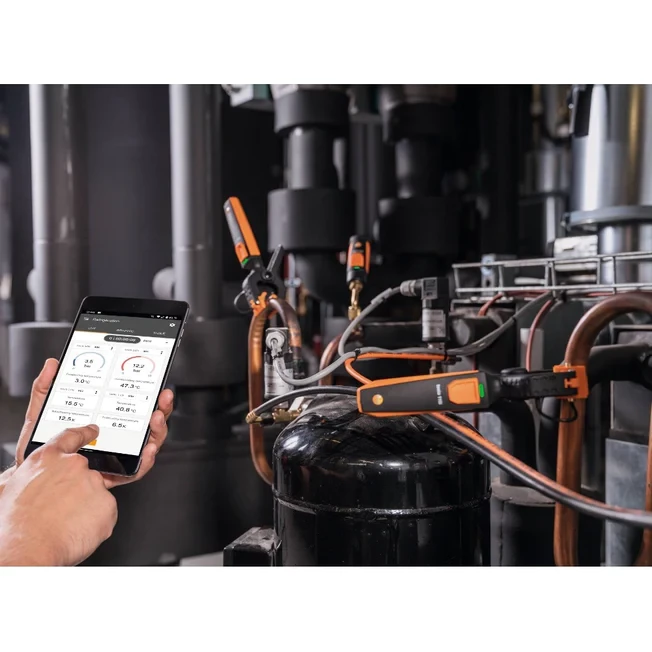

Testo offers you greater mobility when measuring and used in conjunction with your smartphone or tablet. The handy testo 549i high-pressure gauge is suitable for carrying out wireless servicing and troubleshooting on air conditioning and refrigeration systems, as well as for installing them. The measuring instrument can be quickly and easily attached directly to the pressure connection. The testo 549i makes it considerably easier to work on pressure connections that are a long distance apart, thanks to wireless connection to a smartphone or tablet.
Also practical, since no hoses are needed for the measurements, no refrigerant is lost, or only a very small quantity. When used in conjunction with the testo 115i clamp thermometer, individual refrigeration system parameters can also be calculated.

TECHNICAL DATA:

Temperature - NTC
● Measuring Range: -1 to +60 bar
● Accuracy: ±0.5 % of fsv
● Resolution: 0.01 bar
● Probe Connection: 7 / 16 " - UNF
● Overload Rel. (high pressure): +65 bar
General Technical Data
● Weight: 156.6 g
● Dimensions: 125 x 32 x 31 mm
● Product / Housing Meterial: Plastic
● Operating Temperature: -20 to +50 °C
● Storage Temperature: -20 to +60 °C
● Radio Range: 100 m
● Bettary Type: 3 AAA micro batteries
● Bettery Life: 130 h
● Data Transfer: Bluetooth®
● System Requirements: Requires iOS 11.0 or newer, Android 6.0 or newer and Mobile end device with Bluetooth 4.0

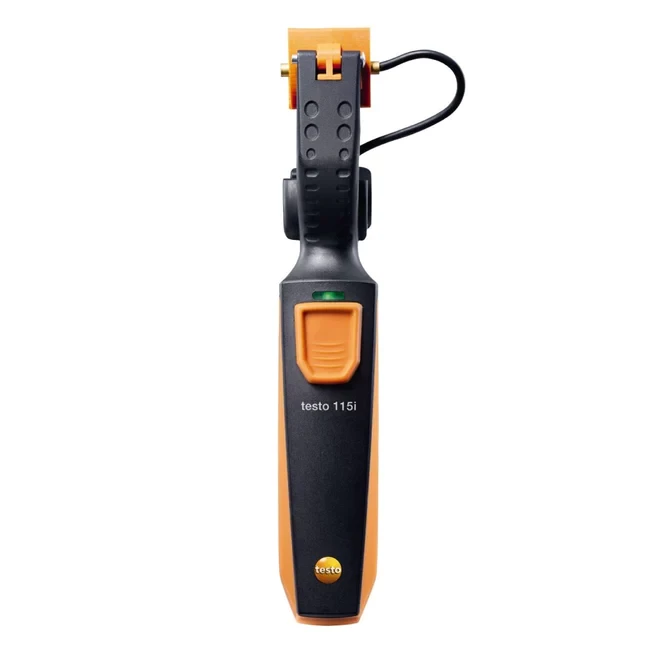

TESTO 115I - CLAMP THERMOMETER OPERATED VIA SMARTPHONE
Professional measuring technology is now mobile and when it comes to measuring temperature at widely spaced measuring points in particular. The testo 115i makes things a lot easier – thanks to wireless connection to your smartphone or tablet. When used in conjunction with the testo 549i pressure measuring instrument, individual refrigeration system parameters can also be calculated.
