UT219PV Professional AC/DC clamp meter

Sold By

NCIEM

(0 customer reviews)

Top Selling Products

Testo 270 Cooking Oil Tester

SAR2,000.00
Hioki DT4222: Digital Multimeter

SAR390.00
HTA102 Sound level Meter with Calibrator

SAR4,000.00
Megger MIT1525 - 15kV Insulation Resistance Tester

SAR30,000.00
RD C.A.T4+ and GENNY4 Underground Radiodetection Cable & Pipe Locator

SAR15,000.00
Emerson 475 FP-1-E-KL-U-GMT-S HART Field Communicator, Foundation Field Bus, Bluetooth , ATEX

SAR30,000.00

Description Downloads Reviews

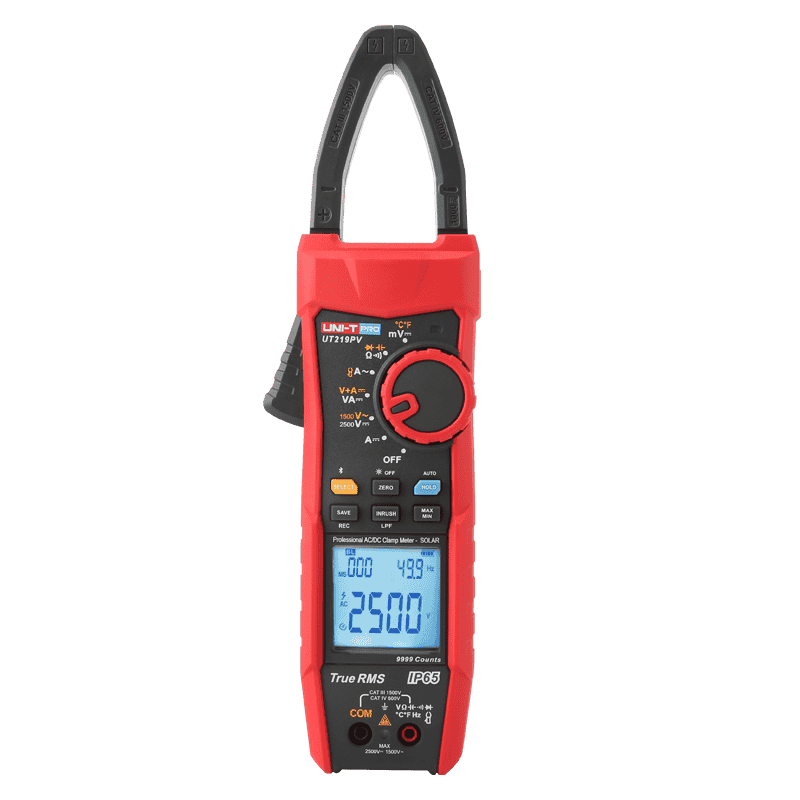

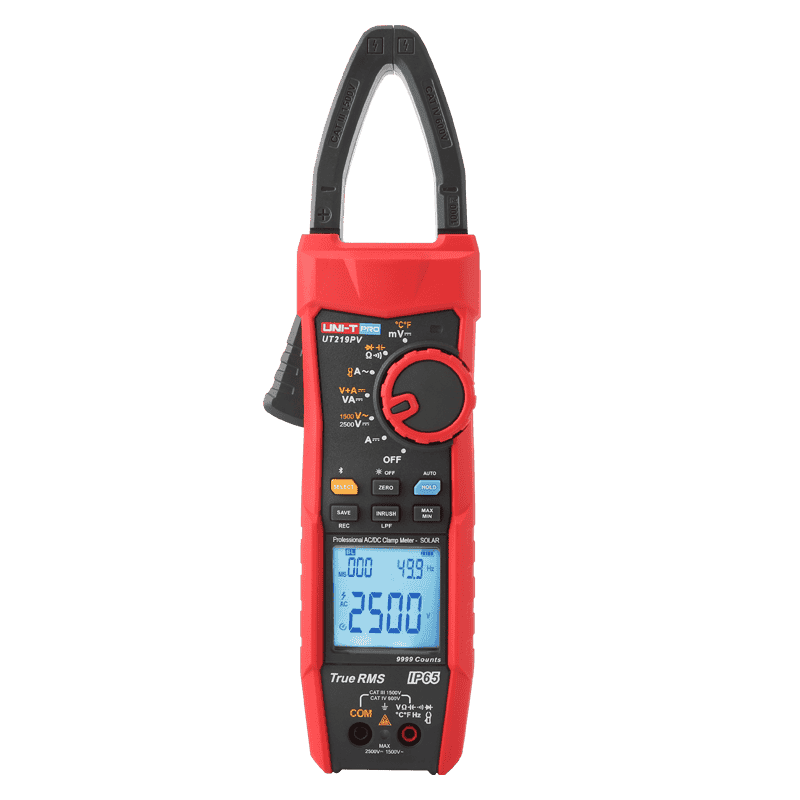

Description: The UT219PV is an advanced AC/DC clamp meter specially designed for high-voltage photovoltaic environments. It offers exceptional accuracy and performance, with a wide range of features. With its automatic range selection and a clear display capable of showing up to 9999 digits, this clamp meter allows for precise measurements of AC/DC voltage, current, low-pass filtered voltage/current, surge current, peak current, DC power (using an external flexible clamp head), resistance, circuit continuity, diodes, capacitance, and temperature. Its versatility extends beyond photovoltaic applications, as it can also be used in other high-voltage settings like energy storage systems, uninterruptible power supplies (UPS), and large motors.

Features of UT219PV Professional AC/DC Clamp Meter
Certifications (UT219PV only): CE, RoHS, cETLus

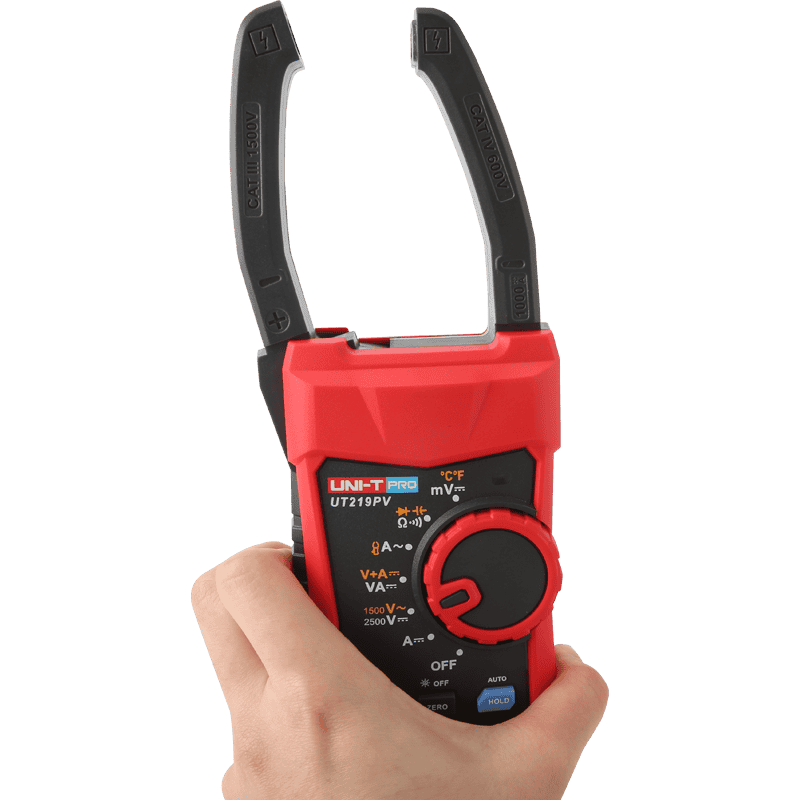

● 35mm Ultra-thin Jaw: suitable for inverter or combiner box
● Voltage measurement: AC1500V/DC2500V
● Current measurement: AC/DC 1000A
● Power DC: 2500KVA
● External clamp sensor: UT-CS09D(AC 3000A)
● Solar panel polarity indication: when <-10 DCV, Audible & Visual alarm
● Bluetooth APP
● Auto backlight & Auto power off
● Certificates：CE (EMC, LVD), cETLus, RoHS
● Safety rating：CAT III 1500V/ CAT IV 600V
● IP65

Download

There have been no reviews for this product yet.
