CA6030 RCD Tester

Sold By

NCIEM

(0 customer reviews)

Top Selling Products

Testo 270 Cooking Oil Tester

SAR2,000.00
Hioki DT4222: Digital Multimeter

SAR390.00
HTA102 Sound level Meter with Calibrator

SAR4,000.00
Megger MIT1525 - 15kV Insulation Resistance Tester

SAR30,000.00
RD C.A.T4+ and GENNY4 Underground Radiodetection Cable & Pipe Locator

SAR15,000.00
Flir E8-XT InfraRed Camera with MSX & WiFi

SAR15,000.00

Description Downloads Reviews

KEY FEATURES

• Direct, safe connection to installation mains socket
• Reliable measurements due to automatic permutation of L and N inputs if conductors are reversed at socket connection
• Automatic installation voltage and frequency measurement
• Tests standard, selective, A and AC RCDs
• 5 fixed ranges 10/30/100/300/500 mA + 1 adjustable range from 6 to 650 mA
• RCD non-trip test / trip time measurement (pulse or ramp mode) and exact trip current (ramp mode)
• Power-on earth measurement: earth loop and 1P earth
• Current and leakage current measurement with clamp (option)
• Phase rotation test (2 or 3-wire)
• Cat.III 600 V
• Programmable alarms, date-stamped recording of measurement readings, data printout using standard printer, direct transfer of data to PC (transfer software included as standard)

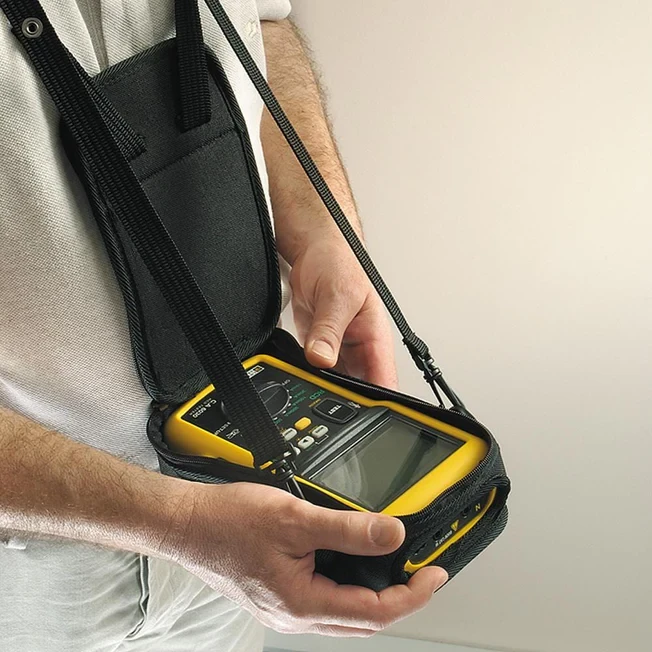

• Large backlit display / "hands-free" bag
• Battery-powered - battery life: 2,000 tests
• Dimensions: 270 x 250 x 60 mm; weight: 900 g

Download

There have been no reviews for this product yet.
